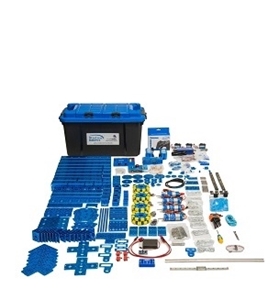

The WorldSkills Competition 2022 Special Edition Mobile Robotics Collection by Studica is the authorized collection for the WorldSkills Mobile Robotics Competition. Featuring the Studica VMX Robotics Controller for WorldSkills, the Titan Quad Motor Controller and Servo Power Block. This comprehensive Collection also includes electronics, accessories, motors, servos, mounts, U-Channel, mounting plates, flat brackets, irregular brackets, and flat beams. You'll also find gears, sprockets, pulleys, belts, axles, slides, rack & pinion, wheels, bushings, bearings, coupling, collars, spacers, screws, nuts, and standoffs.

Includes Everything You Need (Over 1500 components).

Download brochure and BOM

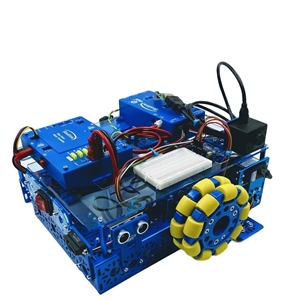

The Autonomous Mobile Robotics Workshop Kit is used in the classroom for teaching, testing and doing research in Autonomous Mobile Robotics. It also includes each of the essential components referenced in the WorldSkills Mobile Robotics training material.

• Parts List (PDF)

The FTC Drive Base Kit  is available for FIRST teams only. This special offer is only available for a limited time and to qualify you must provide us with your FTC team name and number. This drive base kit when purchased individually is valued at $389USD.

Includes,

• 2 - 432mm U-Channel  76010
• 2 - 192mm U-Channel  76015
• 4 - Motor Mount Plate  76140
• 2 - End Piece Plate (2pak)  76143-2
• 1 - 6mm x 96mm D-Shaft (2 pack)  76161-6
• 2 - M3 x 10mm Button Head Cap Screw (pack of 50)  76203-50
• 4 - 30 Tooth Bevel Gear (2 Pack)  76219-2
• 1 - Flange Bearing 6mm ID, 14mm OD, 15mm Flange (12 pack)  76302-12
• 1 - Collar 6mm ID D-Shaft, 12mm OD (6 pack)  76304-6
• 1 - Shaft Spacer Plastic 6mm ID x 10mm OD x 1mm L (24 pack)  76305-24
• 1 - Mecanum Wheel B Set (2 left, 2 right, 100mm, Bearings, w/6mm Hub)  76243

Note: You can use any FIRST legal motor with this set.

FTC Starter Kit offers the ability to create up to three different basic bot designs by Studica.

The 2021 Starter Kit features many products to allow for a competitive robot to be built by a team.

The Studica Linear Servo RC Actuator 50-200 is a new Servo motor which has a stroke of 50mm. It works the same way as the any standard rotary servo but in a linear movement. It uses the same 2.54mm Dupont 3-Pin Female wire connector and can be controlled with an RC receiver or any device that controls a servo. Includes mounting brackets.

The Studica 360 Degree LiDAR is a 2D LiDAR that rotates 360 degrees to achieve high accuracy, stable performance, high-frequency and high-precision distance measurement. It's ideal for robot navigation and obstacle avoidance.

Lidar Step File
Lidar Control Unit Step File

The Studica Low Profile U Channel is 3mm thick and has a 48mm x 14mm profile. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.

Specifications:

• Material: 6061-T6 Aluminum
• Thickness - 3mm
• Height - 14mm
• Width - 48mm
• Length - 192mm
• Hole pattern - 4
• Step File

The 120 Degree Bracket is perfect for connecting two channel pieces at 120 degrees from each other. Each side is 48mm wide to fit perfectly on the channel. Use three brackets with 3 channel pieces to make 3 wheeled robots. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.

Specifications:

• Material - Anodized 6061-T6 Aluminum
• Thickness - 3mm
• Step File

The 135 Degree Bracket is perfect for connecting two channels pieces at 45 degrees from each other. Each side is 48mm wide to fit perfectly on the channel. Used for intake systems, elevator systems, or structure where 45 degrees is required. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.

Specifications:

• Material - Anodized 6061-T6 Aluminum
• Thickness - 3mm
• Step File

The 90 Degree Bracket is perfect for connecting two channels pieces at 90 angle from each other. Each side is 48mm wide to fit perfectly on the channel. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.

Specifications:

• Material - Anodized 6061-T6 Aluminum
• Thickness - 3mm
• Step File

The 100mm (4 inch)  Double Plastic Omni Wheel provides rotational and sideways 360° maneuverability.  Great for omni directional movement and rotation, easy direction control and tracking, and for fast turning,

Specifications:

• Diameter:   100mm (4")
• Axial width:  16mm
• Hub:    6mm (included)
• Number of plate:  2
• Number of roller: 18
• Body material:    Nylon
• Roller material:   Rubber
• Roller diameter:  19mm
• Net weight:          275g
• Load capacity:    20kg
• Step File

Studica 100mm Aluminum Mecanum Wheel Left and Right Slant w/6mm Hub and  steel ball bearings. With blue aluminium frame and yellow rollers.  Wheel comprised of 9 yellow rollers is able to move in any direction. Rollers are set at 45° to the axis of rotation of the wheel.  Rollers are mounted with steel ball bearings,making roll more fluent.

 Wheel Specifications:

• Diameter:                                                100mm
• Width:                                                       50m
• Number of Rollers:                                 9
• Number of Plates each wheel:             2
• Body material:                                        Aluminium alloy
• Roller material:                                       Polyethylene (PE) and Polypropylene (PP)
• Spacer Material:                                     Nylon
• Length of roller:                                     19mm
• Weight:                                                    354gm

Hub Specifications:

• Inside Diameter:                                    6mm
• Outside Diameter :                                22mm
• Bore Length:                                          15mm
• Weight:                                                   32g

The Studica Adjustable Angle Flat Bracket is perfect for connecting two channels pieces together at various angles. It is 3mm thick and as with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.

Specifications:

• Material - Anodized 6061-T6 Aluminum
• Thickness - 3mm
• Width - 48mm
• Length - 96mm
• Step File

The 100mm Drive Wheel (4") can be used as a simple wheel providing good traction on carpet and tile flooring. They can also be used for intake systems.


Use with 1/2" hex shaft of use 6mm Shaft Hub to use connect 6mm D-Shaft Axles.

Specifications:

• Diameter:   100mm (4")
• Axial width:  12.5mm
• Hub:  1/2" Inner Hex
• Inner Material: Molded Plastic in Yellow
• Outer Material: TPU Polyurethane in Blue
• Outer Material Durometer: 50A
• Weight: 0.068kg
• Step File

The 100mm (4") Flex Wheel can be used for intake systems and conveyors.

Specifications:

• Diameter:   100mm (4")
• Axial width:  25mm
• Hub:  1/2" Inner Hex
• Inner Material: Molded Plastic in Yellow
• Outer Material: TPU Polyurethane in Green
• Outer Material Durometer: 35A
• Weight: 0.038kg
• Step File

• Diameter: 110mm
• Width: 45mm
• Inner diameter of wheel frame: 75mm
• Hexagon connector: 12mm
• Unit weight: 128g
• 6mm axle adopter

Used with Studica Omni and Mecanum wheels for a strong axel hold.

Specifications:

• Material: 6061-T6 Aluminum
• Color: Blue
• Step File
