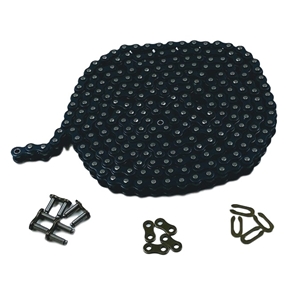

The #25 Chain with Master Links  set works with any of the Studica sprockets and other #25 sprockets. It includes 4 master links for creating various lengths of the chain.

Specifications:

• #25 Steel roller chain
• 4 master connecting links
• Length: 150cm
• Use with 24 Tooth, 32 Tooth, 40 Tooth or 48 Tooth sprockets

The XL series belt is compatible with the 6mm, 10 tooth XL pulley.

Specifications:

• Material: Neoprene with Fiberglass cords
• Length: 1 meter
• Width: 9mm
• Closed loop

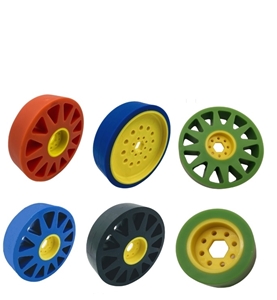

The 100mm Drive Wheel (4") can be used as a simple wheel providing good traction on carpet and tile flooring. They can also be used for intake systems.


Use with 1/2" hex shaft of use 6mm Shaft Hub to use connect 6mm D-Shaft Axles.

Specifications:

• Diameter:   100mm (4")
• Axial width:  12.5mm
• Hub:  1/2" Inner Hex
• Inner Material: Molded Plastic in Yellow
• Outer Material: TPU Polyurethane in Blue
• Outer Material Durometer: 50A
• Weight: 0.068kg
• Step File

The 100mm (4") Drive Wheel can be used as a simple wheel providing good traction on carpet and tile flooring. They can also be used for intake systems.

Use with 1/2" hex shaft of use 6mm Shaft Hub to use connect 6mm D-Shaft Axles.

Specifications:

• Diameter:   100mm (4")
• Axial width:  25mm
• Hub:  1/2" Inner Hex
• Inner Material: Molded Plastic in Yellow
• Outer Material: TPU Polyurethane in Blue
• Outer Material Durometer: 50A
• Weight: 0.068kg
• Step File

The 100mm (4") Flex Wheel can be used for intake systems and conveyors.

Specifications:

• Diameter:   100mm (4")
• Axial width:  25mm
• Hub:  1/2" Inner Hex
• Inner Material: Molded Plastic in Yellow
• Outer Material: TPU Polyurethane in Green
• Outer Material Durometer: 35A
• Weight: 0.038kg
• Step File

The 100mm (4") Flex Wheel can be used for intake systems and conveyors.

Specifications:

• Diameter:   100mm (4")
• Axial width:  25mm
• Hub:  1/2" Inner Hex
• Inner Material: Molded Plastic in Yellow
• Outer Material: TPU Polyurethane in Orange
• Outer Material Durometer: 40A
• Weight: 0.038kg
• Step File

The 100mm (4") Flex Wheel can be used for intake systems and conveyors.

Specifications:

• Diameter:   100mm (4")
• Axial width:  25mm
• Hub:  1/2" Inner Hex
• Inner Material: Molded Plastic in Yellow
• Outer Material: TPU Polyurethane in Blue
• Outer Material Durometer: 50A
• Weight: 0.038kg
• Step File

The 100mm (4") Flex Wheel can be used for intake systems and conveyors.

Specifications:

• Diameter:   100mm (4")
• Axial width:  25mm
• Hub:  1/2" Inner Hex
• Inner Material: Molded Plastic in Yellow
• Outer Material: TPU Polyurethane in Black
• Outer Material Durometer: 60A
• Weight: 0.038kg
• Step File

The 100mm (4 inch)  Double Plastic Omni Wheel provides rotational and sideways 360° maneuverability.  Great for omni directional movement and rotation, easy direction control and tracking, and for fast turning,

Specifications:

• Diameter:   100mm (4")
• Axial width:  16mm
• Hub:    6mm (included)
• Number of plate:  2
• Number of roller: 18
• Body material:    Nylon
• Roller material:   Rubber
• Roller diameter:  19mm
• Net weight:          275g
• Load capacity:    20kg
• Step File

These round groove pulleys are also referred to as U groove pulleys. They are made of 6061-T6 Aluminum with a D-Shaft hole through of 6mm, and 2 set screws for ultimate strength. Use it with the 5mm Round Belt and for gearing up or down combine them with the other round groove pulleys that range from 10mm to 60mm.

Specifications:

• Material: 6061-T6 Aluminum
• Bore: 6mm
• Belt Diameter: 10mm
• Step File

Sometimes you have the need for increased RPM. This 1:1 motor kit can be used with the Studica Maverick or any FTC legal motor such as the Neverest Classic (6600 RPM) or the REV HD Hex motor (6000RPM). The kit includes a faceplate which supports the Studica Robotics building platform. The shaft is press-fit onto the motor's shaft. It is recommended that the shaft be supported by a bearing (we recommend the 76302 for the Studica building system).

Whether you are constructing an intake, designing a shooter, or creating some other high-speed design, this 1:1 option allow you to get the full motor RPM output.

Specifications:

• Material - Anodized 6061-T6 Aluminum
• Step File

Sometimes you have the need for increased RPM. This 1:1 motor kit can be used with the Studica Maverick or any FTC legal motor such as the Neverest Classic (6600 RPM) or the REV HD Hex motor (6000RPM). The kit includes a faceplate which supports the Studica Robotics building platform. The shaft is press-fit onto the motor's shaft. It is recommended that the shaft be supported by a bearing (we recommend the 76302 for the Studica building system).

Whether you are constructing an intake, designing a shooter, or creating some other high-speed design, this 1:1 option allow you to get the full motor RPM output.

Specifications:

• Material - Anodized 6061-T6 Aluminum
• Step File

• Diameter: 110mm
• Width: 45mm
• Inner diameter of wheel frame: 75mm
• Hexagon connector: 12mm
• Unit weight: 128g
• 6mm axle adopter

Specifications:

• Material: 6061-T6 Aluminum
• Thickness: 6.35mm
• Hole Diameter: 14mm
• Number of teeth: 128
• Step File

Specifications:

• Material: 6061-T6 Aluminum
• Number of teeth: 13
• Step File

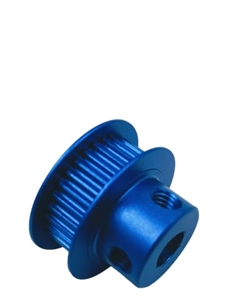

The 20 Tooth GT2-6mm Timing Belt Pulley can be used with any of the GT2 belts.

Specifications:

• 20 Tooth Timing Pulley
• 6mm Bore
• Material: 6061 T6 Aluminum
• Step File

Specifications:

• Material: 6061-T6 Aluminum
• Use with #25 Chain
• Number of teeth: 24
• Addendum - 52.04mm
• Dedendum - 45.25mm
• Pitch - 48.645
• Width - 2.5mm

Specifications:

• Material: 6061-T6 Aluminum
• Number of teeth: 26
• Step File

Used to change motor to axle motion 90 degrees. This can be used in between the U-channel.

Specifications:

• Material: Steel
• Number of teeth: 30
• Set of 2 for 1-1 drives
• Step File

The 30 Tooth GT2-6mm Timing Belt Pulley can be used with any of the GT2 belts.

Specifications:

• 30 Tooth Timing Pulley
• 6mm Bore
• Material: 6061 T6 Aluminum
• Step File

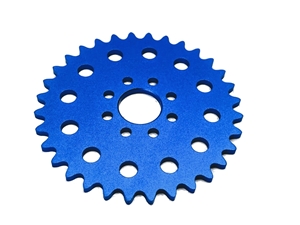

Specifications:

• Material: 6061-T6 Aluminum
• Use with #25 Chain
• Number of teeth: 32
• Pitch - 65.1mm
• Width - 2.5mm
• Step File

Specifications:

• Material: 6061-T6 Aluminum
• Thickness: 6.35mm
• Hole Diameter: 14mm
• Step File

Specifications:

• Material: 6061-T6 Aluminum
• Use with #25 Chain
• Number of teeth: 40
• Addemdum - 84.49mm
• Dedendum - 77.54mm
• Pitch - 81.015mm
• Width - 2.5mm
• Step File

The 40 Tooth GT2-6mm Timing Belt Pulley can be used with any of the GT2 belts.

Specifications:

• 40 Tooth Timing Pulley
• 6mm Bore
• Material: 6061 T6 Aluminum
• Step File

Specifications:

• Material: 6061-T6 Aluminum
• Unse with #25 Chain
• Number of teeth: 48
• Addendum - 100.69mm
• Dedendum - 93.7mm
• Pitch - 97.195mm
• Width - 2.5mm
• Step File

The 50mm (2") Drive Wheel can be used as a simple wheel providing good traction on carpet and tile flooring. They can also be used for intake systems.

Use with 1/2" hex shaft of use 6mm Shaft Hub to use connect 6mm D-Shaft Axles.

Specifications:

• Diameter:   50mm (2")
• Axial width:  25mm
• Hub:  1/2" Inner Hex
• Inner Material: Molded Plastic in Yellow
• Outer Material: TPU Polyurethane in Green
• Outer Material Durometer: 35A
• Weight: 0.038kg
• Step File

The 50mm (2") Drive Wheel can be used as a simple wheel providing good traction on carpet and tile flooring. They can also be used for intake systems.

Use with 1/2" hex shaft of use 6mm Shaft Hub to use connect 6mm D-Shaft Axles.

Specifications:

• Diameter:   40mm (2")
• Axial width:  25mm
• Hub:  1/2" Inner Hex
• Inner Material: Molded Plastic in Yellow
• Outer Material: TPU Polyurethane in Orange
• Outer Material Durometer: 40A
• Weight: 0.038kg
• Step File

The 50mm (2") Drive Wheel can be used as a simple wheel providing good traction on carpet and tile flooring. They can also be used for intake systems.

Use with 1/2" hex shaft of use 6mm Shaft Hub to use connect 6mm D-Shaft Axles.

Specifications:

• Diameter:   50mm (2")
• Axial width:  25mm
• Hub:  1/2" Inner Hex
• Inner Material: Molded Plastic in Yellow
• Outer Material: TPU Polyurethane in Blue
• Outer Material Durometer: 50A
• Weight: 0.038kg
• Step File

The 50mm (2") Drive Wheel can be used as a simple wheel providing good traction on carpet and tile flooring. They can also be used for intake systems.

Use with 1/2" hex shaft of use 6mm Shaft Hub to use connect 6mm D-Shaft Axles.

Specifications:

• Diameter:   50mm (2")
• Axial width:  25mm
• Hub:  1/2" Inner Hex
• Inner Material: Molded Plastic in Yellow
• Outer Material: TPU Polyurethane in Black
• Outer Material Durometer: 60A
• Weight: 0.038kg
• Step File

The pulleys are .40” inside the flanges to allow for belts up to 3/8” in width. Two set screws using 1.5mm hex key.

This Hub allows user that have existing Studica OMNI wheels (Part# 76260) or Mecanum Wheels (Part# 76243) to use REV Robotics 5mm Hex shafts and Hex Motors.

The 60 Tooth GT2-6mm Timing Belt Pulley can be used with any of the GT2 belts.

Specifications:

• 60 Tooth Timing Pulley
• 6mm Bore
• Material: 6061 T6 Aluminum
• Step File

Specifications:

• Material: 6061-T6 Aluminum
• Thickness: 6.35mm
• Hole Diameter: 14mm
• Number of teeth: 64
• Step File

Used with the Maverick DC Motor with a 6mm shaft and any 6mm D-Shaft Axels. Used with 10mm Timing Belt, # 76233.

Specifications:

• 10 Tooth Timing Pulley
• 6mm Bore
• material: 6061 T6 Aluminum
• Step File

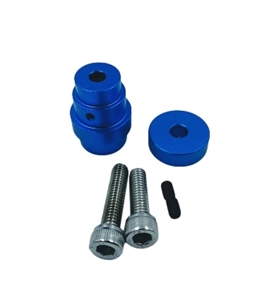

The 6mm Servo Hub 25T is made of anodized 6061-T6 Aluminum and is used to connect a servo motor to a D-Shaft axel.

• Step File

The 6mm Shaft hub is used to connect any Studica wheel and the Studica motor or any motor with a 6mm shaft.

Specifcation:

• Material: 6061-T6 Aluminum
• 6mm ID
• Hole pattern for connecting to structure
• Step File

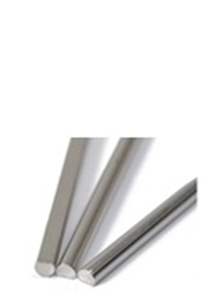

The 6mm diameter D -Shaft is made of stainless steel and is used throughout our building system as drive components. The D-Shaft profile is used with pulleys, gears and hubs when tightening the set screws and creating a non-slip connection.

The 75mm Drive Wheel can be used as a simple wheel providing good traction on carpet and tile flooring. They can also be used for intake systems.

Use with 1/2" hex shaft of use 6mm Shaft Hub to use connect 6mm D-Shaft Axles.

Specifications:

• Diameter:   75mm
• Axial width:  12.5mm
• Hub:  1/2" Inner Hex
• Inner Material: Molded Plastic in Yellow
• Outer Material: TPU Polyurethane in Black
• Outer Material Durometer: 60A
• Weight: 0.05kg
• Step File

The 80 Tooth GT2-6mm Timing Belt Pulley can be used with any of the GT2 belts.

Specifications:

• 80 Tooth Timing Pulley
• 6mm Bore
• Material: 6061 T6 Aluminum
• Step File

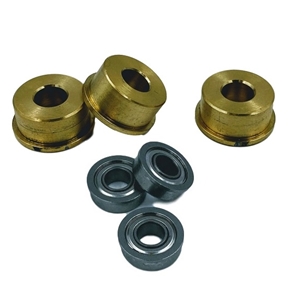

The Bronze Bushing 6mm ID x 14mm OD fits any of the channel and flat brackets having the common center hole pattern of 14mm. The inside diameter will fit any of the D-Shaft axels.

• Material:  bronze
• Inside Diameter: 6 mm
• Outside Diameter: 14 mm
• Step File

The D-Shaft Collar is 6mm ID and 12mm OD. The inside diameter will fit any of the D-Shaft axels.

Specifcations:

• Material: 6061-T6 Aluminum

• Step File

The Flange Bearing 14mm OD fits any of the channel and flat brackets with the common hole pattern having a center hole of 14mm. The inside diameter will fit any of the D-Shaft axels.

• Quantity: 12
• Material: AISI440C stainless steel
• Sealed Type: ZZ metal shields
• Precision: ABEC-3
• Clearance: C0
• Lubrication:Kyodo SRL Grease
• ID (inner diameter)/Bore:6 mm
• OD (outer diameter): 14 mm
• OD of Flanged Size: 15 mm
• Width: 5 mm
• Thickness of Flange: 1 mm
• Step File

This GT2 (also called 2GT) timing belt has a 2mm Pitch, 6mm width, and open 1000mm in length. Use any of the GT2 pulleys from Studica and the clamp kit.

Specifications:

• type: GT2 open-loop
• pitch: 2 mm
• width: 6 mm
• material: neoprene rubber, fiberglass reinforced
• belt shape: circular tooth profile

This GT2 (also called 2GT) timing belt has a 2mm Pitch and 6mm width

Specifications:

• type: GT2 closed-loop 108mm
• pitch: 2 mm
• width: 6 mm
• material: neoprene rubber, fiberglass reinforced
• belt shape: circular tooth profile

This GT2 (also called 2GT) timing belt has a 2mm Pitch and 6mm width

Specifications:

• type: GT2 closed-loop 140mm
• pitch: 2 mm
• width: 6 mm
• material: neoprene rubber, fiberglass reinforced
• belt shape: circular tooth profile

This GT2 (also called 2GT) timing belt has a 2mm Pitch and 6mm width

Specifications:

• type: GT2 closed-loop 160mm
• pitch: 2 mm
• width: 6 mm
• material: neoprene rubber, fiberglass reinforced
• belt shape: circular tooth profile

This GT2 (also called 2GT) timing belt has a 2mm Pitch and 6mm width

Specifications:

• type: GT2 closed-loop 190mm
• pitch: 2 mm
• width: 6 mm
• material: neoprene rubber, fiberglass reinforced
• belt shape: circular tooth profile

This GT2 (also called 2GT) timing belt has a 2mm Pitch and 6mm width

Specifications:

• type: GT2 closed-loop 240mm
• pitch: 2 mm
• width: 6 mm
• material: neoprene rubber, fiberglass reinforced
• belt shape: circular tooth profile
