Multi-Mode Smart Servo

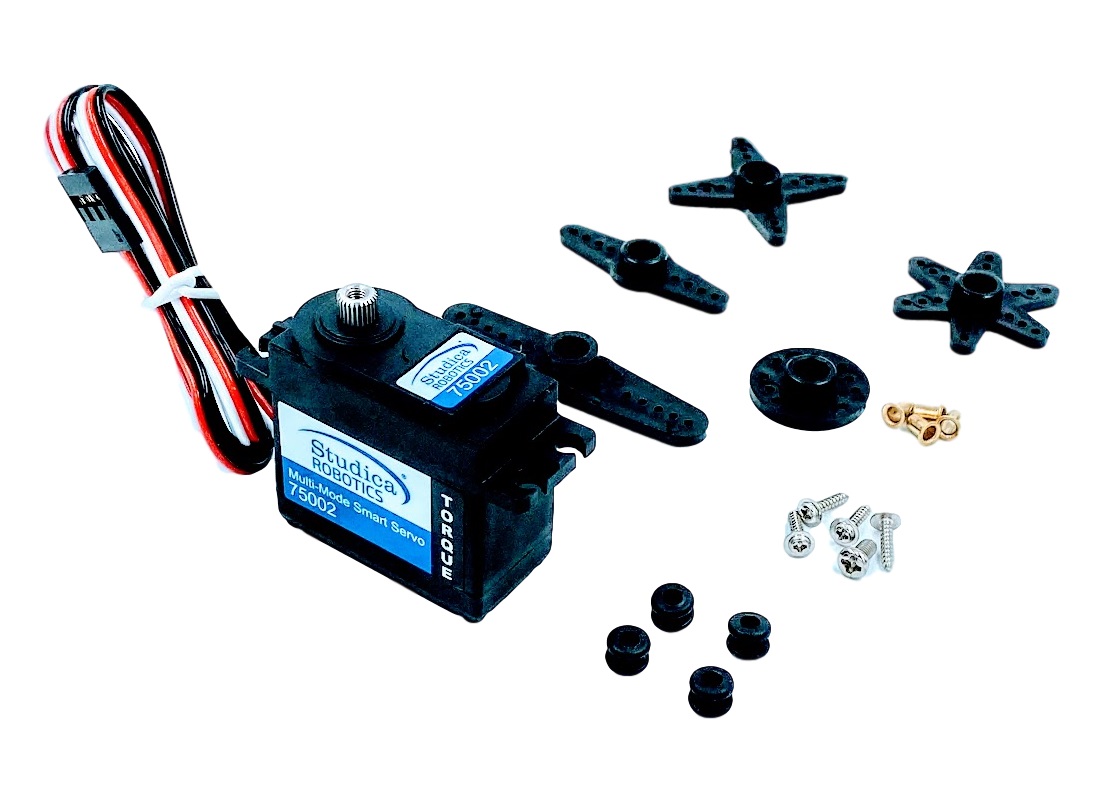

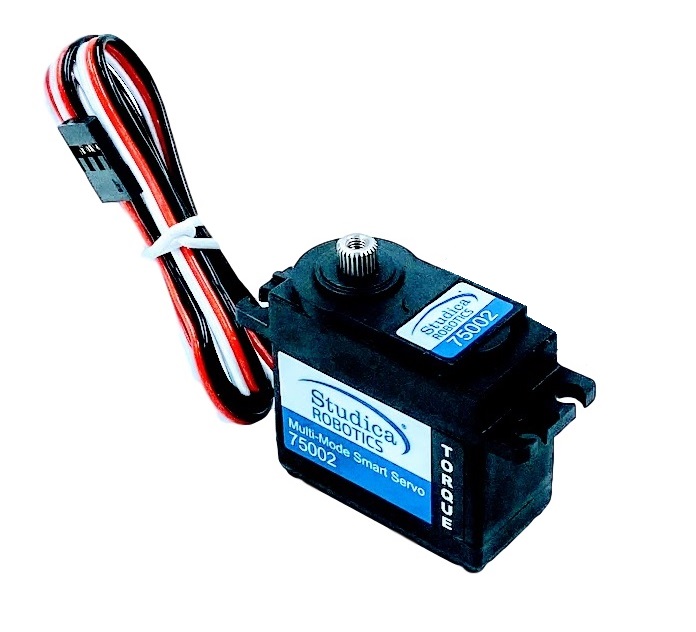

The Multi-Mode Smart Servo 200 rotates at 200RPM. This angular programmable Servo can fill a variety of roles on your robot or project. In standard mode, it operates on a +/- 150-degree range. Using the Studica Smart Robot Servo Programmer (sold separately) the Multi-mode Smart Servo can be configured to run in continuous, standard, and custom angular mode. In continuous rotation mode, the servo will have proportional speed control based on the PWM signal that you send with your servo controller.

• Step File

The Maverick 12V DC Gear Motor 61:1 w/Encoder was designed for strength and endurance.


Specifications:

• Voltage:                      12V DC
• Amperage                   11A(full stall). Nominal operating current is 2.2A, at 12V it's 26.4W
• Wattage                      132W
• Length:                        134mm
• Gear Ratios:                 61:1
• Shaft Diameter:            6mm D-Shaft
• Diameter:                     37mm
• Stall Torque:                 50.5 kg-cm (702 oz-in)
• RPM:                             100
• Encoder:                       Hall effect/Quadrature, 6CPR, 1,464 pulse per revolution
• Weight:                          326 grams
• Power cable:                 PP45, 45cm, 14AWG
• Encoder Cable:             45cm, 22AWG 4-pin
• Step File

nominal so operating current is 2.2A so at 12V this would 26.4W

The Studica Smart Robot Servo Programmer is used for programming the Studica Multi-Model Smart Servo Motor and for testing other standard Servos. Use it to program the Studica Servo to switch between continuous mode, standard mode, or any custom angular mode.

Specifications:

• Requires 6 Volt battery pack with TJC8 connector or use the Studica 6V DC Battery Holder.
• Programming setting modes
  • Standard
  • Continuous
  • Angular

The Servo Power Block is a 6V, 60W power injector that provides proper power for RC Servos. It does not interfere with the signal, it will only replace the power to the servo with 6V.

Features,

• Built in DC-DC converter
• Over-current shutdown
• ESD protection

Specifications,

• Nominal Input Voltage: 12V
• Operational Voltage Range: 6.0V
• Number of Channels: 8
• Max Current for All Channels Combined: 10A
• Total Continuous Power: 60W
• Size: 70mm x 45mm x 16mm
• Step File

The Servo Horn 25T is made of anodized 6061-T6 Aluminum and is used with the Multi-Mode Smart Servo (75002) and the Studica building structure.

• Step File

The Studica End Piece Plate is commonly fastened to the inside end of the U Channel. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.

Specifications:

Material: 6061-T6 Aluminum

• Step File

The 120 Degree Bracket is perfect for connecting two channel pieces at 120 degrees from each other. Each side is 48mm wide to fit perfectly on the channel. Use three brackets with 3 channel pieces to make 3 wheeled robots. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.

Specifications:

• Material - Anodized 6061-T6 Aluminum
• Thickness - 3mm
