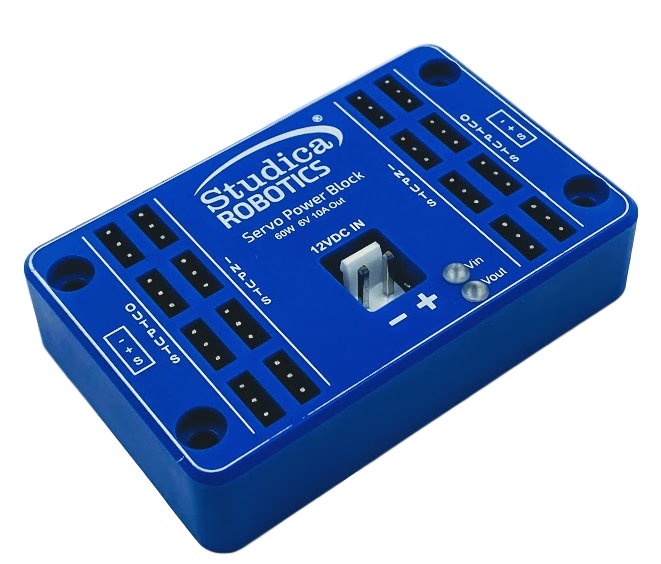

    Servo Power Block

    The Studica Servo Power Module is a 6V, 60W power injector that enables the use of high-power RC servos. The Servo Power Module passes through input signals unaltered while providing up to 60W of total output power across all eight channels.  The input and output channels accept standard 3-wire, 0.1” pitch, servo/PWM cables.

    Features,

    • Built in DC-DC converter
    • Over-current shutdown
    • ESD protection

    Specifications,

    • Nominal Input Voltage: 12V
    • Operational Voltage Range: 6.0V
    • Number of Channels: 8
    • Max Current for All Channels Combined: 10A
    • Total Continuous Power: 60W
    • Size: 70mm x 45mm x 16mm



    MFR Part #: 75006
    $36.99
    Availability: 2171 in stock
