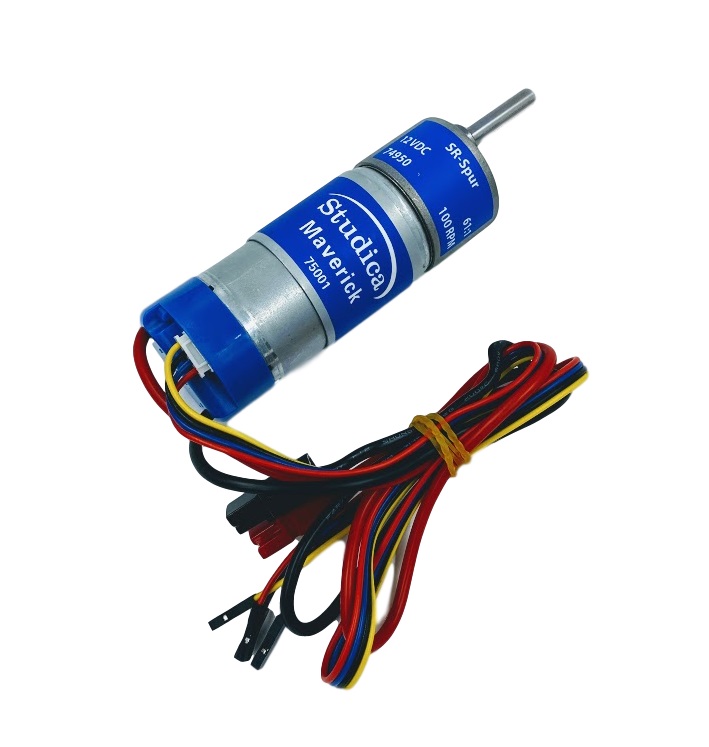

Our improved and stronger 12-volt DC motor with 100 rpm and 708 oz-in. of torque. The motor features a built-in, high-resolution Hall effect encoder for precise motor control and comes with an encoder cable.
A 61:1 gearbox comes standard.
Motor Specs
Function
Min
Nom
Max
Input Voltage
—
12VDC
Gear Ratio
1:61
No Load RPM
88
100
112
No Load Current
600mA
Rated Speed
68
80
92
Rated Current
2.2A
Rated Torque
139oz-in
Stall Current
11A
Stall Torque
708oz-in
Direction
CW
Encoder Voltage
4
5
Encoder Current
6mA
Encoder CPR
6
Output Counts per Revolution of Output Shaft (cpr) 1,464 pulses
The Studica Multi-Mode Smart Servo features all-steel gears and large amounts of torque. This angular programmable Servo can fill a variety of roles on your robot or project. In standard mode, it operates on a +/- 150-degree range. Using the Studica Smart Robot Servo Programmer (sold separately) the Multi-mode Smart Servo can be configured to run in continuous, standard, and custom angular mode. In continuous rotation mode, the servo will have proportional speed control based on the PWM signal that you send with your servo controller.
The Servo Power Block is a 6V, 60W power injector that provides proper power for RC Servos. It does not interfere with the signal, it will only replace the power to the servo with 6V.
Features,
Specifications,
The Servo Horn 25T is made of anodized 6061-T6 Aluminum and is used with the Multi-Mode Smart Servo (75002) and the Studica building structure.
The WSC2022SE Gurney includes the following items,
Used for WorldSkills, the Studica 12V 3,000mAh NiMH (nickel metal hydride) Battery Pack, PP45 in comes with a w/20 amp fuse. It is a 10-cell, 12-volt rechargeable battery pack.
The Studica NiMH Battery Pack Charger, PP45, is required to charge the battery.Specifications,
The Motor Mount Plate is used with the Maverick 12V DC Gear Motor (Part# 75001) to attach it inside the anyone of the U Channels 76010 to 76018. This is an example of a chassis with 4 motors mounted inside the U-Channel using a Motor Mounting Plate.
Use the Motor Mount Clamp kit when fastening motors on body and attaching kit to channel and other structure.
Includes,
The Maverick Motor with 50.9:1 planetary gearbox features a high‑torque reduction system engineered for demanding robotic and automation applications. Its 6mm hex output shaft ensures secure coupling with Studica‑compatible components and other hex‑based mechanical systems. Built on Studica’s industrial‑grade motor platform, this unit provides reliable, consistent performance suited for precision‑controlled, heavy‑load mechanisms.
- For clamping use the 76141 Motor Mount Clamp Kit or the 76137 Clover Motor Mount
The Maverick Motor with 19.2:1 planetary gearbox features a high‑torque reduction system engineered for demanding robotic and automation applications. Its 6mm hex output shaft ensures secure coupling with Studica‑compatible components and other hex‑based mechanical systems. Built on Studica’s industrial‑grade motor platform, this unit provides reliable, consistent performance suited for precision‑controlled, heavy‑load mechanisms.
The Maverick Motor with 13.7:1 planetary gearbox features a high‑torque reduction system engineered for demanding robotic and automation applications. Its 6mm hex output shaft ensures secure coupling with Studica‑compatible components and other hex‑based mechanical systems. Built on Studica’s industrial‑grade motor platform, this unit provides reliable, consistent performance suited for precision‑controlled, heavy‑load mechanisms.
The Maverick Motor with 3.71 planetary gearbox features a high‑torque reduction system engineered for demanding robotic and automation applications. Its 6mm hex output shaft ensures secure coupling with Studica‑compatible components and other hex‑based mechanical systems. Built on Studica’s industrial‑grade motor platform, this unit provides reliable, consistent performance suited for precision‑controlled, heavy‑load mechanisms.
The Maverick Motor with 1:1 planetary gearbox features a high‑torque reduction system engineered for demanding robotic and automation applications. Its 6mm hex output shaft ensures secure coupling with Studica‑compatible components and other hex‑based mechanical systems. Built on Studica’s industrial‑grade motor platform, this unit provides reliable, consistent performance suited for precision‑controlled, heavy‑load mechanisms.- For clamping use the 76141 Motor Mount Clamp Kit or the 76137 Clover Motor Mount
