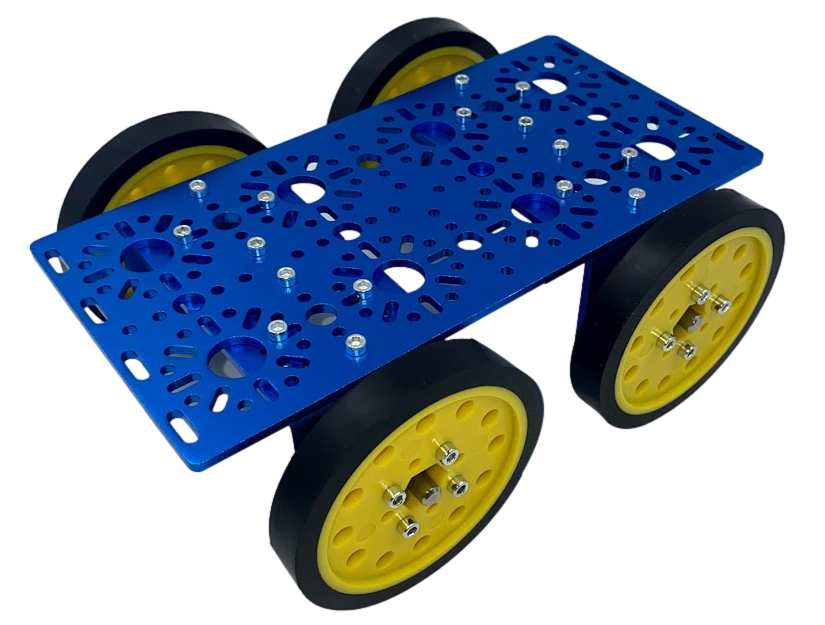

    WorldSkills 2022 Special Edition Gurney

    Be the first to review this product

    The WSC2022SE Gurney includes the following items,

    1 192mm x 96mm Flat Bracket 76066
    2 L Bracket (2 pack) 76087-2
    2 6mm x 140mm D-Shaft 76164
    4 Bronze Bushing 6mm ID x 14mm OD 76301
    4 75mm Drive Wheel - 60A, 12.5mm wide, 1/2" Inner Hex, Black 76271
    1 Shaft Spacer Plastic 6mm ID x 10mm OD x 1mm L (4) 76305
    1 6mm Shaft Hub (4 pack) 76284-4
    1 M3 Kep Nut (pack of 100) 76204-100
    1 M3 x 10mm Socket Head Cap Screw (pack of 100) 76201-100



    MFR Part #: 75102
    $89.99
    In stock
    Write your own review
    • Product can be reviewed only after purchase
    • Only registered users can write reviews
    *
    *
    • Bad
    • Excellent
