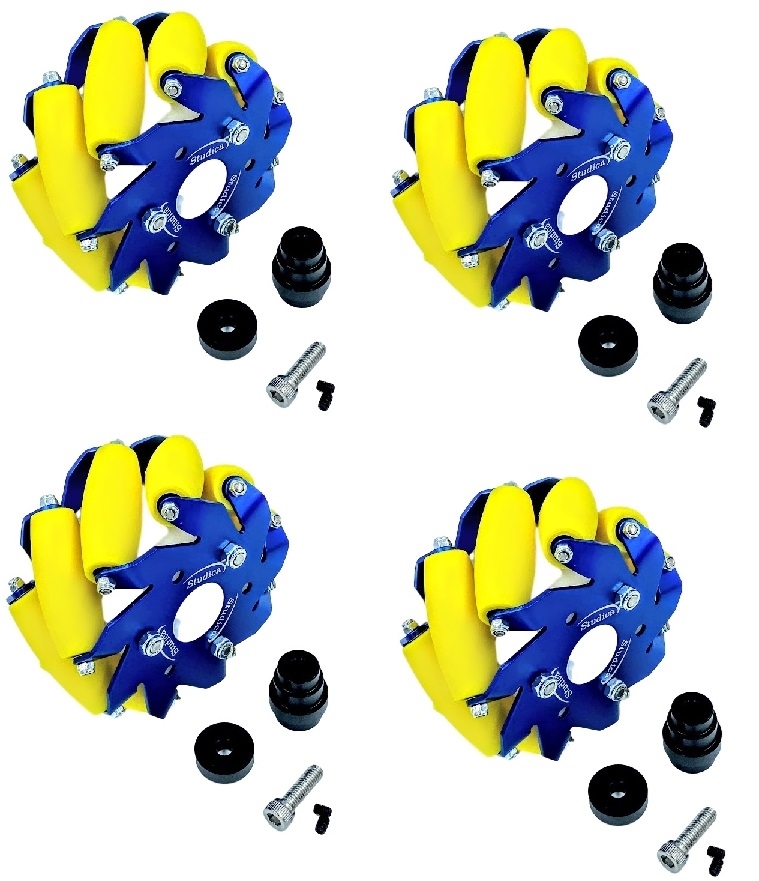

    Mecanum Wheel Set (2 left - 2 right - 100mm - w/6mm Hub)

    Be the first to review this product

    Studica 100mm Aluminum Mecanum Wheel w/6mm Hub. With blue aluminium frame and yellow rollers.  Wheel comprised of 9 yellow rollers is able to move in any direction. Rollers are set at 45° to the axis of rotation of the wheel.



     Wheel Specifications:

    • Diameter:                                                100mm
    • Width:                                                       50m
    • Number of Rollers:                                 9
    • Number of Plates each wheel:             2
    • Body material:                                        Aluminium alloy
    • Roller material:                                       Polyethylene (PE) and Polypropylene (PP)
    • Spacer Material:                                     Nylon
    • Length of roller:                                     19mm
    • Weight:                                                    354gm
    • Step File

    Hub Specifications:

    • Inside Diameter:                                    6mm
    • Outside Diameter :                                22mm
    • Bore Length:                                          15mm
    • Weight:                                                   32g





    MFR Part #: 76240
    $119.99
    Availability: 17 in stock
