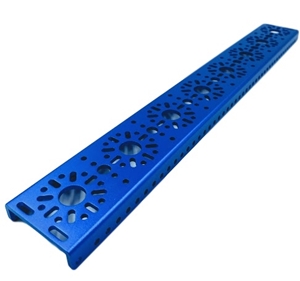

48mm Low Profile U Channel
The Studica Low Profile U Channel is 3mm thick and has a 48mm x 14mm profile. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.
Specifications:
- Material: 6061-T6 Aluminum
- Thickness - 3mm
- Height - 14mm
- Width - 48mm
- Length - 48mm
- Hole pattern - 1
- Step File
96mm Low Profile U Channel
The Studica Low Profile U Channel is 3mm thick and has a 48mm x 14mm profile. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.
Specifications:
- Material: 6061-T6 Aluminum
- Thickness - 3mm
- Height - 14mm
- Width - 48mm
- Length - 96mm
- Hole pattern - 2
- Step File
144mm Low Profile U Channel
The Studica Low Profile U Channel is 3mm thick and has a 48mm x 14mm profile. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.
Specifications:
- Material: 6061-T6 Aluminum
- Thickness - 3mm
- Height - 14mm
- Width - 48mm
- Length - 144mm
- Hole pattern - 3
- Step File
192mm Low Profile U Channel
The Studica Low Profile U Channel is 3mm thick and has a 48mm x 14mm profile. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.
Specifications:
- Material: 6061-T6 Aluminum
- Thickness - 3mm
- Height - 14mm
- Width - 48mm
- Length - 192mm
- Hole pattern - 4
- Step File
336mm Low Profile U Channel
The Studica Low Profile U Channel is 3mm thick and has a 48mm x 14mm profile. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.
Specifications:
- Material: 6061-T6 Aluminum
- Thickness - 3mm
- Height - 14mm
- Width - 48mm
- Length - 336mm
- Hole pattern - 7
- Step File
384mm Low Profile U Channel
The Studica Low Profile U Channel is 3mm thick and has a 48mm x 14mm profile. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.
Specifications:
- Material: 6061-T6 Aluminum
- Thickness - 3mm
- Height - 14mm
- Width - 48mm
- Length - 384mm
- Hole pattern - 8
- Step File
432mm Low Profile U Channel
The Studica Low Profile U Channel is 3mm thick and has a 48mm x 14mm profile. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.
Specifications:
- Material: 6061-T6 Aluminum
- Thickness - 3mm
- Height - 14mm
- Width - 48mm
- Length - 432mm
- Hole pattern - 9
- Deburred, polished and annodized
- Step File

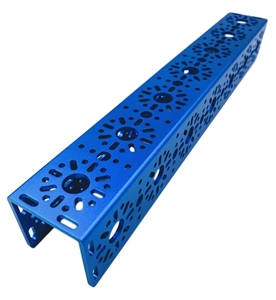

48mm U Channel (2 pack)
The Studica U Channel is 3mm thick and has a 48mm x 48mm profile. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.
Specifications:
- Material: 6061-T6 Aluminum
- Thickness - 3mm
- Height - 48mm
- Width - 48mm
- Length - 48mm
- Weight - 40gms each
- Hole pattern - 1
- Step File
144mm U Channel (2 pack)
The Studica U Channel is 3mm thick and has a 48mm x 48mm profile. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.
Specifications:
- Material: 6061-T6 Aluminum
- Thickness - 3mm
- Height - 48mm
- Width - 48mm
- Length - 144mm
- Weight - 120gms each
- Hole pattern - 3
- Step File
192mm U Channel
The Studica U Channel is 3mm thick and has a 48mm x 48mm profile. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.
Specifications:
- Material: 6061-T6 Aluminum
- Thickness - 3mm
- Height - 48mm
- Width - 48mm
- Length - 192mm
- Weight - 165gms
- Hole pattern - 4
- Step File
240mm U Channel
The Studica U Channel is 3mm thick and has a 48mm x 48mm profile. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.
Specifications:
- Material: 6061-T6 Aluminum
- Thickness - 3mm
- Height - 48mm
- Width - 48mm
- Length - 240mm
- Weight - 206gms
- Hole pattern - 5
- Step File
288mm U Channel (2 pack)
The Studica U Channel is 3mm thick and has a 48mm x 48mm profile. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.
Specifications:
- Material: 6061-T6 Aluminum
- Thickness - 3mm
- Height - 48mm
- Width - 48mm
- Length - 288mm
- Weight - 244gms each
- Hole pattern - 6
- Step File
336mm U Channel
The Studica U Channel is 3mm thick and has a 48mm x 48mm profile. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.
Specifications:
- Material: 6061-T6 Aluminum
- Thickness - 3mm
- Height - 48mm
- Width - 48mm
- Length - 336mm
- Weight - 282gms
- Hole pattern - 7
- Step File
384mm U Channel
The Studica U Channel is 3mm thick and has a 48mm x 48mm profile. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.
Specifications:
- Material: 6061-T6 Aluminum
- Thickness - 3mm
- Height - 48mm
- Width - 48mm
- Length - 384mm
- Weight - 330gms
- Hole pattern- 8
- Deburred, polished, and anodized
- Step File
432mm U Channel
The Studica U Channel is 3mm thick and has a 48mm x 48mm profile. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.
Specifications:
- Material: 6061-T6 Aluminum
- Thickness - 3mm
- Height - 48mm
- Width - 48mm
- Length - 336mm
- Weight -372gm
- Hole pattern - 9
- Step File
Large Channel Pack
U Channel Bumper (4 pack)
The Studica U-Channel Bumper is connected to the end of the Studica 48mm U-Channel and helps remove sharp corners that can cause damage when the robot is bumping into other objects. It also creates an ecstatically clean finish to your robot.
Specifications:
- Material: Silicomn/Rubber
- Hardness: 50-60 Shore A
- Length: 48mm
- Width: 48mm
- Thickness: 10.75mm
- Color: Black
- Step File
240mm Low Profile U Channel
The Studica Low Profile U Channel is 3mm thick and has a 48mm x 14mm profile. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.
Specifications:
- Material: 6061-T6 Aluminum
- Thickness - 3mm
- Height - 14mm
- Width - 48mm
- Length - 240mm
- Hole pattern - 5
- Step File
288mm Low Profile U Channel (2 pack)
The Studica Low Profile U Channel is 3mm thick and has a 48mm x 14mm profile. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.
Specifications:
- Material: 6061-T6 Aluminum
- Thickness - 3mm
- Height - 14mm
- Width - 48mm
- Length - 288mm
- Hole pattern - 6
- Step File
96mm U Channel (2 pack)
The Studica U Channel is 3mm thick and has a 48mm x 48mm profile. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.
Specifications:
- Material: 6061-T6 Aluminum
- Thickness - 3mm
- Height - 48mm
- Width - 48mm
- Length - 96mm
- Weight - 80gms each
- Hole pattern - 2
- Step File
