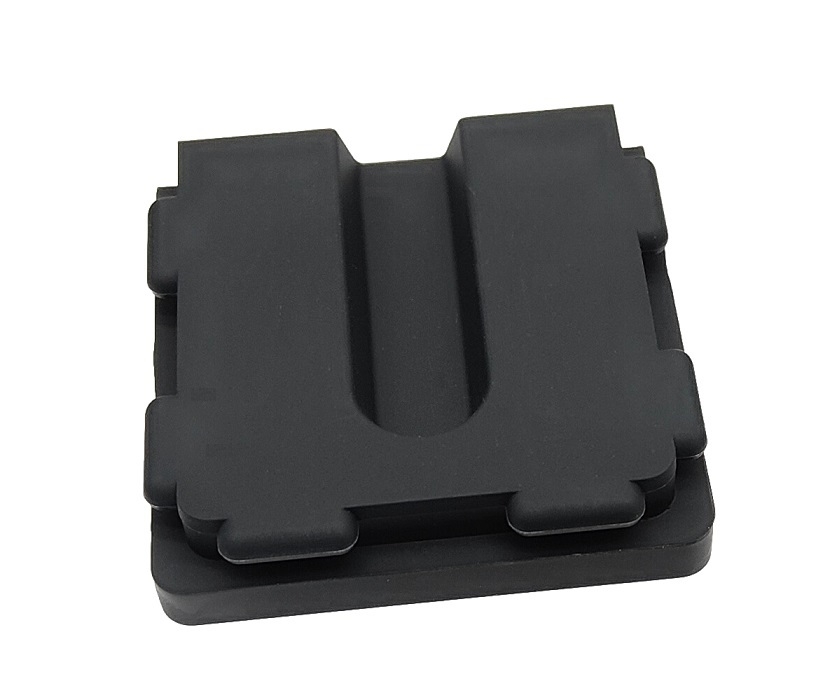

    U-Channel Bumper (4 pack)

    The Studica U-Channel Bumper is connected to the end of the Studica 48mm U-Channel and helps remove sharp corners that can cause damage when the robot is bumping into other objects. It also creates an ecstatically clean finish to your robot.

    Specifications:

    • Material: Silicomn/Rubber
    • Hardness: 50-60 Shore A
    • Length: 48mm
    • Width: 48mm
    • Thickness: 10.75mm
    • Color: Black

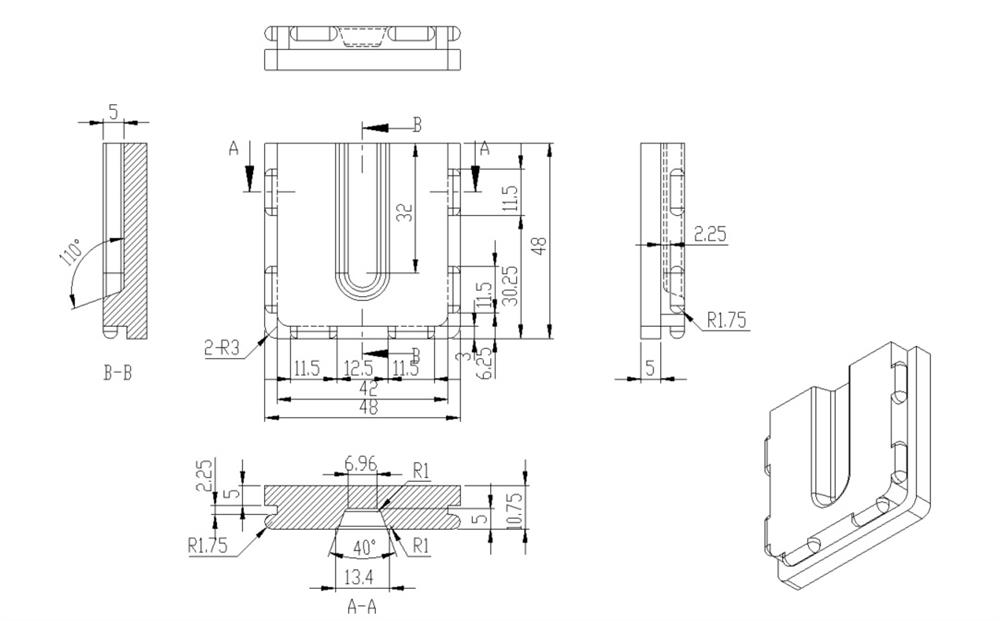

    • Step File
    MFR Part #: 76505-4
    $6.99
    Availability: In stock

    Write your own review
    • Product can be reviewed only after purchase
    • Only registered users can write reviews
    • Bad
    • Excellent

    Customers who bought this item also bought

    Servo Arm

    #76151
    $5.49
    (In stock)

    The Studica Servo Arm can be used with the Multi Mode Servo, Multi Mode Servo 200, or most servos with a 25 Tooth gear.



    Specifcations:

    • Spline: 25 Tooth, 3.8mm deep
    • Length: 33mm
    • Width: 14mm
    • Height: 7.8mm
    • Material: 6061-T6 Aluminum
    • Step File

    144mm Square Beam

    #76106
    $4.69
    (1322 In stock)

    The Studica Square Beam is 8mm by 8mm. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.

    Specifications:

    • Material -  Anodized 6061-T6 Aluminum
    • Holes - 3.5mm diameter spaced 8mm apart
    • Length - 144mm
    • Step File

    Rubber Grommet (10 pack)

    #76504-10
    $5.99
    (In stock)

    Rubber Grommets are made for the Studica channel and plates and or any structure with a 14mm hole. Use it for protecting wire or as a bumper.

    Specifications:

    • Outside diameter: 18mm
    • Inside Diameter : 11mm
    • Hole fitting diameter: 14mm
    • Thickness: 9mm
    • Step File



    Rubber Foot (4 pack)

    #76506-4
    $5.49
    (In stock)

    Made of Nylon, the Studica Rubber Foot is used with the Studica Robotics building structure and for many other uses.

    Specifications:

    • Material: Nylon
    • Outside OD: 24mm
    • Inner OD: 21mm
    • Height: 24mm
    • Step File



    432mm U-Channel

    #76010
    $15.99
    (2946 In stock)

    The Studica U Channel is 3mm thick and has a 48mm x 48mm profile. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.

    Specifications:

    • Material: 6061-T6 Aluminum
    • Thickness - 3mm
    • Height - 48mm
    • Width - 48mm
    • Length - 336mm
    • Weight -372gm
    • Hole pattern - 9
    • Step File



    240mm U-Channel

    #76014
    $9.99
    (895 In stock)

    The Studica U Channel is 3mm thick and has a 48mm x 48mm profile. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.

    Specifications:

    • Material: 6061-T6 Aluminum
    • Thickness - 3mm
    • Height - 48mm
    • Width - 48mm
    • Length - 240mm
    • Weight - 206gms
    • Hole pattern - 5
    • Step File



    384mm U-Channel

    #76011
    $14.99
    (1109 In stock)

    The Studica U Channel is 3mm thick and has a 48mm x 48mm profile. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.

    Specifications:

    • Material: 6061-T6 Aluminum
    • Thickness - 3mm
    • Height - 48mm
    • Width - 48mm
    • Length - 384mm
    • Weight - 330gms
    • Hole pattern- 8
    • Step File
