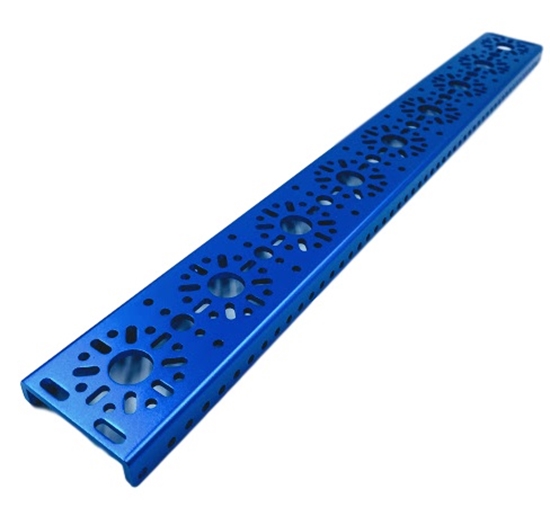

    432mm Low Profile U-Channel

    The Studica Low Profile U Channel is 3mm thick and has a 48mm x 14mm profile. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.

    Specifications:

    • Material: 6061-T6 Aluminum
    • Thickness - 3mm
    • Height - 14mm
    • Width - 48mm
    • Length - 432mm
    • Hole pattern - 9

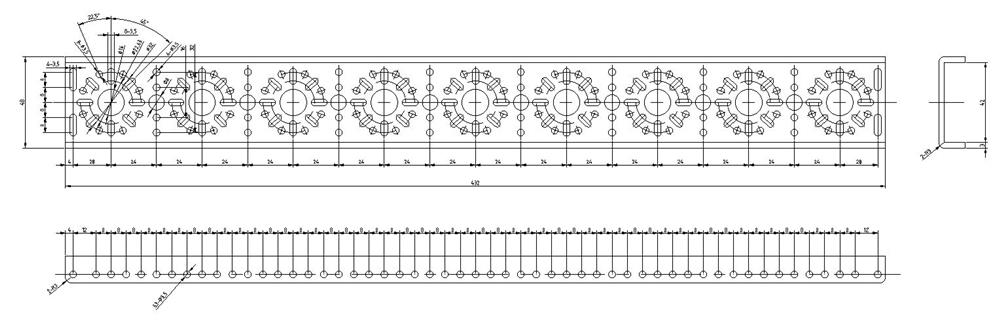

    • Step File



    MFR Part #: 76025
    $12.99
    558 in stock

    Write your own review
    • Product can be reviewed only after purchase
    • Only registered users can write reviews
    *
    *
    • Bad
    • Excellent
