2019 Challenge Pieces

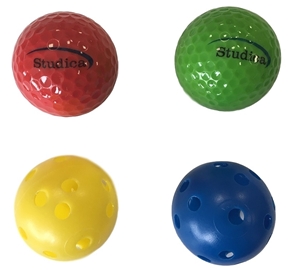

These are the official pieces used in the Waste Management Competition. This kit includes seven of each element plus one of each extra in case you lose one. Includes,
- 8 Green Solid Element
- 42.67mm diameter
- 45.93 grams
- 8 Red Solid Element
- 42.67mm diameter
- 45.93 grams
- 8 Blue Perforated Light Weight Element
- 41.275mm diameter
- 7 grams
- 8 Yellow Perforated Light Weight Element
- 41.275mm diameter
- 7 grams
WorldSkills 2022 Special Edition Instruction Set (20 pack)
The WSC2022SE Wall Board Instruction Set are flat magnets, like refrigerator magnets, that will adhere to the WSC2022SE Work Order Board. The set includes 20 pieces in total.
Specifications:
- Made of Magnets and ABS
- Includes,
- 5 blue medicine cube magnets
- 5 white medicine cube magnets
- 5 hazardous material cubes magnets
- 5 gurney picture magnets
You can use these with the WSC2022SE Work Order Board, part # 75104
WorldSkills 2022 Special Edition Gurney
The WSC2022SE Gurney includes the following items,
| 1 | 192mm x 96mm Flat Bracket | 76066 |
| 2 | L Bracket (2 pack) | 76087-2 |
| 2 | 6mm x 140mm D-Shaft | 76164 |
| 4 | Bronze Bushing 6mm ID x 14mm OD | 76301 |
| 4 | 75mm Drive Wheel - 60A, 12.5mm wide, 1/2" Inner Hex, Black | 76271 |
| 1 | Shaft Spacer Plastic 6mm ID x 10mm OD x 1mm L (4) | 76305 |
| 1 | 6mm Shaft Hub (4 pack) | 76284-4 |
| 1 | M3 Kep Nut (pack of 100) | 76204-100 |
| 1 | M3 x 10mm Socket Head Cap Screw (pack of 100) | 76201-100 |
WorldSkills 2022 Special Edition Accessory Kit
The WSC2022SE Accessory Kit includes the following items. Many of the parts are already included in the WSC2022SE Collection, however some, highlighted in blue text, are not.
| Qty | Product | Part # |
| 1 | Mecanum Wheel Set (2 left, 2 right, 100mm, w/6mm Hub) | 76240 |
| 2 | Rack & Pinion Set (1 Rack, 1 Pinion, 2 Glides) | 76170 |
| 1 | Linear Slide Kit, 250mm Slide and Block | 72064 |
| 2 | 432mm U-Channel | 76010 |
| 2 | 192mm U-Channel | 76015 |
| 4 | 30 Tooth Bevel Gear 1 to 1 (2 Pack) | 76219-2 |
| 1 | Flange Bearing 6mm ID, 14mm OD, 15mm Flange (12 pack) | 76302-12 |
| 1 | Collar 6mm ID D-Shaft, 12mm OD (6 pack) | 76304-6 |
| 1 | Shaft Spacer Plastic 6mm ID x 10mm OD x 1mm L (24 pack) | 76305-24 |
| 1 | Shaft Spacer Plastic 6mm ID x 10mm OD x 5mm L (12 pack) | 76307-12 |
| 1 | M3 x 12mm Socket Head Cap Screw (pack of 100) | 76202-100 |
| 1 | M3 x 10mm Button Head Cap Screw (pack of 50) | 76203-50 |
| 1 | M3 Kep Nut (pack of 100) | 76204-100 |
| 1 | 48mm Standoff (12 pack) | 76181-12 |
| 2 | Servo Mount Flat Plate | 76145 |
| 2 | Servo Mount Offset Plate | 76146 |
| 2 | Servo Horn 25T | 76148 |
| 2 | 6mm D-Shaft Servo Hub 25T | 76149 |
| 1 | 96mm Adjustable Flat Bracket (2 pack) | 76083-2 |
| 1 | L Bracket (2 pack) | 76087-2 |
| 1 | Inside L Bracket (2 pack) | 76089-2 |
| 1 | 144mm x 40mm Flat Bracket (2 pack) | 76064-2 |
| 1 | 96mm Flat Beam (2 pack) | 76047-2 |
| 2 | 96mm Square Beam | 76107 |
| 2 | Multi-Mode Smart Servo | 75002 |
| 1 | IR Range Sensor (10 cm to 80 cm) | 40117 |
| 1 | IR Range Sensor Bracket | 40118 |
Lyon Challenge Elements (Practice)
The Lyon Challenge Elements are used to train for but may not be used for the WorldSkills Lyon 2024 Mobile Robotics Competition. More details will be provided in the official Test Project Preview (TP-pre) to be released in C-9 months. Refer to the Mobile Robotics Technical Despription (TD) which will be released on C-12 months which covers all the the skills required to compete.
Lyon Fruit & Vegetable Kit
The Lyon Fruit and Vegetable Kit can be used to train for the Lyon 2024 Competition where on days 1 and 2 various autonomous mobile robot skills will be assessed. There are 10 fruits and vegetables that are at a one-to-one scale to the real produce. Note these may or may not be used in the competition.
The package includes,
- 1 Orange
- 1 Peach
- 1 Green Apple
- 1 Pomegranate
- 1 Garlic head
- 1 Banana
- 1 Kiwi
- 1 Mangosteen
- 1 Lime (Lemon)
- 1 Red Pepper
WorldSkills 2022 Special Edition Work Order Board
The WSC2022SE Work Order Board is a wall board that is made to scale based on the challenge document. It has an adhesive backing to stick to the wall of the court, and front section is metal and ABS that will allow for magnetic material to adhere to it.
Used together with the WSC2022SE Wall Board Instruction Set, part number 75105, which are the magnetic instruction pieces that will adhere to the wall board.

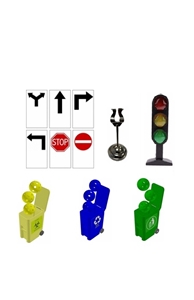

Trash Waste Bin (Green)
This is used and recommended in the Waste Management Robotics Competition.
Specifications,
- Maximum Dimmensions - 125mm x 88mm x 71mm
- Color - Green
Recycle Waste Bin (Blue)
This is used and recommended in the Waste Management Robotics Competition.
Specifications,
- Maximum Dimmensions - 125mm x 88mm x 71mm
- Color - Blue
Biohazard Waste Bin (Yellow)
This is used and recommended in the Waste Management Robotics Competition.
Specifications,
- Maximum Dimmensions - 125mm x 88mm x 71mm
- Color - Yellow
