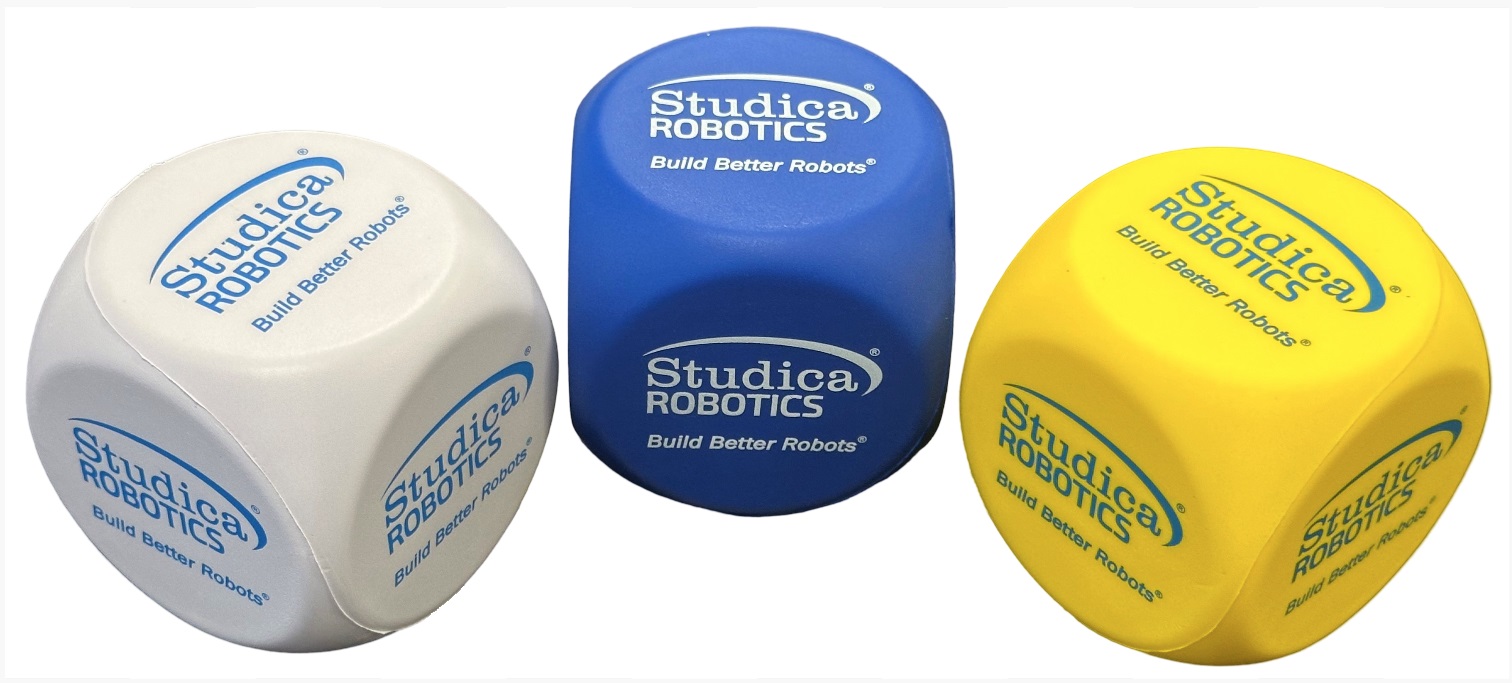

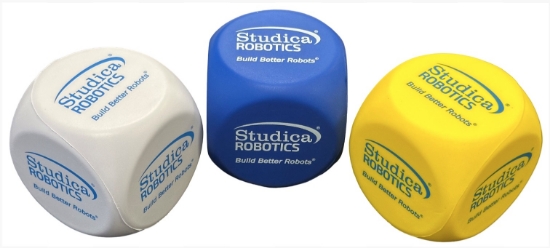

Game Cubes - 3 pack

The WSC2022SE Work Order Board is a wall board that is made to scale based on the challenge document. It has an adhesive backing to stick to the wall of the court, and front section is metal and ABS that will allow for magnetic material to adhere to it.

Used together with the WSC2022SE Wall Board Instruction Set, part number 75105, which are the magnetic instruction pieces that will adhere to the wall board.

The WSC2022SE Wall Board Instruction Set are flat magnets, like refrigerator magnets, that will adhere to the WSC2022SE Work Order Board. The set includes 20 pieces in total.

Specifications:

• Made of Magnets and ABS
• Includes,
  • 5 blue medicine cube magnets
  • 5 white medicine cube magnets
  • 5 hazardous material cubes magnets
  • 5 gurney picture magnets

You can use these with the WSC2022SE Work Order Board, part # 75104

The WSC2022SE Gurney includes the following items,

• Gurney Build Instructions -  Download
• Interactive Viewer - Open
• Gurney Step file - Download

The 6mm D-Shaft Servo Hub 25T is made of anodized 6061-T6 Aluminum and is used to connect a servo motor to a D-Shaft axel.

• Step File

The Servo Horn 25T is made of anodized 6061-T6 Aluminum and is used with the Multi-Mode Smart Servo (75002) and the Studica building structure.

• Step File

The 6mm D-Shaft Hub is used to connect any Studica wheel and the Studica motor or any motor with a 6mm shaft.

Specifcation:

• Material: 6061-T6 Aluminum
• 6mm ID
• Hole pattern for connecting to structure
• Step File

The Cobra Line Follower Array provides 4 X QRE1113 IR reflectance sensor mounted on a 9mm pitch Each sensor is comprised of two parts - an IR emitting LED and an IR sensitive phototransistor. When you apply power to the VCC and GND pins the IR LED inside the sensor will illuminate.

The Studica Line Sensor Board consists of 4 IR LED/phototransistor pairs, making it a great detector for a line-following robot.  The Line Sensor Board allows the robot to tell objects or surfaces apart based on how dark or light they are. It shines a beam of infrared light out onto the object, and measures how much light is reflected back.

Each sensor provides a separate analog voltage output. The sensor board is an infrared emitter/receiver that is able to differentiate between a dark surface (with low IR reflectivity – 3.3V to 5V) and a light surface (with high IR reflectivity – 0V to 0.5V). However, this range can vary depended on the installed height of the sensor board.

The optimum height distance is 3-5 mm; however, the reflectivity values will change depending on distance. A daylight filter is built into the sensor.

• 5VDC operating voltage (recommended)
• 70mA supply current
• Optimal sensing distance: 0.125" (3mm)
• Step File
