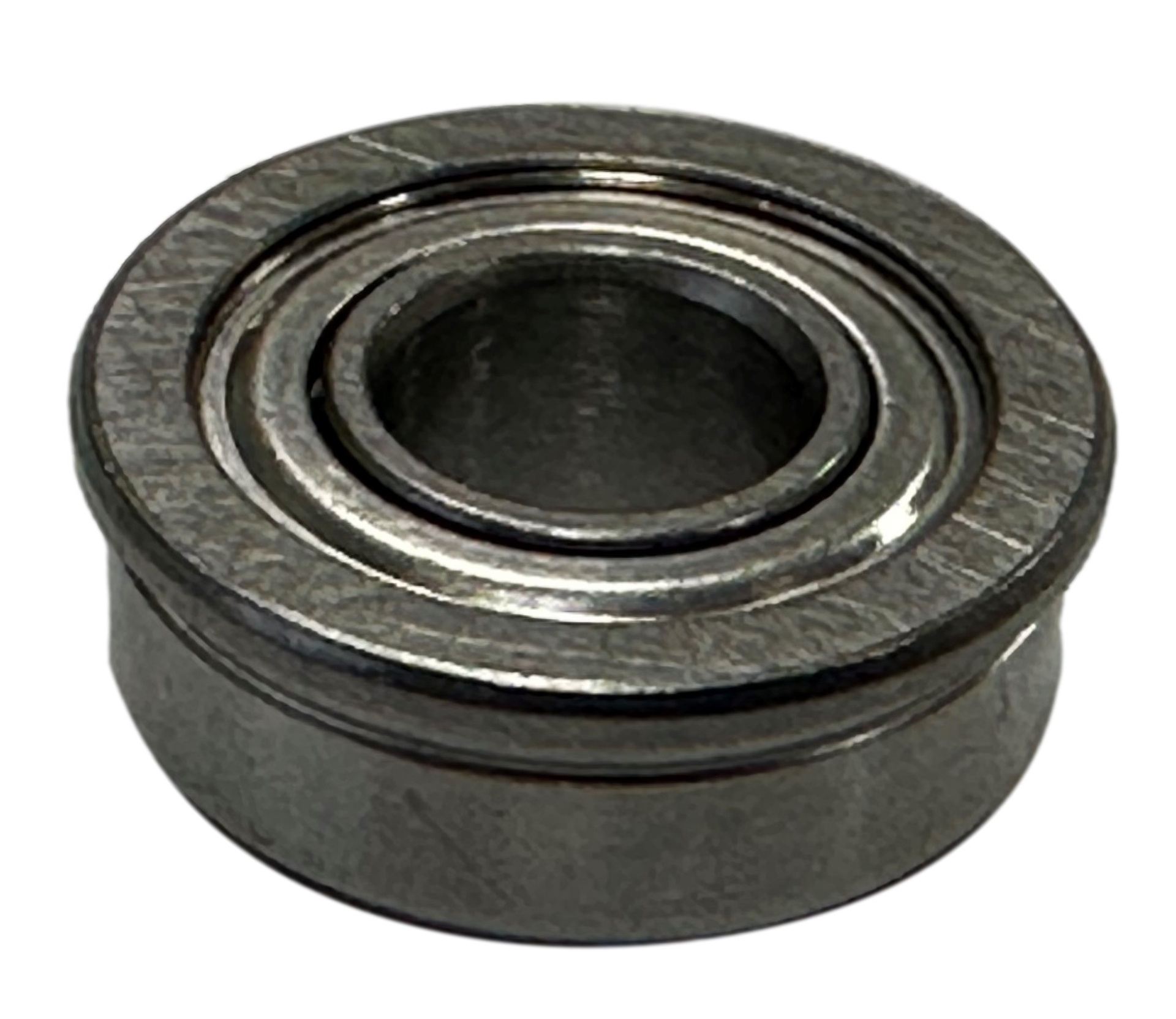

    Flange Bearing 6mm ID x 14mm OD x 15mm Flange (12 pack)

    $17.99

    The Flange Bearing 14mm OD fits any of the channel and flat brackets with the common hole pattern having a center hole of 14mm. The inside diameter will fit any of the D-Shaft axels.

    • Quantity: 12
    • Material: AISI440C stainless steel
    • Sealed Type: ZZ metal shields
    • Precision: ABEC-3
    • Clearance: C0
    • Lubrication:Kyodo SRL Grease

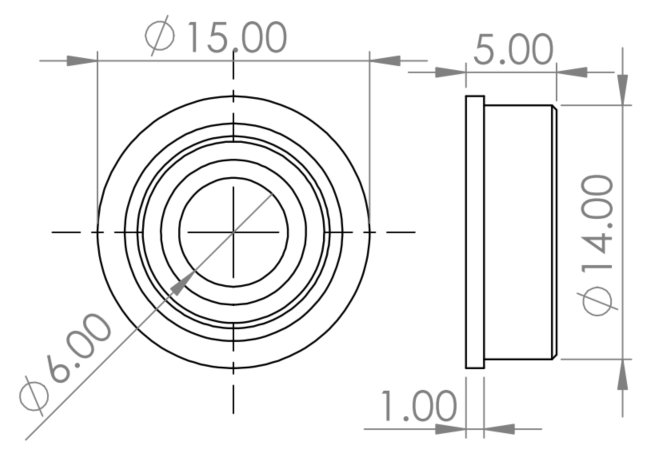

    • ID (inner diameter)/Bore:6 mm
    • OD (outer diameter): 14 mm
    • OD of Flanged Size: 15 mm
    • Width: 5 mm
    • Thickness of Flange: 1 mm
    • Step File



    MFR Part #: 76302-12
    Availability: In stock
