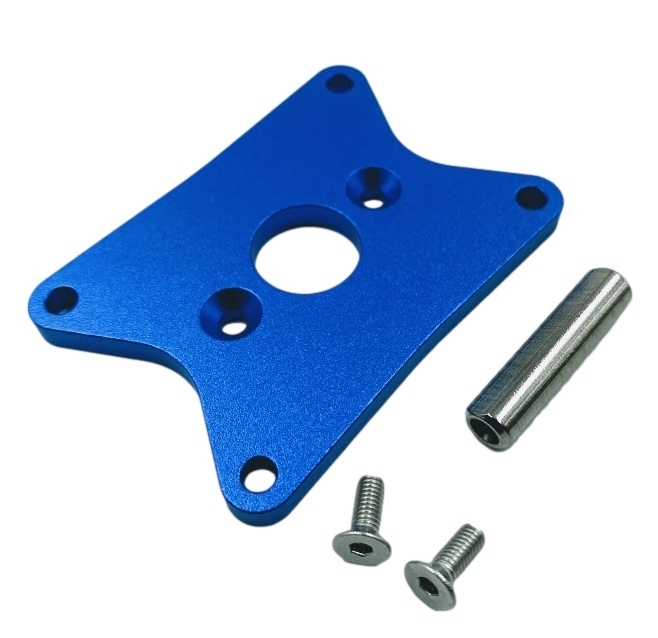

    1-1 Motor Kit - 6mm D-Shaft Kit

    Sometimes you have the need for increased RPM. This 1:1 motor kit can be used with the Studica Maverick or any FTC legal motor such as the Neverest Classic (6600 RPM) or the REV HD Hex motor (6000RPM). The kit includes a faceplate which supports the Studica Robotics building platform. The shaft is press-fit onto the motor's shaft. It is recommended that the shaft be supported by a bearing (we recommend the 76302 for the Studica building system).



    Whether you are constructing an intake, designing a shooter, or creating some other high-speed design, this 1:1 option allow you to get the full motor RPM output.



    Specifications:

    • Material - Anodized 6061-T6 Aluminum

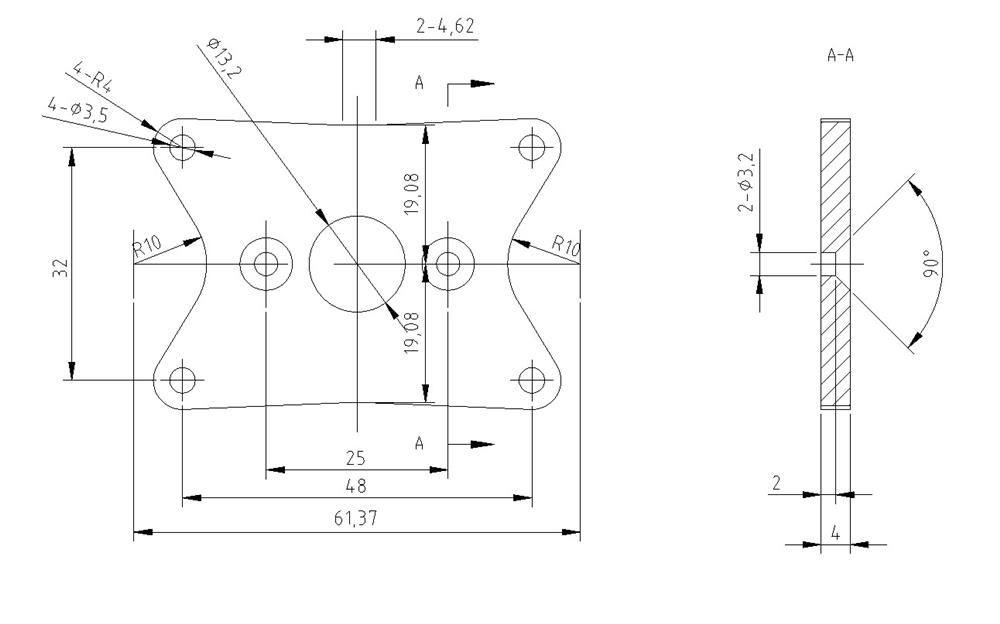

    • Step File
    MFR Part #: 76290
    $7.99
    Availability: 470 in stock
