The 100mm Drive Wheel (4") can be used as a simple wheel providing good traction on carpet and tile flooring. They can also be used for intake systems.


Use with 1/2" hex shaft of use 6mm Shaft Hub to use connect 6mm D-Shaft Axles.

Specifications:

• Diameter:   100mm (4")
• Axial width:  12.5mm
• Hub:  1/2" Inner Hex
• Inner Material: Molded Plastic in Yellow
• Outer Material: TPU Polyurethane in Blue
• Outer Material Durometer: 50A
• Weight: 0.068kg
• Step File

The 100mm (4") Drive Wheel can be used as a simple wheel providing good traction on carpet and tile flooring. They can also be used for intake systems.

Use with 1/2" hex shaft of use 6mm Shaft Hub to use connect 6mm D-Shaft Axles.

Specifications:

• Diameter:   100mm (4")
• Axial width:  25mm
• Hub:  1/2" Inner Hex
• Inner Material: Molded Plastic in Yellow
• Outer Material: TPU Polyurethane in Blue
• Outer Material Durometer: 50A
• Weight: 0.068kg
• Step File

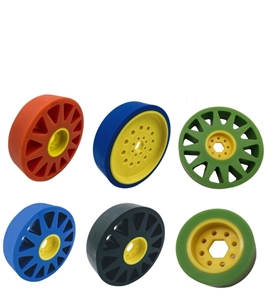

The 100mm (4") Flex Wheel can be used for intake systems and conveyors.

Specifications:

• Diameter:   100mm (4")
• Axial width:  25mm
• Hub:  1/2" Inner Hex
• Inner Material: Molded Plastic in Yellow
• Outer Material: TPU Polyurethane in Green
• Outer Material Durometer: 35A
• Weight: 0.038kg
• Step File

The 100mm (4") Flex Wheel can be used for intake systems and conveyors.

Specifications:

• Diameter:   100mm (4")
• Axial width:  25mm
• Hub:  1/2" Inner Hex
• Inner Material: Molded Plastic in Yellow
• Outer Material: TPU Polyurethane in Orange
• Outer Material Durometer: 40A
• Weight: 0.038kg
• Step File

The 100mm (4") Flex Wheel can be used for intake systems and conveyors.

Specifications:

• Diameter:   100mm (4")
• Axial width:  25mm
• Hub:  1/2" Inner Hex
• Inner Material: Molded Plastic in Yellow
• Outer Material: TPU Polyurethane in Blue
• Outer Material Durometer: 50A
• Weight: 0.038kg
• Step File

The 100mm (4") Flex Wheel can be used for intake systems and conveyors.

Specifications:

• Diameter:   100mm (4")
• Axial width:  25mm
• Hub:  1/2" Inner Hex
• Inner Material: Molded Plastic in Yellow
• Outer Material: TPU Polyurethane in Black
• Outer Material Durometer: 60A
• Weight: 0.038kg
• Step File

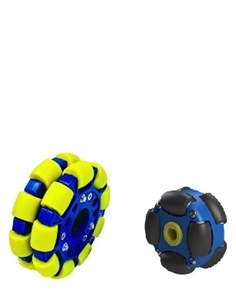

The 100mm (4 inch)  Double Plastic Omni Wheel provides rotational and sideways 360° maneuverability.  Great for omni directional movement and rotation, easy direction control and tracking, and for fast turning,

Specifications:

• Diameter:   100mm (4")
• Axial width:  16mm
• Hub:    6mm (included)
• Number of plate:  2
• Number of roller: 18
• Body material:    Nylon
• Roller material:   Rubber
• Roller diameter:  19mm
• Net weight:          275g
• Load capacity:    20kg
• Step File

• Diameter: 110mm
• Width: 45mm
• Inner diameter of wheel frame: 75mm
• Hexagon connector: 12mm
• Unit weight: 128g
• 6mm axle adopter

The 50mm (2") Drive Wheel can be used as a simple wheel providing good traction on carpet and tile flooring. They can also be used for intake systems.

Use with 1/2" hex shaft of use 6mm Shaft Hub to use connect 6mm D-Shaft Axles.

Specifications:

• Diameter:   50mm (2")
• Axial width:  25mm
• Hub:  1/2" Inner Hex
• Inner Material: Molded Plastic in Yellow
• Outer Material: TPU Polyurethane in Green
• Outer Material Durometer: 35A
• Weight: 0.038kg
• Step File

The 50mm (2") Drive Wheel can be used as a simple wheel providing good traction on carpet and tile flooring. They can also be used for intake systems.

Use with 1/2" hex shaft of use 6mm Shaft Hub to use connect 6mm D-Shaft Axles.

Specifications:

• Diameter:   40mm (2")
• Axial width:  25mm
• Hub:  1/2" Inner Hex
• Inner Material: Molded Plastic in Yellow
• Outer Material: TPU Polyurethane in Orange
• Outer Material Durometer: 40A
• Weight: 0.038kg
• Step File

The 50mm (2") Drive Wheel can be used as a simple wheel providing good traction on carpet and tile flooring. They can also be used for intake systems.

Use with 1/2" hex shaft of use 6mm Shaft Hub to use connect 6mm D-Shaft Axles.

Specifications:

• Diameter:   50mm (2")
• Axial width:  25mm
• Hub:  1/2" Inner Hex
• Inner Material: Molded Plastic in Yellow
• Outer Material: TPU Polyurethane in Blue
• Outer Material Durometer: 50A
• Weight: 0.038kg
• Step File

The 50mm (2") Drive Wheel can be used as a simple wheel providing good traction on carpet and tile flooring. They can also be used for intake systems.

Use with 1/2" hex shaft of use 6mm Shaft Hub to use connect 6mm D-Shaft Axles.

Specifications:

• Diameter:   50mm (2")
• Axial width:  25mm
• Hub:  1/2" Inner Hex
• Inner Material: Molded Plastic in Yellow
• Outer Material: TPU Polyurethane in Black
• Outer Material Durometer: 60A
• Weight: 0.038kg
• Step File

The 75mm Drive Wheel can be used as a simple wheel providing good traction on carpet and tile flooring. They can also be used for intake systems.

Use with 1/2" hex shaft of use 6mm Shaft Hub to use connect 6mm D-Shaft Axles.

Specifications:

• Diameter:   75mm
• Axial width:  12.5mm
• Hub:  1/2" Inner Hex
• Inner Material: Molded Plastic in Yellow
• Outer Material: TPU Polyurethane in Black
• Outer Material Durometer: 60A
• Weight: 0.05kg
• Step File

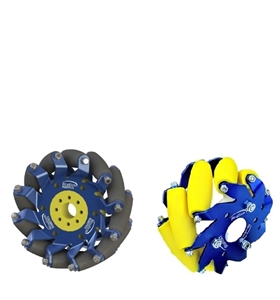

Studica 100mm Aluminum Mecanum Wheel Left and Right Slant w/6mm Hub and  steel ball bearings. With blue aluminium frame and yellow rollers.  Wheel comprised of 9 yellow rollers is able to move in any direction. Rollers are set at 45° to the axis of rotation of the wheel.  Rollers are mounted with steel ball bearings,making roll more fluent.

 Wheel Specifications:

• Diameter:                                                100mm
• Width:                                                       50m
• Number of Rollers:                                 9
• Number of Plates each wheel:             2
• Body material:                                        Aluminium alloy
• Roller material:                                       Polyethylene (PE) and Polypropylene (PP)
• Spacer Material:                                     Nylon
• Length of roller:                                     19mm
• Weight:                                                    354gm

Hub Specifications:

• Inside Diameter:                                    6mm
• Outside Diameter :                                22mm
• Bore Length:                                          15mm
• Weight:                                                   32g

Studica 100mm Aluminum Mecanum Wheel Left and Right Slant w/6mm Hub and  steel ball bearings. With blue aluminium frame and yellow rollers.  Wheel comprised of 9 yellow rollers is able to move in any direction. Rollers are set at 45° to the axis of rotation of the wheel.  Rollers are mounted with steel ball bearings,making roll more fluent.

 Wheel Specifications:

• Diameter:                                                100mm
• Width:                                                       50m
• Number of Rollers:                                 9
• Number of Plates each wheel:             2
• Body material:                                        Aluminium alloy
• Roller material:                                       Polyethylene (PE) and Polypropylene (PP)
• Spacer Material:                                     Nylon
• Length of roller:                                     19mm
• Weight:                                                    354gm

Hub Specifications:

• Inside Diameter:                                    6mm
• Outside Diameter :                                22mm
• Bore Length:                                          15mm
• Weight:                                                   32g

Studica 100mm Aluminum Mecanum Wheel Left and Right Slant w/6mm Hub and  steel ball bearings. With blue aluminium frame and yellow rollers.  Wheel comprised of 9 yellow rollers is able to move in any direction. Rollers are set at 45° to the axis of rotation of the wheel.  Rollers are mounted with steel ball bearings,making roll more fluent.

 Wheel Specifications:

• Diameter:                                                100mm
• Width:                                                       50m
• Number of Rollers:                                 9
• Number of Plates each wheel:             2
• Body material:                                        Aluminium alloy
• Roller material:                                       Polyethylene (PE) and Polypropylene (PP)
• Spacer Material:                                     Nylon
• Length of roller:                                     19mm
• Weight:                                                    354gm

Hub Specifications:

• Inside Diameter:                                    6mm
• Outside Diameter :                                22mm
• Bore Length:                                          15mm
• Weight:                                                   32g

Studica 100mm Aluminum Mecanum Wheel w/6mm Hub. With blue aluminium frame and yellow rollers.  Wheel comprised of 9 yellow rollers is able to move in any direction. Rollers are set at 45° to the axis of rotation of the wheel.

 Wheel Specifications:

• Diameter:                                                100mm
• Width:                                                       50m
• Number of Rollers:                                 9
• Number of Plates each wheel:             2
• Body material:                                        Aluminium alloy
• Roller material:                                       Polyethylene (PE) and Polypropylene (PP)
• Spacer Material:                                     Nylon
• Length of roller:                                     19mm
• Weight:                                                    354gm
• Step File

Hub Specifications:

• Inside Diameter:                                    6mm
• Outside Diameter :                                22mm
• Bore Length:                                          15mm
• Weight:                                                   32g

Studica 100mm Aluminum Mecanum Wheel w/6mm Hub. With blue aluminium frame and yellow rollers.  Wheel comprised of 9 yellow rollers is able to move in any direction. Rollers are set at 45° to the axis of rotation of the wheel.

 Wheel Specifications:

• Diameter:                                                100mm
• Width:                                                       50m
• Number of Rollers:                                 9
• Number of Plates each wheel:             2
• Body material:                                        Aluminium alloy
• Roller material:                                       Polyethylene (PE) and Polypropylene (PP)
• Spacer Material:                                     Nylon
• Length of roller:                                     19mm
• Weight:                                                    354gm
• Step File

Hub Specifications:

• Inside Diameter:                                    6mm
• Outside Diameter :                                22mm
• Bore Length:                                          15mm
• Weight:                                                   32g

Studica 100mm Aluminum Mecanum Wheel w/6mm Hub. With blue aluminium frame and yellow rollers.  Wheel comprised of 9 yellow rollers is able to move in any direction. Rollers are set at 45° to the axis of rotation of the wheel.

 Wheel Specifications:

• Diameter:                                                100mm
• Width:                                                       50m
• Number of Rollers:                                 9
• Number of Plates each wheel:             2
• Body material:                                        Aluminium alloy
• Roller material:                                       Polyethylene (PE) and Polypropylene (PP)
• Spacer Material:                                     Nylon
• Length of roller:                                     19mm
• Weight:                                                    354gm
• Step File

Hub Specifications:

• Inside Diameter:                                    6mm
• Outside Diameter :                                22mm
• Bore Length:                                          15mm
• Weight:                                                   32g

Includes,

• 4 - 100mm Drive Wheel, 50A, 12.5mm wide, 1/2" Inner Hex, Blue  76261
• 4 - 100mm Drive Wheel, 50A, 25mm wide, 1/2" Inner Hex, Blue  76262
• 4 - 50mm Drive Wheel, 50A, 25mm wide, 1/2" Inner Hex, Blue  76269
• 4 - Omni Wheel (100mm, Double Plastic, w/ integrated 6mm Hub)  76260
• 2 - 6mm x 96mm D-Shaft (6 pack)  76161-6
• 1 - 6mm x 432mm D-Shaft (2 pack)  76162-2
• 1 - Bushing Bronze 6mm ID x 8mm OD (12 Pack)  76300-12
• 1 - Bushing Bronze 6mm ID x 14mm OD (12 Pack)  76301-12
• 1 - Flange Bearing  6mm ID, 14mm OD, 15mm Flange (12 Pack)  76302-12
• 3 - 6mm Shaft Hub (4 pack)  76284-4
• 2 - Collar 6mm ID D-Shaft, 12mm OD (6 pack)  76304-6
• 1 - Shaft Spacer Plastic 6mm ID x 10mm OD x 1mm L (24 pack)  76305-24

The 100mm Slim Mecanum Wheel Set comes with 2 left and 2 right, and  steel ball bearings. With blue aluminium frame and black rollers.  Wheel comprised of 9 yellow rollers is able to move in any direction. Rollers are set at 45° to the axis of rotation of the wheel.  Rollers are mounted with steel ball bearings, making roll more fluent.

 Wheel Specifications:

• Diameter:                                                100mm
• Width:                                                       50m
• Number of Rollers:                                   9
• Number of Plates each wheel:                2
• Body material:                                        Aluminium alloy
• Roller material:                                       Polyethylene (PE) and Polypropylene (PP)
• Spacer Material:                                     Nylon
• Length of roller:                                     19mm
• Weight:                                                   354gm

Hub Specifications:

• Inside Diameter:                                    6mm
• Outside Diameter :                                22mm
• Bore Length:                                          15mm
• Weight:                                                   32g

The 38mm Omni Wheel was designed as an odometry wheel that can fit inside most channel sizes. For ease of use, three cores were designed to fit 6mm D-Shaft, 5mm Hex Shaft, and 7mm Hex Shaft. The wheel is open for easy use in any ecosystem with the provided different-sized cores.

Specifications:

• Diameter: 38mm
• Number of rollers: 8
• Body Material: Delrin
• Roller Material: TPE/TPU 80A
• Max Load: 2kg
• Weight:


Includes,

• 38mm Omni wheel
• 38mm 6mm D-Shaft Hub, pre-installed
• 38mm 5mm Hex Shaft Hub
• 38mm 7mm Hex Shaft
