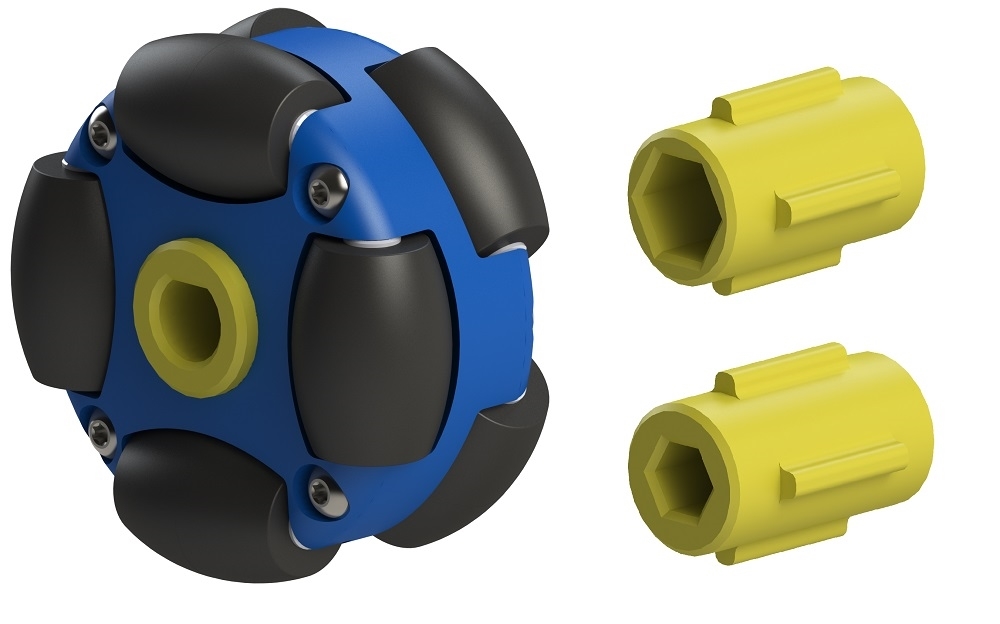

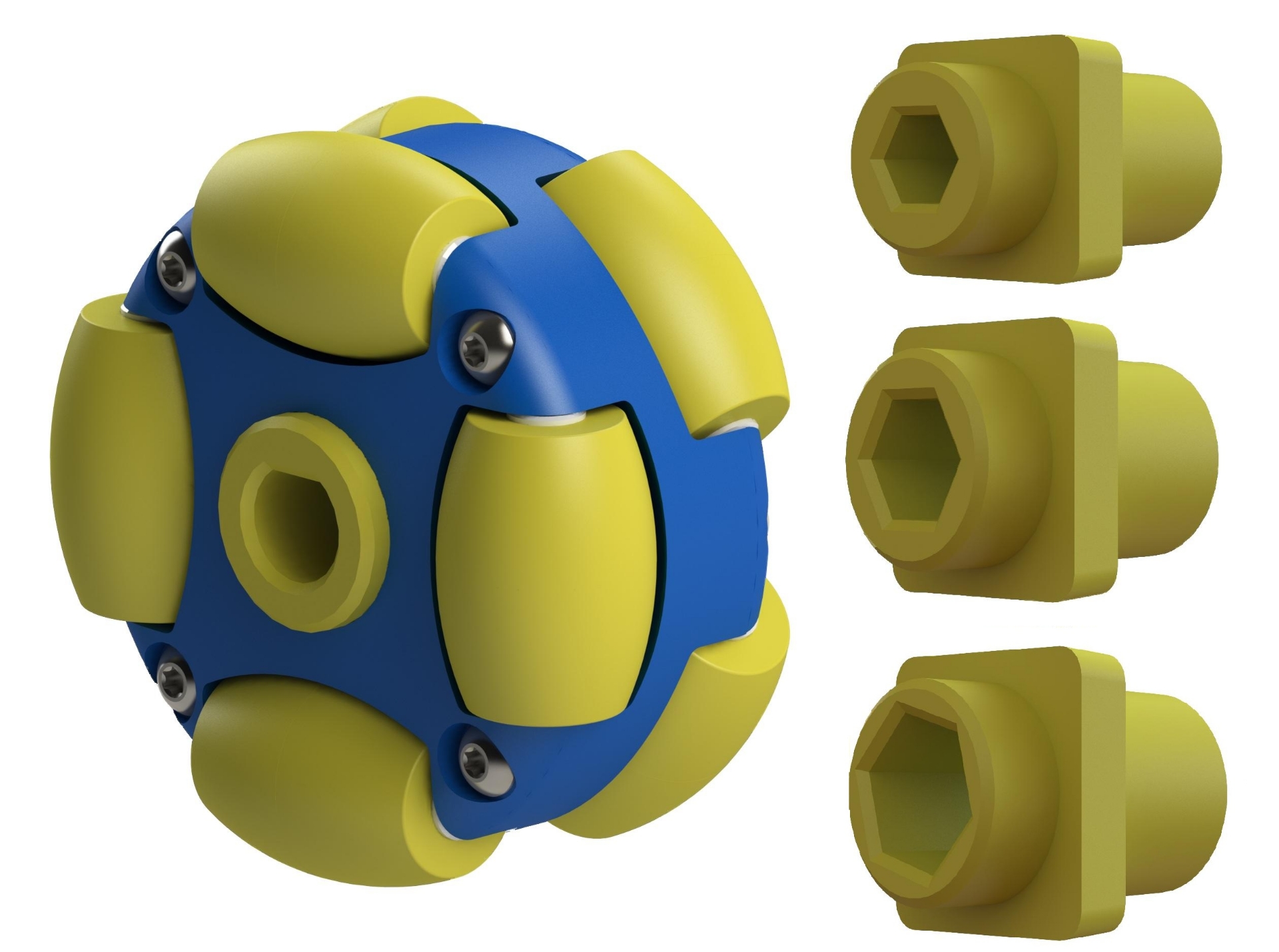

    38mm Omni Wheel

    Be the first to review this product

    The 38mm Omni Wheel was designed as an odometry wheel that can fit inside most channel sizes. For ease of use, three cores were designed to fit 6mm D-Shaft, 5mm Hex Shaft, and 7mm Hex Shaft. The wheel is open for easy use in any ecosystem with the provided different-sized cores.



    Specifications:

    • Diameter: 38mm
    • Number of rollers: 8
    • Body Material: Delrin
    • Roller Material: TPE/TPU 80A
    • Max Load: 2kg
    • Weight:


    Includes,

    • 38mm Omni wheel
    • 38mm 6mm D-Shaft Hub, pre-installed
    • 38mm 5mm Hex Shaft Hub
    • 38mm 7mm Hex Shaft
    MFR Part #: 76259
    $7.99
