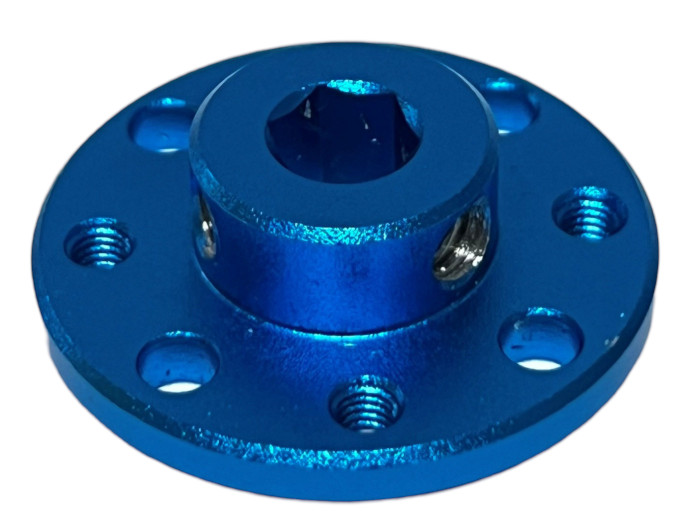

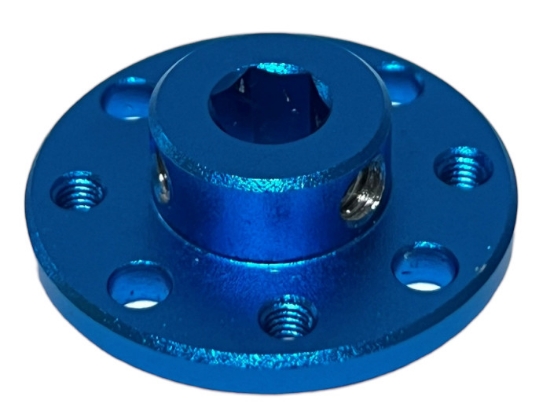

6mm Hex Shaft Hub (4 pack)

Precision Hub for Hex-Shaft Couplings

The Studica Robotics 6 mm Low Profile Hex Shaft Clamping Hub V2 is engineered to deliver a secure and compact coupling between your motor or drive shaft and wheels, sprockets, or other mechanical components. With its 6 mm hex-shaft ID and low profile form, it's ideal for tight-space and high-precision builds.  Made of aluminum, the Studica Robotics Clamping 6mm Hex Shaft Hub-V2 is used with our wheels.

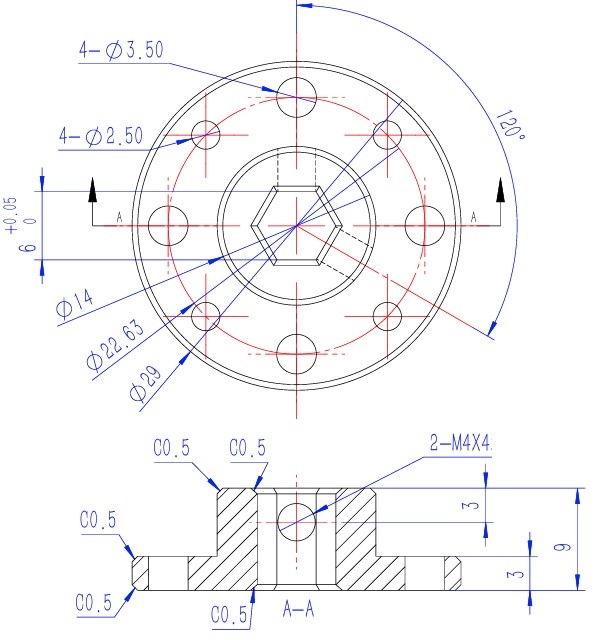

Step File

The Studica Robotics 6mm Hex shaft collar clamp cay be used with the 6mm D-Shape Shaft to secure wheels in their position.

This 5mm Spacer is used to space gears, sprockets, wheels, and other parts along a 6mm Hex shaft. Mix and match various spacer lengths.

This Studica Robotics 1mm nylon spacer 24-pack is used to space gears, sprockets, wheels, and other parts along a 6mm Hex shaft. Mix and match with various spacer lengths.

This 1mm Spacer is used to space gears, sprockets, wheels, and other parts along a 6mm Hex shaft. Mix and match various spacer lengths.

The Studica Robotics 6mm Hex Shaft Face Bearing Block can be mounted on any channel and bracket allowing for a 6mm ID through hole for 6mm shafts (axles). The block has a permanently installed Standard Sealed Bearing and has 8 x M3 tapped through holes for easy mounting.

The Studica Robotics Hex Shaft Collar is 6mm ID and 12mm OD. The inside diameter will fit any of the Hex Shaft axles.
