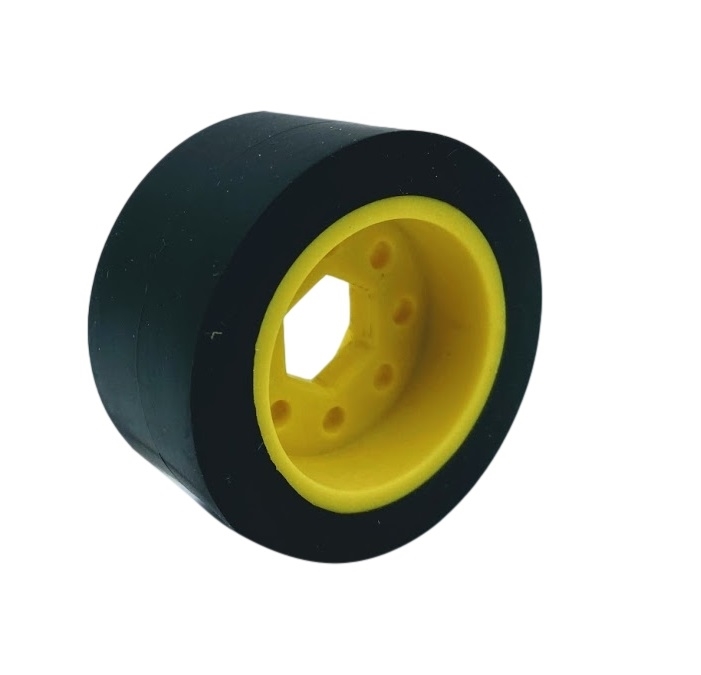

50mm Drive Wheel - 60A - 25mm wide - 1/2" Inner Hex - Black

Includes,

• 4 - 100mm Drive Wheel, 50A, 12.5mm wide, 1/2" Inner Hex, Blue  76261
• 4 - 100mm Drive Wheel, 50A, 25mm wide, 1/2" Inner Hex, Blue  76262
• 4 - 50mm Drive Wheel, 50A, 25mm wide, 1/2" Inner Hex, Blue  76269
• 4 - Omni Wheel (100mm, Double Plastic, w/ integrated 6mm Hub)  76260
• 2 - 6mm x 96mm D-Shaft (6 pack)  76161-6
• 1 - 6mm x 432mm D-Shaft (2 pack)  76162-2
• 1 - Bushing Bronze 6mm ID x 8mm OD (12 Pack)  76300-12
• 1 - Bushing Bronze 6mm ID x 14mm OD (12 Pack)  76301-12
• 1 - Flange Bearing  6mm ID, 14mm OD, 15mm Flange (12 Pack)  76302-12
• 3 - 6mm Shaft Hub (4 pack)  76284-4
• 2 - Collar 6mm ID D-Shaft, 12mm OD (6 pack)  76304-6
• 1 - Shaft Spacer Plastic 6mm ID x 10mm OD x 1mm L (24 pack)  76305-24

The 100mm Drive Wheel (4") can be used as a simple wheel providing good traction on carpet and tile flooring. They can also be used for intake systems.


Use with 1/2" hex shaft of use 6mm Shaft Hub to use connect 6mm D-Shaft Axles.

Specifications:

• Diameter:   100mm (4")
• Axial width:  12.5mm
• Hub:  1/2" Inner Hex
• Inner Material: Molded Plastic in Yellow
• Outer Material: TPU Polyurethane in Blue
• Outer Material Durometer: 50A
• Weight: 0.068kg
• Step File

The 100mm (4") Drive Wheel can be used as a simple wheel providing good traction on carpet and tile flooring. They can also be used for intake systems.

Use with 1/2" hex shaft of use 6mm Shaft Hub to use connect 6mm D-Shaft Axles.

Specifications:

• Diameter:   100mm (4")
• Axial width:  25mm
• Hub:  1/2" Inner Hex
• Inner Material: Molded Plastic in Yellow
• Outer Material: TPU Polyurethane in Blue
• Outer Material Durometer: 50A
• Weight: 0.068kg
• Step File

The 100mm (4") Flex Wheel can be used for intake systems and conveyors.

Specifications:

• Diameter:   100mm (4")
• Axial width:  25mm
• Hub:  1/2" Inner Hex
• Inner Material: Molded Plastic in Yellow
• Outer Material: TPU Polyurethane in Green
• Outer Material Durometer: 35A
• Weight: 0.038kg
• Step File

The 100mm (4") Flex Wheel can be used for intake systems and conveyors.

Specifications:

• Diameter:   100mm (4")
• Axial width:  25mm
• Hub:  1/2" Inner Hex
• Inner Material: Molded Plastic in Yellow
• Outer Material: TPU Polyurethane in Orange
• Outer Material Durometer: 40A
• Weight: 0.038kg
• Step File

The 100mm (4") Flex Wheel can be used for intake systems and conveyors.

Specifications:

• Diameter:   100mm (4")
• Axial width:  25mm
• Hub:  1/2" Inner Hex
• Inner Material: Molded Plastic in Yellow
• Outer Material: TPU Polyurethane in Blue
• Outer Material Durometer: 50A
• Weight: 0.038kg
• Step File

The 100mm (4") Flex Wheel can be used for intake systems and conveyors.

Specifications:

• Diameter:   100mm (4")
• Axial width:  25mm
• Hub:  1/2" Inner Hex
• Inner Material: Molded Plastic in Yellow
• Outer Material: TPU Polyurethane in Black
• Outer Material Durometer: 60A
• Weight: 0.038kg
• Step File

The 50mm (2") Drive Wheel can be used as a simple wheel providing good traction on carpet and tile flooring. They can also be used for intake systems.

Use with 1/2" hex shaft of use 6mm Shaft Hub to use connect 6mm D-Shaft Axles.

Specifications:

• Diameter:   50mm (2")
• Axial width:  25mm
• Hub:  1/2" Inner Hex
• Inner Material: Molded Plastic in Yellow
• Outer Material: TPU Polyurethane in Green
• Outer Material Durometer: 35A
• Weight: 0.038kg
• Step File

The 50mm (2") Drive Wheel can be used as a simple wheel providing good traction on carpet and tile flooring. They can also be used for intake systems.

Use with 1/2" hex shaft of use 6mm Shaft Hub to use connect 6mm D-Shaft Axles.

Specifications:

• Diameter:   40mm (2")
• Axial width:  25mm
• Hub:  1/2" Inner Hex
• Inner Material: Molded Plastic in Yellow
• Outer Material: TPU Polyurethane in Orange
• Outer Material Durometer: 40A
• Weight: 0.038kg
• Step File

The 50mm (2") Drive Wheel can be used as a simple wheel providing good traction on carpet and tile flooring. They can also be used for intake systems.

Use with 1/2" hex shaft of use 6mm Shaft Hub to use connect 6mm D-Shaft Axles.

Specifications:

• Diameter:   50mm (2")
• Axial width:  25mm
• Hub:  1/2" Inner Hex
• Inner Material: Molded Plastic in Yellow
• Outer Material: TPU Polyurethane in Blue
• Outer Material Durometer: 50A
• Weight: 0.038kg
• Step File

The 6mm Shaft hub is used to connect any Studica wheel and the Studica motor or any motor with a 6mm shaft.

Specifcation:

• Material: 6061-T6 Aluminum
• 6mm ID
• Hole pattern for connecting to structure
• Step File
