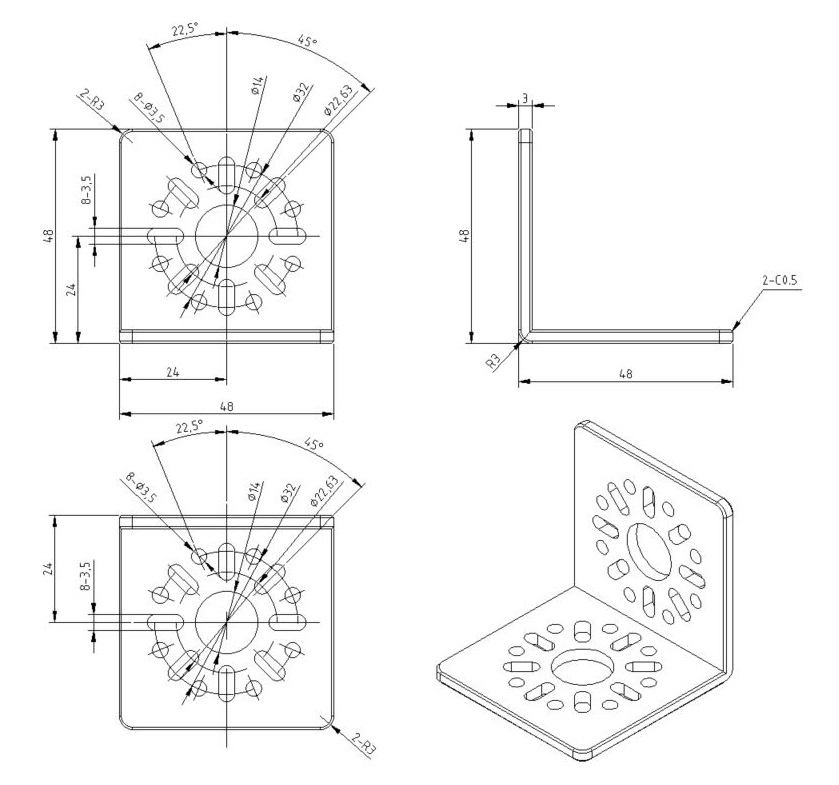

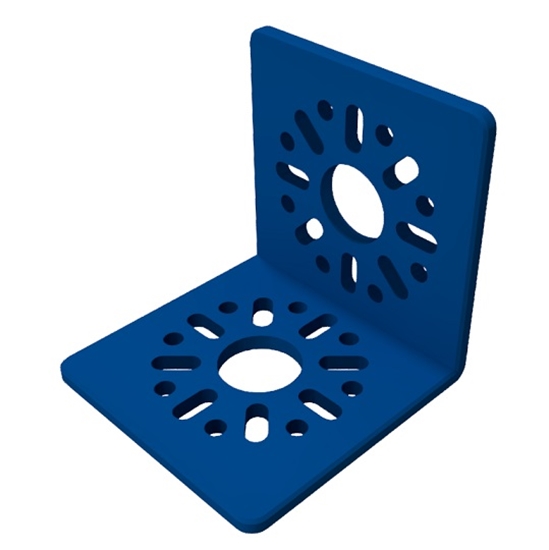

Made from 3mm thick heavy 6061-T6 Aluminum, the L Bracket is 48mm x 48mm and is used outside the U Channel or Low profile channel. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.
Specifications:
The Studica End Piece Plate is commonly fastened to the inside end of the U Channel. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.
Material: 6061-T6 Aluminum
Made from 3mm thick heavy 6061-T6 Aluminum, the Inside L Bracket is 42mm x 45mm and is used inside the U Channel or Low profile channel.As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.
The Motor Mount Plate is used with the Maverick 12V DC Gear Motor (Part# 75001) to attach it inside the anyone of the U Channels 76010 to 76018. This is an example of a chassis with 4 motors mounted inside the U-Channel using a Motor Mounting Plate.
The Servo Horn 25T is made of anodized 6061-T6 Aluminum and is used with the Multi-Mode Smart Servo (75002) and the Studica building structure.
Use the Motor Mount Clamp kit when fastening motors on body and attaching kit to channel and other structure.
The Servo Mount Flat Plate is one option to mount the Multi-Mode Smart Servo (75002) to the Studica building structure.
The 6mm D-Shaft Servo Hub 25T is made of anodized 6061-T6 Aluminum and is used to connect a servo motor to a D-Shaft axel.
The 90 Degree Bracket is perfect for connecting two channels pieces at 90 angle from each other. Each side is 48mm wide to fit perfectly on the channel. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.
The 135 Degree Bracket is perfect for connecting two channels pieces at 45 degrees from each other. Each side is 48mm wide to fit perfectly on the channel. Used for intake systems, elevator systems, or structure where 45 degrees is required. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.
The Studica Adjustable Angle Flat Bracket is perfect for connecting two channels pieces together at various angles. It is 3mm thick and as with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.
The T Bracket is perfect for connecting two or three channels together. Each side is 48mm wide to fit on the U Channel, low profile channel or other brackets. The overall size is 144mm x 96mm
The X Bracket is perfect for connecting four channels pieces together. Each of the 4 sections is 48mm wide and the overall dimmension is 144mm x 144mm.
Made from 3mm thick heavy 6061-T6 Aluminum, the Inside U Bracket is 42mm x 45mm and is used inside the U Channel or Low profile channel.. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.
Includes,
Use this bracket to secure the IR Range Sensor to the Studica structure.
