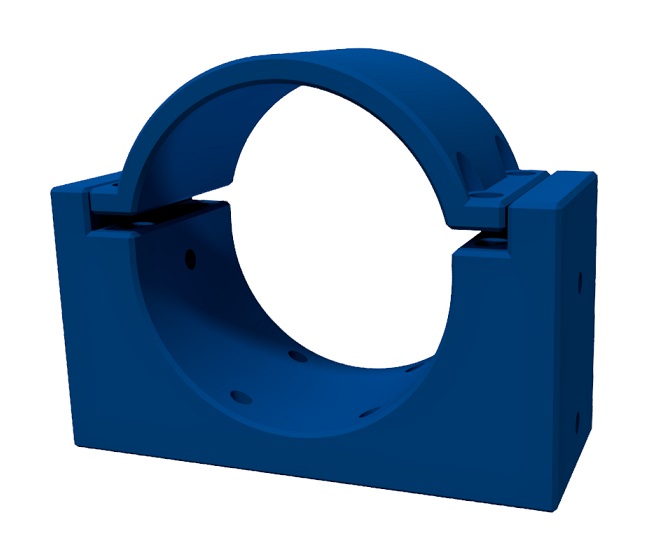

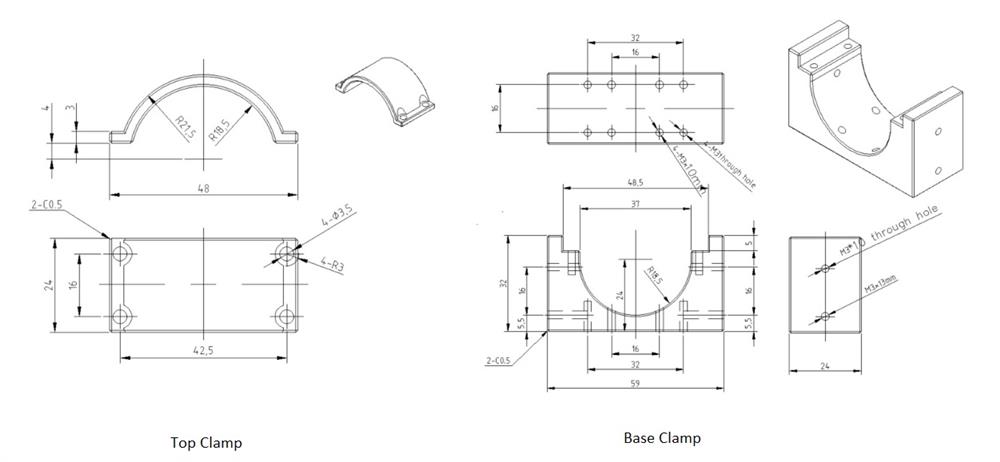

Use the Motor Mount Clamp kit when fastening motors on body and attaching kit to channel and other structure.
The Motor Mount Plate is used with the Maverick 12V DC Gear Motor (Part# 75001) to attach it inside the anyone of the U Channels 76010 to 76018. This is an example of a chassis with 4 motors mounted inside the U-Channel using a Motor Mounting Plate.
The Servo Mount Flat Plate is one option to mount the Multi-Mode Smart Servo (75002) to the Studica building structure.
The Studica End Piece Plate is commonly fastened to the inside end of the U Channel. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.
Specifications:
Material: 6061-T6 Aluminum
The Servo Horn 25T is made of anodized 6061-T6 Aluminum and is used with the Multi-Mode Smart Servo (75002) and the Studica building structure.
Made from 3mm thick heavy 6061-T6 Aluminum, the L Bracket is 48mm x 48mm and is used outside the U Channel or Low profile channel. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.
The Studica U Channel is 3mm thick and has a 48mm x 48mm profile. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.
The Servo Standard Front Mounting Bracket is one option to mount the Multi-Mode Smart Servo (75002) to the Studica building structure.
Includes,
Our improved and stronger 12-volt DC motor with 100 rpm and 708 oz-in. of torque. The motor features a built-in, high-resolution Hall effect encoder for precise motor control and comes with an encoder cable.
A 61:1 gearbox comes standard.
Motor Specs
Function
Min
Nom
Max
Input Voltage
—
12VDC
Gear Ratio
1:61
No Load RPM
88
100
112
No Load Current
600mA
Rated Speed
68
80
92
Rated Current
2.2A
Rated Torque
139oz-in
Stall Current
11A
Stall Torque
708oz-in
Direction
CW
Encoder Voltage
4
5
Encoder Current
6mA
Encoder CPR
6
Output Counts per Revolution of Output Shaft (cpr) 1,464 pulses
