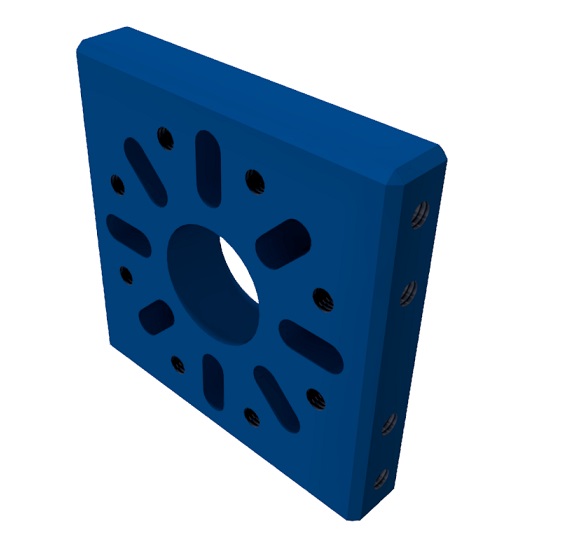

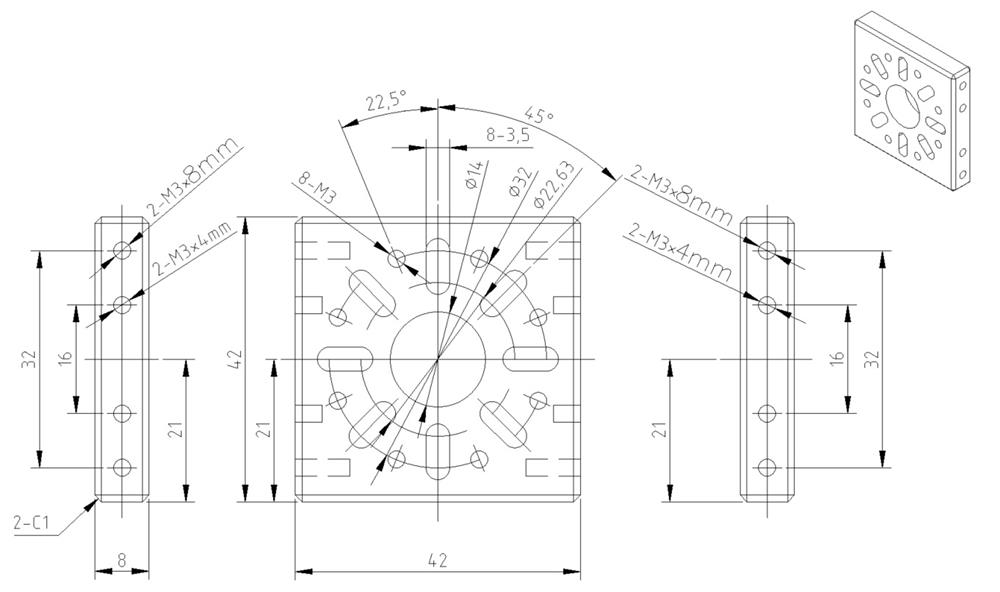

    End Piece Plate (2 pack)

    The Studica End Piece Plate is commonly fastened to the inside end of the U Channel. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.

    Specifications:

    Material: 6061-T6 Aluminum





    MFR Part #: 76143-2
    $9.99
    Availability: 235 in stock
