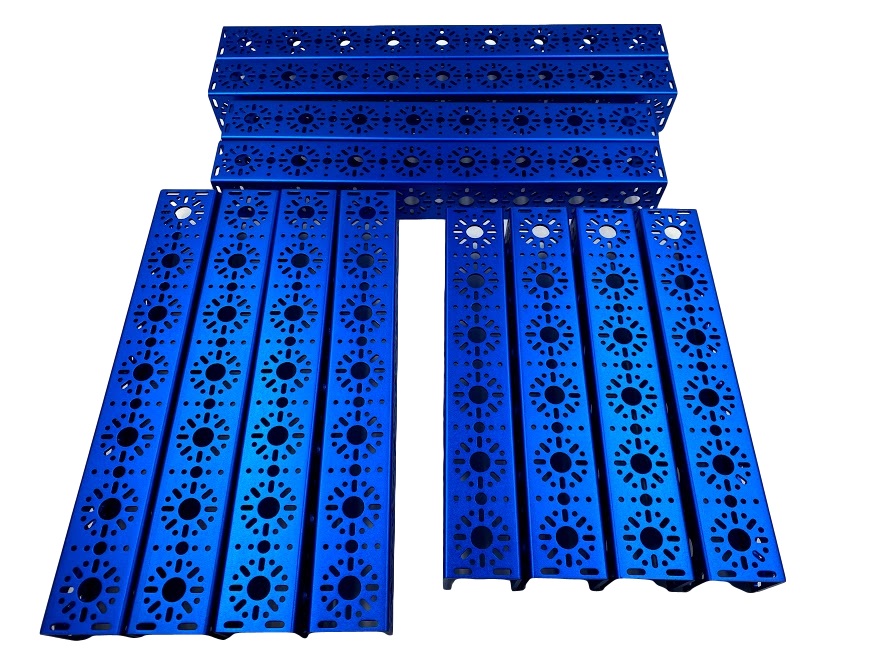

Large Channel Pack

Be the first to review this product

Includes,

2 - 432mm U-Channel 76010
2 - 384mm U-Channel 76011
4 - 336mm U-Channel 76012
2 - 288mm U-Channel (2 pack) 76013-2

MFR Part #: 70250

Request a Quote

In stock

Qty:

Reviews

Write your own review

Product can be reviewed only after purchase
Only registered users can write reviews

Review title: *

Review text: *

Rating:

Bad
Excellent

Customers who bought this item also bought

Maverick 12V DC Gear Motor w/Encoder

#75001

$28.99

(In stock)

Our improved and stronger 12-volt DC motor with 100 rpm and 708 oz-in. of torque. The motor features a built-in, high-resolution Hall effect encoder for precise motor control and comes with an encoder cable.

A 61:1 gearbox comes standard.

Motor Specs
Function	Min	Nom	Max
Input Voltage	—	12VDC	—
Gear Ratio	—	1:61	—
No Load RPM	88	100	112
No Load Current	—	600mA	—
Rated Speed	68	80	92
Rated Current	—	—	2.2A
Rated Torque	—	139oz-in	—
Stall Current	—	—	11A
Stall Torque	708oz-in	—	—
Direction	—	CW	—
Encoder Voltage	4	—	5
Encoder Current	—	6mA	—
Encoder CPR	—	6	—

Output Counts per Revolution of Output Shaft (cpr) 1,464 pulses

Multi-Mode Smart Servo

#75002

$28.99

(In stock)

The Studica Multi-Mode Smart Servo features all-steel gears and large amounts of torque. This angular programmable Servo can fill a variety of roles on your robot or project. In standard mode, it operates on a +/- 150-degree range. Using the Studica Smart Robot Servo Programmer (sold separately) the Multi-mode Smart Servo can be configured to run in continuous, standard, and custom angular mode. In continuous rotation mode, the servo will have proportional speed control based on the PWM signal that you send with your servo controller.

Step File

96mm x 40mm Flat Bracket (2 pack)

#76065-2

$7.89

(In stock)

The Studica Flat Bracket is a very strong 3mm x 40mm wide. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.

Specifications:

Material: 6061-T6 Aluminum
Thickness - 3mm
Width - 40mm
Length - 96mm
Step File

End Piece Plate (2 pack)

#76143-2

$12.99

(In stock)

The Studica End Piece Plate is commonly fastened to the inside end of the U Channel. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.

Specifications:

Material: 6061-T6 Aluminum

Step File

6mm D Shaft Servo Hub 25T

#76149

$6.49

(In stock)

The 6mm D Shaft Servo Hub 25T is made of anodized 6061-T6 Aluminum and is used to connect a servo motor to a D Shaft axel.

Step File

Motor Mount Plate

#76140

$6.99

(In stock)

The Motor Mount Plate is used with the Maverick 12V DC Gear Motor (Part# 75001) to attach it inside the anyone of the U Channels 76010 to 76018. This is an example of a chassis with 4 motors mounted inside the U-Channel using a Motor Mounting Plate.

Step File

6mm D Shaft Face Bearing Block

#76299

$10.89

(In stock)

The Studica 6mm D Shaft Face Bearing Block can be mounted on any Studica channel and bracket providing which will allow for a 6mm ID through hole for 6mm shafts (axles). It has a permanently installed Standard Sealed Bearing. Has 8 x M3 tapped through holes for easy mounting.
