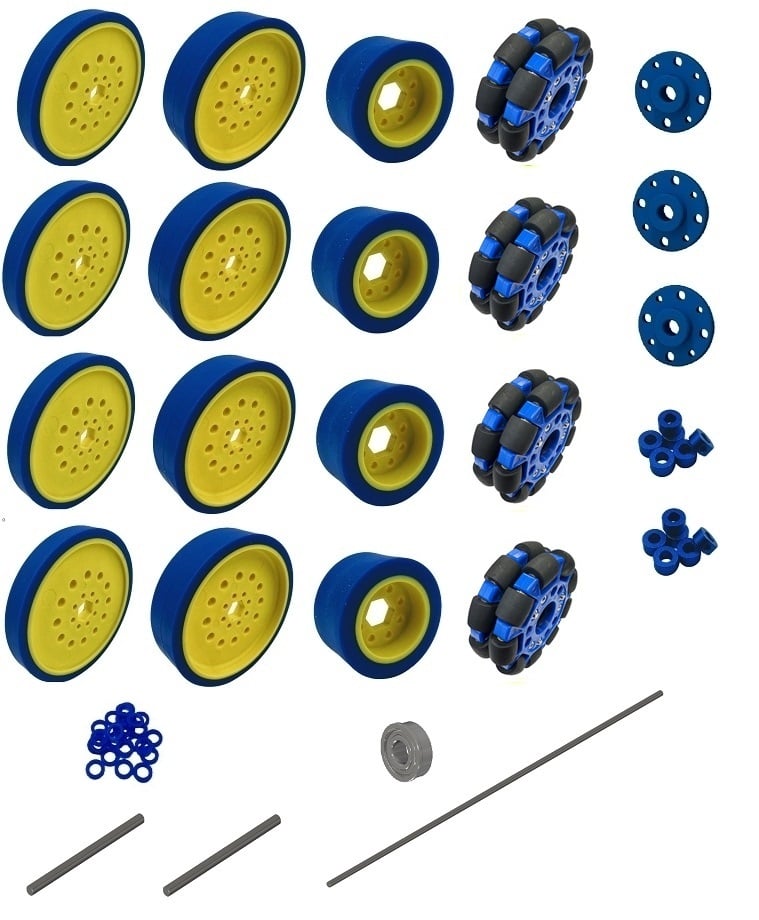

Hex Shaft Wheel Pack

Includes,

• 4 - 100mm Drive Wheel, 50A, 12.5mm wide, 1/2" Inner Hex, Blue  76261
• 4 - 100mm Drive Wheel, 50A, 25mm wide, 1/2" Inner Hex, Blue  76262
• 4 - 50mm Drive Wheel, 50A, 25mm wide, 1/2" Inner Hex, Blue  76269
• 4 - 100mm Omni Wheel  76272
• 2 - 6mm x 96mm D-Shaft (6 pack)  76161-6
• 1 - 6mm x 432mm D-Shaft (2 pack)  76162-2
• 1 - Bushing Bronze 6mm ID x 8mm OD (12 Pack)  76300-12
• 1 - Bushing Bronze 6mm ID x 14mm OD (12 Pack)  76301-12
• 1 - Flange Bearing  6mm ID, 14mm OD, 15mm Flange (12 Pack)  76302-12
• 3 - 6mm Shaft Hub (4 pack)  76284-4
• 2 - Collar 6mm ID D ggggShaft, 12mm OD (6 pack)  76304-6
• 1 - Shaft Spacer Plastic 6mm ID x 10mm OD x 1mm L (24 pack)  76305-24

The 50mm (2") Drive Wheel can be used as a simple wheel providing good traction on carpet and tile flooring. They can also be used for intake systems.

Use with 1/2" hex shaft of use 6mm Shaft Hub to use connect 6mm D-Shaft Axles.

Specifications:

• Diameter:   50mm (2")
• Axial width:  25mm
• Hub:  1/2" Inner Hex
• Inner Material: Molded Plastic in Yellow
• Outer Material: TPU Polyurethane in Blue
• Outer Material Durometer: 50A
• Weight: 0.038kg
• Step File

The 100mm (4") Drive Wheel can be used as a simple wheel providing good traction on carpet and tile flooring. They can also be used for intake systems.

Use with 1/2" hex shaft of use 6mm Shaft Hub to use connect 6mm D-Shaft Axles.

Specifications:

• Diameter:   100mm (4")
• Axial width:  25mm
• Hub:  1/2" Inner Hex
• Inner Material: Molded Plastic in Yellow
• Outer Material: TPU Polyurethane in Blue
• Outer Material Durometer: 50A
• Weight: 0.068kg
• Step File

• 4 - 100mm Drive Wheel, 50A, 12.5mm wide, 1/2" Inner Hex, Blue  76261
• 4 - 100mm Drive Wheel, 50A, 25mm wide, 1/2" Inner Hex, Blue  76262
• 4 - 50mm Drive Wheel, 50A, 25mm wide, 1/2" Inner Hex, Blue  76269
• 4 - 100mm Omni Wheel  76272
• 2 - 6mm x 96mm Hex-Shaft (6 pack)  76161H-6
• 1 - 6mm x 432mm Hex-Shaft (2 pack)  76162H-2
• 1 - Hex-Shaft Flange Bearing  6mm ID, 14mm OD, 15mm Flange (12 Pack)  76302H-12
• 3 - 6mm Hex-Shaft Hub (4 pack)  76284H-4
• 2 - Collar 6mm ID Hex-Shaft, 12mm OD (6 pack)  76304H-6
• 1 - Hex-Shaft Spacer Plastic 6mm ID x 10mm OD x 1mm L (24 pack)  76305-24

The 6mm diameter Hex Shaft is made of stainless steel and is used throughout our building system as drive components. The Hex Shaft profile is used with pulleys, gears and hubs when tightening the set screws and creating a non-slip connection.

The 6mm diameter Hex Shaft is made of stainless steel and is used throughout our building system as drive components. The Hex Shaft profile is used with pulleys, gears and hubs when tightening the set screws and creating a non-slip connection.

The 6mm x 96mm Hex Shaft is made of stainless steel and is used throughout our building system as drive components. The Hex Shaft profile is used with pulleys, gears and hubs when tightening the set screws and creating a non-slip connection.

The Studica Robotics 6mm x 432mm Hex Shaft is made of stainless steel and is used throughout our building system as drive components. The Hex Shaft profile is used with pulleys, gears and hubs when tightening the set screws and creating a non-slip connection.

The 6mm x 140mm Hex Shaft is made of stainless steel and is used throughout our building system as drive components. The Hex Shaft profile is used with pulleys, gears and hubs when tightening the set screws and creating a non-slip connection.
