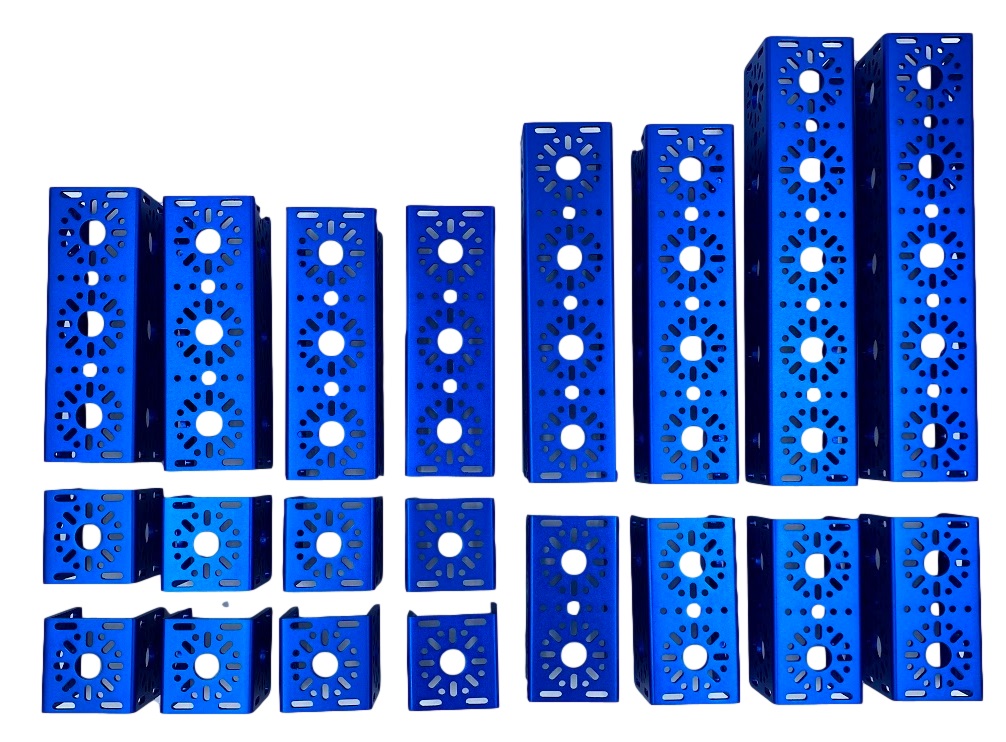

    Small Channel Pack

    Includes,

    • 2 - 240mm U-Channel  76014
    • 2 - 192mm U-Channel  76015
    • 2 - 144mm U-Channel  76016-2
    • 2 - 96mm U-Channel  76017-2
    • 4 - 48mm U-Channel  76018-2
    MFR Part #: 70251
    $129.00
    In stock
    Write your own review
    • Product can be reviewed only after purchase
    • Only registered users can write reviews
    *
    *
    • Bad
    • Excellent
    Customers who bought this item also bought

    Cobra Line Follower Sensor

    #70151
    $9.99
    ( 752 In stock)

    The Cobra Line Follower Array provides 4 X QRE1113 IR reflectance sensor mounted on a 9mm pitch Each sensor is comprised of two parts - an IR emitting LED and an IR sensitive phototransistor. When you apply power to the VCC and GND pins the IR LED inside the sensor will illuminate.

    The Studica Line Sensor Board consists of 4 IR LED/phototransistor pairs, making it a great detector for a line-following robot.  The Line Sensor Board allows the robot to tell objects or surfaces apart based on how dark or light they are. It shines a beam of infrared light out onto the object, and measures how much light is reflected back.

    Each sensor provides a separate analog voltage output. The sensor board is an infrared emitter/receiver that is able to differentiate between a dark surface (with low IR reflectivity – 3.3V to 5V) and a light surface (with high IR reflectivity – 0V to 0.5V). However, this range can vary depended on the installed height of the sensor board.

    The optimum height distance is 3-5 mm; however, the reflectivity values will change depending on distance. A daylight filter is built into the sensor.

    • 5VDC operating voltage (recommended)
    • 70mA supply current
    • Optimal sensing distance: 0.125" (3mm)
    • Step File

    96mm x 40mm Flat Bracket (2 pack)

    #76065-2
    $6.59
    ( 225 In stock)

    The Studica Flat Bracket is a very strong  3mm x 40mm wide. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.

    Specifications:

    • Material: 6061-T6 Aluminum
    • Thickness - 3mm
    • Width - 40mm
    • Length - 96mm
    • Step File

    Maverick 12V DC Gear Motor w/Encoder

    #75001
    $28.99
    ( 3988 In stock)

    The Maverick 12V DC Gear Motor 61:1 w/Encoder was designed for strength and endurance.


    Specifications:

    • Voltage:                      12V DC
    • Amperage                   11A(full stall). Nominal operating current is 2.2A, at 12V it's 26.4W
    • Wattage                      132W
    • Length:                        134mm
    • Gear Ratios:                 61:1
    • Shaft Diameter:            6mm D-Shaft
    • Diameter:                     37mm
    • Stall Torque:                 50.5 kg-cm (702 oz-in)
    • RPM:                             100
    • Encoder:                       Hall effect/Quadrature, 6CPR, 1,464 pulse per revolution
    • Weight:                          326 grams
    • Power cable:                 PP45, 45cm, 14AWG
    • Encoder Cable:             45cm, 22AWG 4-pin
    • Step File

    nominal so operating current is 2.2A so at 12V this would 26.4W

    Multi-Mode Smart Servo

    #75002
    $23.99
    ( 488 In stock)

    The Studica Multi-Mode Smart Servo features all-steel gears and large amounts of torque. This angular programmable Servo can fill a variety of roles on your robot or project. In standard mode, it operates on a +/- 150-degree range. Using the Studica Smart Robot Servo Programmer (sold separately) the Multi-mode Smart Servo can be configured to run in continuous, standard, and custom angular mode. In continuous rotation mode, the servo will have proportional speed control based on the PWM signal that you send with your servo controller.


    Motor Mount Plate

    #76140
    $6.49
    ( 1296 In stock)

    The Motor Mount Plate is used with the Maverick 12V DC Gear Motor  (Part# 75001) to attach it inside the anyone of the U Channels 76010 to 76018. This is an example of a chassis with 4 motors mounted inside the U-Channel using a Motor Mounting Plate.

    Powerpole 45 Extension Cable - 14AWG - 50cm

    #70021
    $12.95
    ( 2452 In stock)

    The Powerpole Extension Cable is 50cm long and 14AWG wire gauge to handle heavier loads.

    End Piece Plate (2 pack)

    #76143-2
    $9.99
    ( 4041 In stock)

    The Studica End Piece Plate is commonly fastened to the inside end of the U Channel. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.

    Specifications:

    Material: 6061-T6 Aluminum
