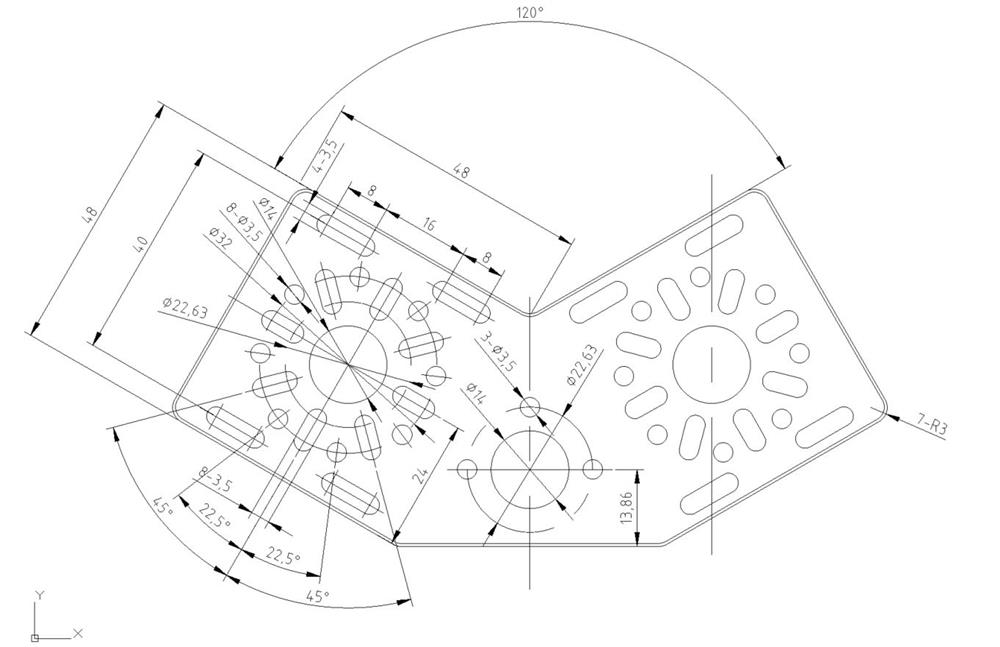

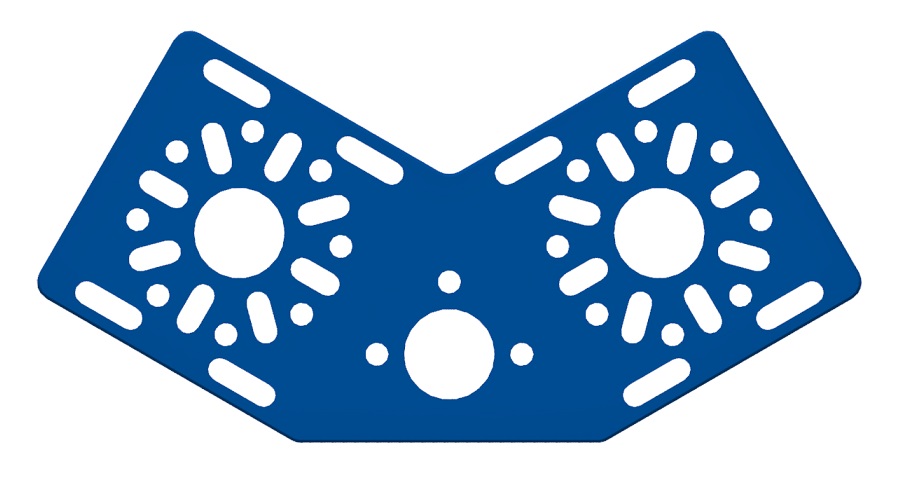

    120 Degree Bracket (2 pack)

    The 120 Degree Bracket is perfect for connecting two channel pieces at 120 degrees from each other. Each side is 48mm wide to fit perfectly on the channel. Use three brackets with 3 channel pieces to make 3 wheeled robots. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.

    Specifications:

    • Material - Anodized 6061-T6 Aluminum
    • Thickness - 3mm
    • Step File



    MFR Part #: 76080-2
    $12.99
    Availability: 204 in stock

    Write your own review
    • Product can be reviewed only after purchase
    • Only registered users can write reviews
    • Bad
    • Excellent

    Customers who bought this item also bought

    End Piece Plate (2 pack)

    #76143-2
    $9.99
    (2601 In stock)

    The Studica End Piece Plate is commonly fastened to the inside end of the U Channel. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.

    Specifications:

    Material: 6061-T6 Aluminum





    Motor Mount Clamp Kit

    #76141
    $10.99
    (1254 In stock)

    Use the Motor Mount Clamp kit when fastening motors on body and attaching kit to channel and other structure.



    48mm U-Channel (2 pack)

    #76018-2
    $5.99
    (900 In stock)

    The Studica U Channel is 3mm thick and has a 48mm x 48mm profile. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.

    Specifications:

    • Material: 6061-T6 Aluminum
    • Thickness - 3mm
    • Height - 48mm
    • Width - 48mm
    • Length - 48mm
    • Weight - 40gms each
    • Hole pattern - 1
    • Step File



    L Bracket (2 pack)

    #76087-2
    $5.99
    (1486 In stock)

    Made from 3mm thick heavy 6061-T6 Aluminum, the L Bracket is 48mm x 48mm and is used outside the U Channel or Low profile channel. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.

    Specifications:

    • Material - Anodized 6061-T6 Aluminum
    • Thickness - 3mm
    • Step File



    6mm Shaft Hub (4 pack)

    #76284-4
    $9.99
    (488 In stock)

    The 6mm Shaft hub is used to connect any Studica wheel and the Studica motor or any motor with a 6mm shaft.

    Specifcation:

    • Material: 6061-T6 Aluminum
    • 6mm ID
    • Hole pattern for connecting to structure
    • Step File

    Motor Mount Plate

    #76140
    $6.49
    (1021 In stock)

    The Motor Mount Plate is used with the Maverick 12V DC Gear Motor  (Part# 75001) to attach it inside the anyone of the U Channels 76010 to 76018. This is an example of a chassis with 4 motors mounted inside the U-Channel using a Motor Mounting Plate.

    Servo Mount Offset Plate

    #76146
    $6.99
    (1048 In stock)

    The Servo Mount Offset Plate is one option to mount the Multi-Mode Smart Servo (75002) to the Studica building structure.
