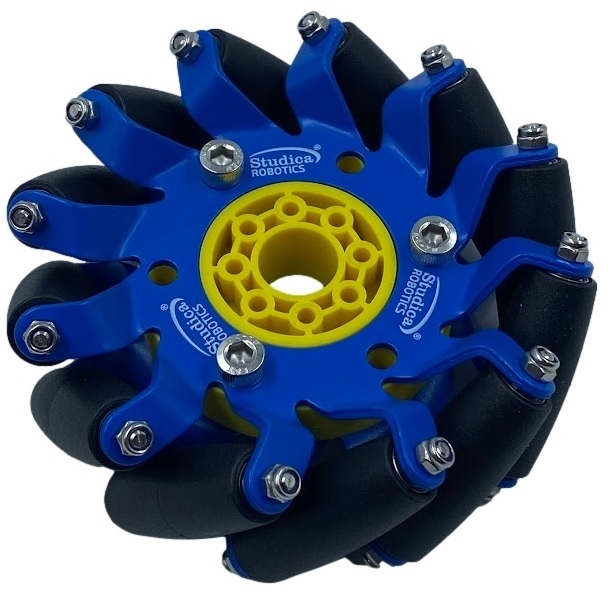

    100mm Slim Mecanum Wheel Set (Bearing Rollers, 2 left, 2 right)

    The 100mm Slim Mecanum Wheel Set comes with 2 left and 2 right, with steel ball bearings, blue steel frame and black rollers.  The wheel comprised of 12 black rollers and is able to move in any direction. Rollers are set at 45° to the axis of rotation of the wheel.  Rollers are mounted with steel ball bearings, making the roll more fluent.

    Step File

    MFR Part #: 76246
    $139.00
    Availability: In stock

     Wheel Specifications:

    • Diameter:                                                100mm
    • Width:                                                      38m
    • Number of Rollers:                                 12
    • Number of Plates each wheel:               2
    • Body material:                                         Steel
    • Roller material:                                        Polyethylene (PE) and Polypropylene (PP)
    • Spacer Material:                                     Delrin



    Write your own review
    • Product can be reviewed only after purchase
    • Only registered users can write reviews
    *
    *
    • Bad
    • Excellent

     Wheel Specifications:

    • Diameter:                                                100mm
    • Width:                                                      38m
    • Number of Rollers:                                 12
    • Number of Plates each wheel:               2
    • Body material:                                         Steel
    • Roller material:                                        Polyethylene (PE) and Polypropylene (PP)
    • Spacer Material:                                     Delrin
