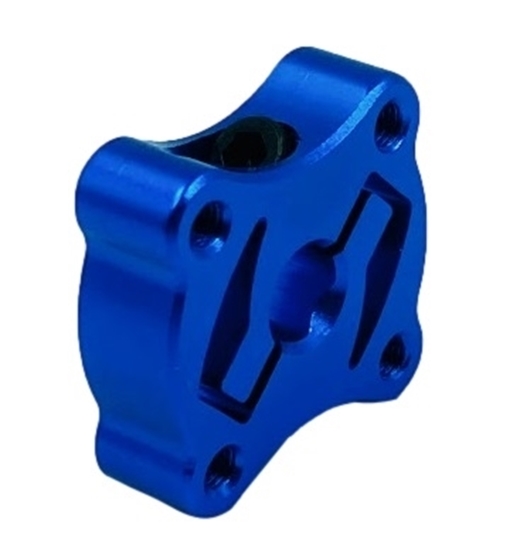

6mm D-Shaft Low Profile Clamping Hub

Made of aluminum, the Studica Clamping Shaft Hub is used with flex and drive wheels

Specifcation:

• Material: 6061-T6 Aluminum
• 6mm ID
• Hole pattern for connecting to structure
• Step File

Used with the Intake Kit to create various intake system with various lengths.

• ID: 6mm
• OD: 10mm
• 1000mm long
• Wall Thickness: 2mm
• Flexible
• Bend Radius: ~30mm
• Silicone
• Durometer: 70A
• Black
• Step File

64 Tooth 5mm Pitch GT2
Belt 9mm wide
Rubber

Black

• 82 Tooth 5mm Pitch GT2
• Belt 9mm wide
• Rubber
• Black

• GT2 Pulley
• Φ41.2mm*13.0mm thick
• M3 pass through holes SHCS should
• sit flush
• Bearing hole, the bearing should
• AL6061-T6

The Intake Kit can be used to create intake systems and is ideal for the FIRST Technical Challenge (FTC) and World Robotics Olympiad (WRO). Used with the Silicone Rubber Tubing #76410

Specifications:

• Main piece
  • hex width: 20.78mm*10.0mm thick
  • 6*M6 tapped holes
  • 1*M4 tappped hole for M4 set screw
  • 6.0mm Diameter D Hole
  • Material AL6061-T6
  • Φ7.5mm*14.0mm
• Pins
  • 6PCS in a pack
  • M6*4.0mm thread
  • Material SS303
• Step file

GT2 Pulley
Φ22.0mm*13.0mm thick
2*M4 thread for M4 set screws
Φ6.0mm D hole

AL6061-T6
