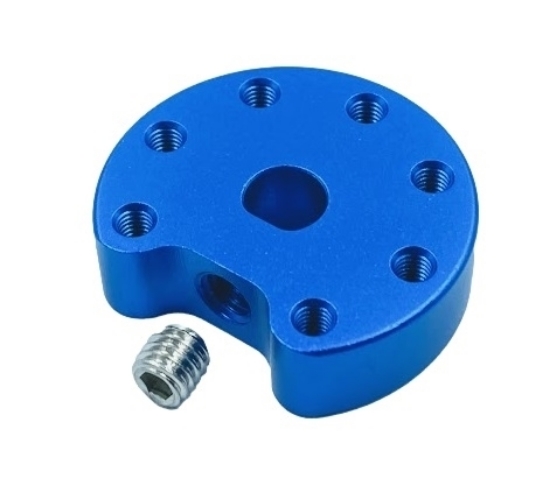

The Studica Light Weight 6mm D-Shaft Hub is used with the 6mm D shafts. It has a 5mm set screw for tight clamping and seven M3 tapped mounting holes.
Specifcation:
May be used with 6mm D-Shape Shaft to secure wheels in their position.
Specifications:
Made of aluminum, the Studica Clamping 6mm D-Shaft Hub is used with flex and drive wheels
The Studica Servo Hub Pro can be used with the Multi Mode Servo, Multi Mode Servo 200, or most servos with a 25 Tooth gear.
Specifcations:
Made from delrin in blue, this M3 Screw Spacer has a 3.2mm ID x 5.5mm OD x 1mm thick. Use it for any M3 screw.
Made from delrin in blue, this M3 Screw Spacer has a 3.2mm ID x 5.5mm OD x 2mm thick. Use it for any M3 screw.
Made from delrin in blue, this M3 Screw Spacer has a 3.2mm ID x 5.5mm OD x 5mm thick. Use it for any M3 screw.
The 30 Tooth GT2-6mm Timing Belt Pulley can be used with any of the GT2 belts.
This Hub allows user that have existing Studica OMNI wheels (Part# 76260) or Mecanum Wheels (Part# 76243) to use REV Robotics 5mm Hex shafts and Hex Motors.
The 6mm D-Shaft Servo Hub 25T is made of anodized 6061-T6 Aluminum and is used to connect a servo motor to a D-Shaft axel.
The 6mm D-Shaft Hub is used to connect any Studica wheel and the Studica motor or any motor with a 6mm shaft.
Used with Studica Omni and Mecanum wheels for a strong axel hold.
The 6mm diameter D -Shaft is made of stainless steel and is used throughout our building system as drive components. The D-Shaft profile is used with pulleys, gears and hubs when tightening the set screws and creating a non-slip connection.
