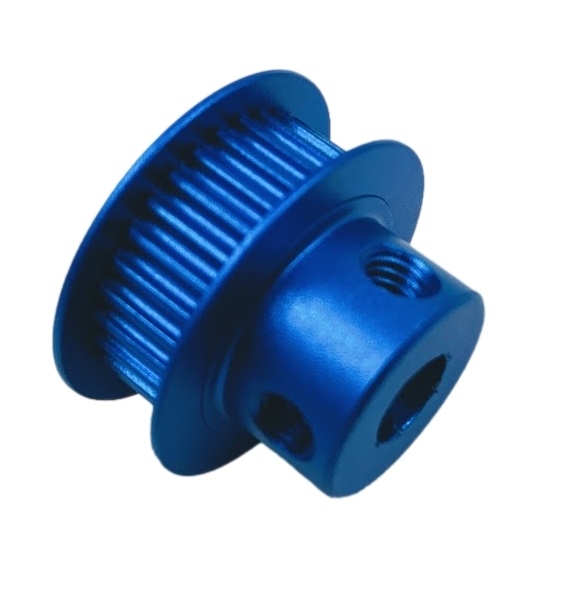

    30 Tooth GT2-6mm Timing Belt D-Shaft Pulley

    The 30 Tooth GT2-6mm Timing Belt Pulley can be used with any of the GT2 belts.

    Specifications:

    • 30 Tooth Timing Pulley
    • 6mm Bore
    • Material: 6061 T6 Aluminum

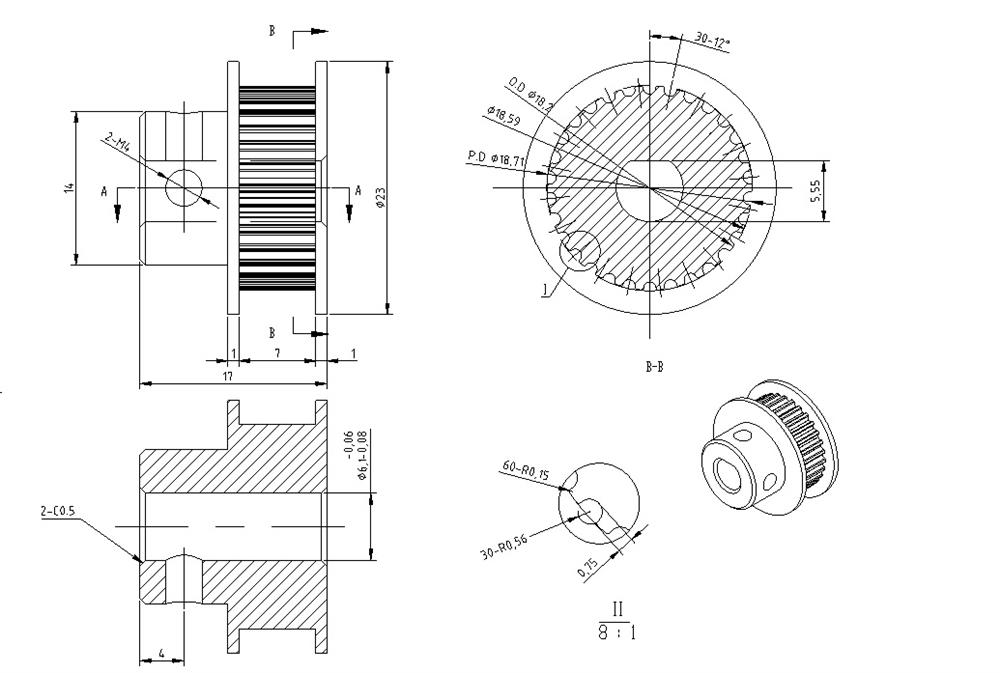

    • Step File
    MFR Part #: 76451
    $8.99
    Availability: 2383 in stock

    Write your own review
    • Product can be reviewed only after purchase
    • Only registered users can write reviews
    *
    *
    • Bad
    • Excellent

    Customers who bought this item also bought

    192mm x 96mm Flat Bracket (2 pack)

    #76066-2
    $15.99
    ( 1799 In stock)

    The Studica 192mm x 96mm Flat Bracket is a very strong  3mm. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.

    Specifications:

    • Material - Anodized 6061-T6 Aluminum
    • Thickness - 3mm
    • Width - 96mm
    • Length - 192mm
    • Step File



    Light Weight 6mm D-Shaft Hub (2 Pack)

    #76282-2
    $7.99
    ( 3035 In stock)

    The Studica Light Weight 6mm D-Shaft Hub is used with the 6mm D shafts. It has a 5mm set screw for tight clamping and seven M3 tapped mounting holes.

    Specifcation:

    • Material: 6061-T6 Aluminum
    • 6mm D Shaft ID
    • M3 tapped hole pattern for connecting to structure
    • Step File

    Servo Hub Pro

    #76152
    $5.49
    (In stock)

    The Studica Servo Hub Pro can be used with the Multi Mode Servo, Multi Mode Servo 200, or most servos with a 25 Tooth gear.



    Specifcations:

    • Spline: 25 Tooth, 3.8mm deep
    • Height: 9mm
    • OD: 30mm
    • Material: 6061-T6 Aluminum
    • Step File

    336mm Low Profile U-Channel

    #76027
    $10.29
    ( 854 In stock)

    The Studica Low Profile U Channel is 3mm thick and has a 48mm x 14mm profile. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.

    Specifications:

    • Material: 6061-T6 Aluminum
    • Thickness - 3mm
    • Height - 14mm
    • Width - 48mm
    • Length - 336mm
    • Hole pattern - 7
    • Step File



    6mm D-Shape Collar Clamp

    #76320
    $4.99
    ( 972 In stock)

    May be used with 6mm D-Shape Shaft to secure wheels in their position.

    Specifications:

    • Φ20.0mm*8.0mm thick
    • 1*M3 thread for M3 SHCS on the clamp side
    • Φ6.0mm D hole
    • AL6061-T6
    • Step File

    20 Tooth GT2-6mm Timing Belt D-Shaft Pulley

    #76450
    $7.99
    ( 1588 In stock)

    The 20 Tooth GT2-6mm Timing Belt Pulley can be used with any of the GT2 belts.

    Specifications:

    • 20 Tooth Timing Pulley
    • 6mm Bore
    • Material: 6061 T6 Aluminum
    • Step File

    432mm U-Channel

    #76010
    $15.99
    ( 116 In stock)

    The Studica U Channel is 3mm thick and has a 48mm x 48mm profile. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.

    Specifications:

    • Material: 6061-T6 Aluminum
    • Thickness - 3mm
    • Height - 48mm
    • Width - 48mm
    • Length - 336mm
    • Weight -372gm
    • Hole pattern - 9
    • Step File
