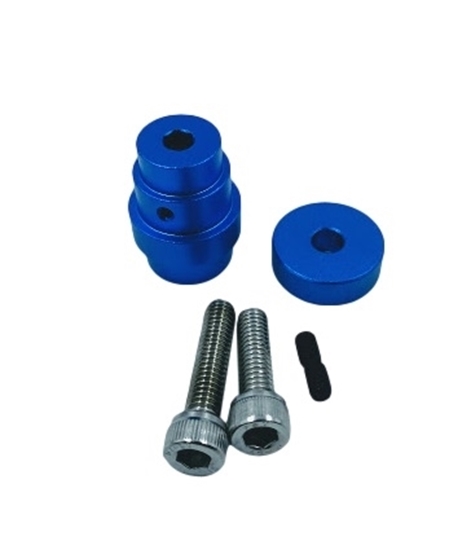

This Hub allows user that have existing Studica OMNI wheels (Part# 76260) or Mecanum Wheels (Part# 76243) to use REV Robotics 5mm Hex shafts and Hex Motors.
The Studica Low Profile U Channel is 3mm thick and has a 48mm x 14mm profile. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.
Specifications:
Standoffs can be used to space parallel plates, channel, brackets, etc.
The Motor Mount Plate is used with the Maverick 12V DC Gear Motor (Part# 75001) to attach it inside the anyone of the U Channels 76010 to 76018. This is an example of a chassis with 4 motors mounted inside the U-Channel using a Motor Mounting Plate.
Made from 3mm thick heavy 6061-T6 Aluminum, the L Bracket is 48mm x 48mm and is used outside the U Channel or Low profile channel. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.
The Rack and Pinion D Shaft Set (2 Pack) includes 2 Racks, 2 Pinions, and 4 Glides. The rack hole pattern matches that of the channel, flat beams, square beams and flat brackets so it's easy to mount on the Studica structure. the rack and the glides are made of POM Plastic providing high stiffness, low friction, and excellent dimensional stability. The pinion has a 6mm D shaft hub, 25.52mm addendum circle diameter and is made of 6061-T6 Aluminum.
Made of aluminum, the Studica Clamping 6mm D Shaft Hub - v2 is used with flex and drive wheels
Specifcation:
