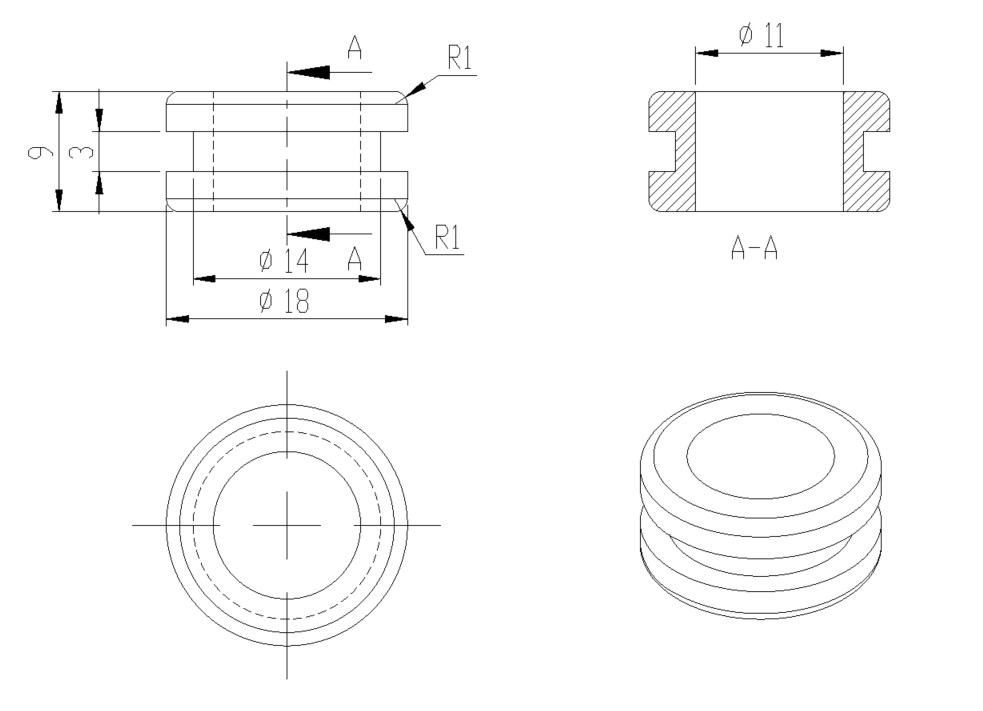

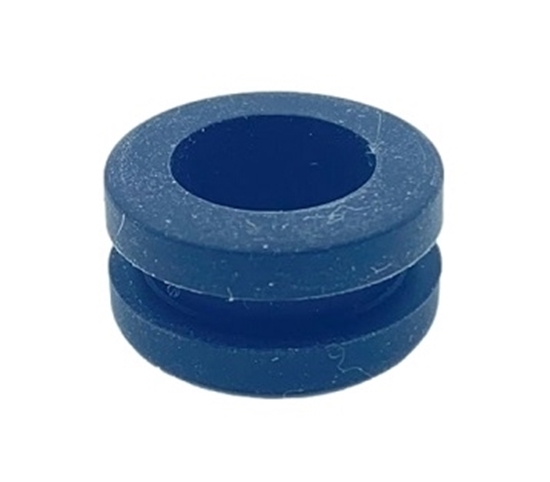

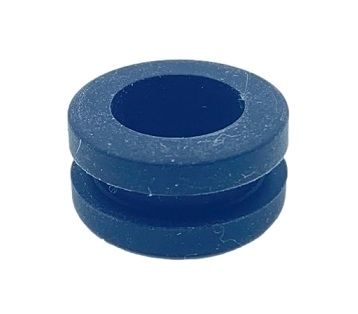

Rubber Grommet (10 pack)

The Studica U-Channel Bumper is connected to the end of the Studica 48mm U-Channel and helps remove sharp corners that can cause damage when the robot is bumping into other objects. It also creates an ecstatically clean finish to your robot.

Specifications:

• Material: Silicomn/Rubber
• Hardness: 50-60 Shore A
• Length: 48mm
• Width: 48mm
• Thickness: 10.75mm
• Color: Black
• Step File

Made of Nylon, the Studica Rubber Foot is used with the Studica Robotics building structure and for many other uses.

Specifications:

• Material: Nylon
• Outside OD: 24mm
• Inner OD: 21mm
• Height: 24mm
• Step File

The Studica Servo Arm Extended can be used with the Multi Mode Servo, Multi Mode Servo 200, or most servos with a 25 Tooth gear.

Specifcations:

• Spline: 25 Tooth, 3.8mm deep
• Length: 56mm
• Width: 14mm
• Height: 7.8mm
• Material: 6061-T6 Aluminum
• Step File

Used with Studica 100mm Omni wheel for a strong axel hold.

Specifications:

• Material: 6061-T6 Aluminum
• Color: Blue
• Includes clamp screws and screws and nuts for clamping to omni.
• Step File

Note: This product is end of life as we are moving completly to Hex-Shaft.

The Intake Kit can be used to create intake systems and is ideal for the FIRST Technical Challenge (FTC) and World Robotics Olympiad (WRO). Used with the Silicone Rubber Tubing #76410

Specifications:

• Main piece
  • hex width: 20.78mm*10.0mm thick
  • 6*M6 tapped holes
  • 1*M4 tappped hole for M4 set screw
  • 6.0mm Diameter D Hole
  • Material AL6061-T6
  • Φ7.5mm*14.0mm
• Pins
  • 6PCS in a pack
  • M6*4.0mm thread
  • Material SS303
• Step file

• Φ29.0mm*16.0mm thick
• 6*M3 thread tapping through (including 2*M3 thread for M3 SHCS)
• Φ6.0mm D hole
• AL6061-T6
• Step File

Used with the Intake Kit to create various intake system with various lengths.

• ID: 6mm
• OD: 10mm
• 1000mm long
• Wall Thickness: 2mm
• Flexible
• Bend Radius: ~30mm
• Silicone
• Durometer: 70A
• Black
• Step File
