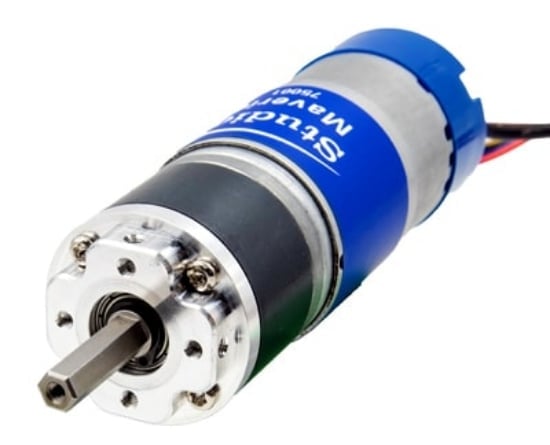

    Maverick Hex Planetary Gearbox Motor w/Encoder (3.7:1 Ratio gearbox)

    The Maverick Motor with 3.71 planetary gearbox features a high‑torque reduction system engineered for demanding robotic and automation applications. Its 6mm hex output shaft ensures secure coupling with Studica‑compatible components and other hex‑based mechanical systems. Built on Studica’s industrial‑grade motor platform, this unit provides reliable, consistent performance suited for precision‑controlled, heavy‑load mechanisms.

    - For clamping use the 76141 Motor Mount Clamp Kit or the 76137 Clover Motor Mount

    MFR Part #: 75001-37
    $49.99
    In stock
    • Voltage:                      12V DC
    • Amperage                   11A(full stall)
    • Gear Ratios:                 3.7:1
    • Shaft Diameter:            6mm Hex-Shaft
    • Body Diameter:            37mm
    • Power cable:                 PP45, 45cm, 14AWG
    • Encoder Cable:             45cm, 22AWG 4-pin



    STEM BOT Pro Kit - Parts List

    (Download to View STEM BOT Parts List as PDF)

    Note: 3D CAD files for all parts are available at www.studica.com/studica-robotics-resources

    Controllers included in the STEM BOT Pro Kit:

    • VMX Robotics Controller
      • The Studica Robotics VMX Robotics Controller can be used an a Robot Control System or Vision/Motion processor, supporting Java and C++.  The controller integrates the navX-IMU, Gigabit Ethernet, USB3.0 ports and built-in Wifi and Bluetooth.
      • Highly-integrated, inexpensive, WiFi-enabled, multi-core Linux computing platform with lots of USB IO for expansion.
      • 32-bit ARM Microcontroller incorporating sophisticated I/O and digital communications engines
      • Low-cost MEMs Inertial Measurement Units (IMUs)
      • Powerful software providing rich libraries and tools for developing robot control software in C++, Java
      • CAN bus for high-speed, real-time communication between devices
    • Titan Quad Motor Controller
      • The Studica Robotics Titan Quad Motor Controller is a powerful, 4-channel CAN-based motor controller with a built-in fuse-box (for DC motors up to 20A).
    • Voltage:                      12V DC
    • Amperage                   11A(full stall)
    • Gear Ratios:                 3.7:1
    • Shaft Diameter:            6mm Hex-Shaft
    • Body Diameter:            37mm
    • Power cable:                 PP45, 45cm, 14AWG
    • Encoder Cable:             45cm, 22AWG 4-pin
