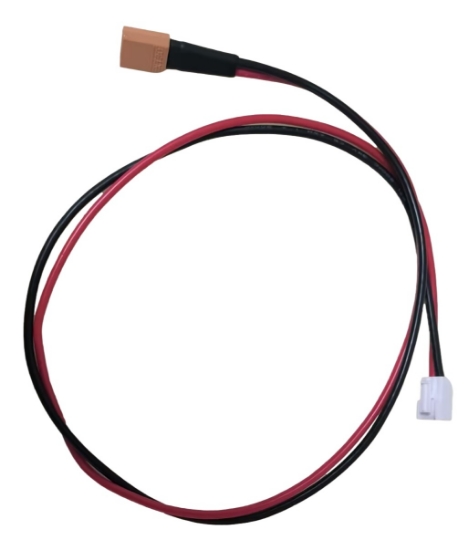

XT30 Male to JST-VH Cable

Unleash the next level of line-following prowess with the Cobra Line Follower V3, the third generation that takes excellence to new heights. Building on the success of its predecessors, the Cobra V3 integrates cutting-edge features to deliver an even more superior performance.

Equipped with an ADC Module, the Cobra V3 seamlessly plugs into any i2c port, providing accurate sensor readings for unparalleled control. For those who prefer raw data, a dedicated output port is now available. Redesigned to meet the escalating demands of robotics enthusiasts, the Cobra V3 boasts an extended sensor range of 0.5mm to 20mm – the Goldilocks zone for precision tracking. Upgrade to the Cobra Line Follower V3 and experience a new era of robotic sensing, where innovation meets reliability for the ultimate in line-following technology.

The Studica NiMH Battery Pack Charger, PP45, is used to recharge the 12V 3,000 mAh NiMH Battery Pack, PP45.

Specifications

• Rating AC Input: 100V to 240V AC, 0.6A RMS, 50/60 Hz
• Rating Output: 7V to 16 VDC
  • 0.9A to 1.8A
• Protection mode: output short circuit protection and output polarity reverse protection.
• Temperature range 0C ~+40C (battery pack)
• Operate Humidity: 5% ~ 90%

LED Indication

Used for WorldSkills, the Studica 12V 3,000mAh NiMH (nickel metal hydride) Battery Pack, PP45 in comes with a w/20 amp fuse. It is a 10-cell, 12-volt rechargeable battery pack.

The Studica NiMH Battery Pack Charger, PP45, is required to charge the battery.

Specifications,

• Dimensions: 5 x 2.1 x 2.1 inches (115 mm x 45 mm x 50 mm)
• Weight: 1.32lbs (579 g)
• 12V, internal 8-9mΩ per cell
• Built-in 20-amp replaceable fuse for safety
• 10-cell pack provides 1,800-mAh capacity
• PP45 connector for easy and safe connection to controller
• Step File

The Servo Power Block is a 6V, 60W power injector that provides proper power for RC Servos. It does not interfere with the signal, it will only replace the power to the servo with 6V.

Features,

• Built in DC-DC converter
• Over-current shutdown
• ESD protection

Specifications,

• Nominal Input Voltage: 12V
• Operational Voltage Range: 6.0V
• Number of Channels: 8
• Max Current for All Channels Combined: 10A
• Total Continuous Power: 60W
• Size: 70mm x 45mm x 16mm
• Step File

This is a twisted pair of 22 AWG (gauge) silicone wire, packaged within a plastic cable sleeve. This cable is designed to be used as a CAN Bus cable.

UL Rated 3135 Silicone-covered copper wire in a flexible sheath.

The Cobra Line Follower Array provides 4 X QRE1113 IR reflectance sensor mounted on a 9mm pitch Each sensor is comprised of two parts - an IR emitting LED and an IR sensitive phototransistor. When you apply power to the VCC and GND pins the IR LED inside the sensor will illuminate.

The Studica Line Sensor Board consists of 4 IR LED/phototransistor pairs, making it a great detector for a line-following robot.  The Line Sensor Board allows the robot to tell objects or surfaces apart based on how dark or light they are. It shines a beam of infrared light out onto the object, and measures how much light is reflected back.

Each sensor provides a separate analog voltage output. The sensor board is an infrared emitter/receiver that is able to differentiate between a dark surface (with low IR reflectivity – 3.3V to 5V) and a light surface (with high IR reflectivity – 0V to 0.5V). However, this range can vary depended on the installed height of the sensor board.

The optimum height distance is 3-5 mm; however, the reflectivity values will change depending on distance. A daylight filter is built into the sensor.

• 5VDC operating voltage (recommended)
• 70mA supply current
• Optimal sensing distance: 0.125" (3mm)
• Step File

This latest version of the VMX is the VMX2, a powerful robot controller,

• Enables Tele-op and autonomous control
• Programmable in Java, C++, Python, LabVIEW, and ROS
• Integrates the navX-IMU, a Linux based controller, Gigabit Ethernet, USB3 ports and built-in Wifi/Bluetooth.
• Can be used in a Robot Control System or Vision/Motion processor
• Supports Open CV, Tensor Flow, SLAM (Simultaneous Localization and Mapping
• Step Files

The VMX2 leverages five advanced key technology developments,

• Highly-integrated, inexpensive, WiFi-enabled, multi-core Linux computing platform with lots of USB IO for expansion
• 32-bit ARM Microcontrollers incorporating sophisticated I/O and digital communications engines
• Low-cost MEMs Inertial Measurement Units (IMUs)
• Powerful software providing rich libraries and tools for developing robot software in C++, Java
• CAN bus for high-speed, real-time communication between devices

The Studica VMX2 Technology Enables,

• Far richer development environments and tools
  • Because VMX2 is much more than a robot controller – it is a powerful, Linux-based desktop computing platform with network/monitor/keyboard/mouse support.
• Very powerful software features
  • State-of-the-art software development GUIs (e.g., VS Code) libraries and tools (drive-  train kinematics, path-planning, vision processing, autonomous navigation,   performance data acquisition/playback)
• Access to cutting-edge sensors (for use outside the competition)
  • VMX’s multitude of modern digital communications interfaces and Linux-based   operating system allow users to directly access most modern devices (e.g., Intel   RealSense tracking and depth cameras and LIDAR
