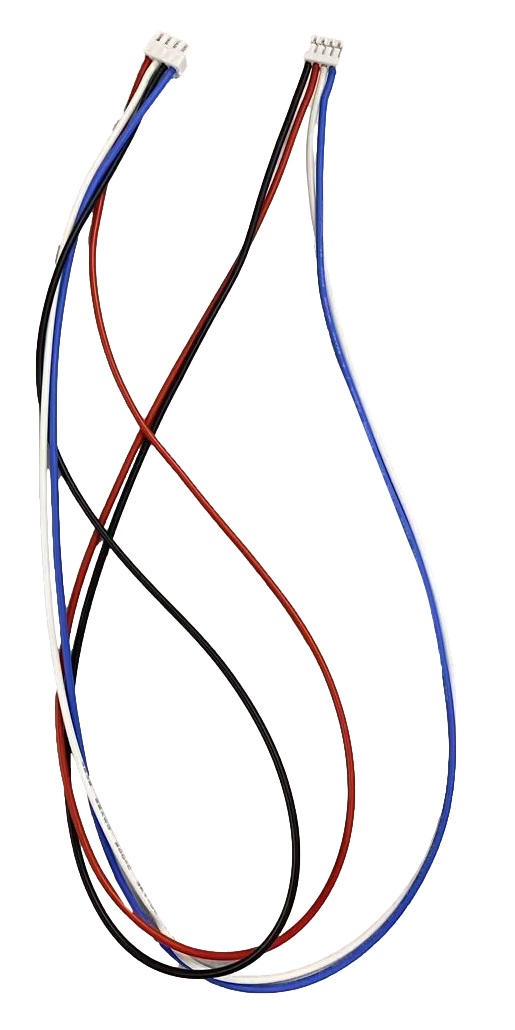

Maverick Encoder Cable for FTC

The Maverick 12V DC Gear Motor 61:1 w/Encoder was designed for strength and endurance.


Specifications:

• Voltage:                      12V DC
• Amperage                   11A(full stall). Nominal operating current is 2.2A, at 12V it's 26.4W
• Wattage                      132W
• Length:                        134mm
• Gear Ratios:                 61:1
• Shaft Diameter:            6mm D-Shaft
• Diameter:                     37mm
• Stall Torque:                 50.5 kg-cm (702 oz-in)
• RPM:                             100
• Encoder:                       Hall effect/Quadrature, 6CPR, 1,464 pulse per revolution
• Weight:                          326 grams
• Power cable:                 PP45, 45cm, 14AWG
• Encoder Cable:             45cm, 22AWG 4-pin
• Step File

nominal so operating current is 2.2A so at 12V this would 26.4W

This is a snap-action micro switch with hinged roller lever and terminals for easy wire connection.

Features:

• High precision of action seat
• High shock resistance
• Shock resistance Max.l000/s2
• Max temperature: T105.C
• Catheter design for easy wiring
• 3 Pin
• Max. Current: 16A
• Max. Voltage: 250V
• OP:14.3~15.1mm
• Protection Level: IP40
• Switch Function: ON - (OFF), OFF - (ON)
• Contact form: SPDT
• High impact resisstance
• Max Ambient temperature:105centigrade
• Mechanical life:10,000,000 on -off
• Electrical life: over 100,000 on-off
• Contact material: AgNi ,AgCdO
• Certificate: CCC,CE,UL,ROHS

• Stable, accurate distance measurement
• High precision, blind spots (3cm) super close
• A full set of ranging process
• Step File

Specifications,

• 16AWG Parallel cable, silicone insulation
• 45A Anderson type single pole connector,Red & Black
• JST VH terminal, VH3.96mm Type
• 10cm length
• RoHS Compliant

Used for WorldSkills, the Studica 12V 3,000mAh NiMH (nickel metal hydride) Battery Pack, PP45 in comes with a w/20 amp fuse. It is a 10-cell, 12-volt rechargeable battery pack.

The Studica NiMH Battery Pack Charger, PP45, is required to charge the battery.

Specifications,

• Dimensions: 5 x 2.1 x 2.1 inches (115 mm x 45 mm x 50 mm)
• Weight: 1.32lbs (579 g)
• 12V, internal 8-9mΩ per cell
• Built-in 20-amp replaceable fuse for safety
• 10-cell pack provides 1,800-mAh capacity
• PP45 connector for easy and safe connection to controller
• Step File

The Studica Analog Module with JST-SH to JST-GH Cable. This is used with the Cobra Line Follower Sensor to make it easier to connect

• Includes JST-SH to JST-GH Cable
• Operating Voltage (VDD): 2.0V-5.5V
• Operating Temperature: -40°C to 125°C
• Operation Modes: Single-Shot, Continuous-Conversion (Default), and Duty Cycling
• Analog Inputs:
  • Measurement Type: Single-Ended (Default)
  • Input Voltage Range: GND to VDD
  • Full Scale Range (FSR): ±.256V to ±6.114V (Default: 2.048V)
• Resolution:
  • 12-bit (Differential) or 11-bit (Single-Ended)
  • LSB size: 0.125mV - 3mV (Default: 1 mV)
• Sample Rate: 128 Hz to 3.3 kHz (Default: 1600SPS)
• Current Consumption (Typical): 150μA-200μA
• I2C Address: 0x48 (Default), 0x49, 0x4A, or 0x4B
• Four unique I2C addresses:
  • 0x48
  • 0x49
  • 0x4A
  • 0x4B
• Step File

The Studica End Piece Plate is commonly fastened to the inside end of the U Channel. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.

Specifications:

Material: 6061-T6 Aluminum

• Step File
