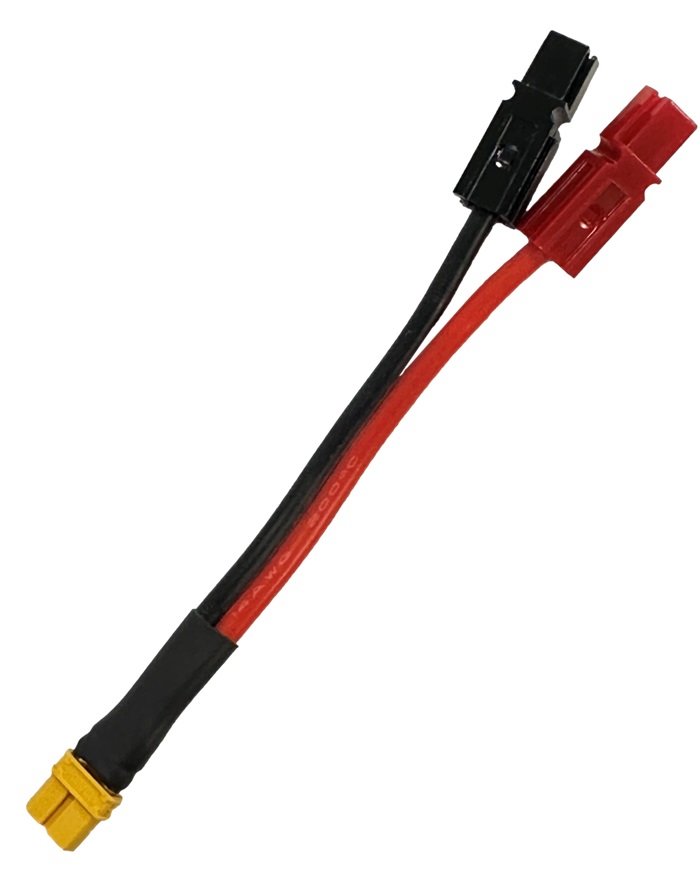

XT30 Female to PP45 Cable

Specifications,

• 14AWG Parallel cable, silicone insulation
• XT30 Male type connector,Brass gold plated,PA
• XT30 Female type connector,Brass gold plated,PA
• 50cm length
• RoHS Compliant

The Powerpole Extension Cable is 50cm long and 14AWG wire gauge to handle heavier loads.

Specifications,

• 16AWG Parallel cable, silicone insulation
• 45A Anderson type single pole connector,Red & Black
• JST VH terminal, VH3.96mm Type
• 10cm length
• RoHS Compliant

The 6mm Hex-Shaft Flanged Bearing fits any of the channel and flat brackets with the common hole pattern having a center hole of 14mm. The inside diameter will fit any of the 6mm Hex-Shaft axel.

• Quantity: 12
• Material: AISI440C stainless steel
• Sealed Type: ZZ metal shields
• Precision: ABEC-3
• Clearance: C0
• Lubrication:Kyodo SRL Grease
• ID (inner diameter)/Bore:6 mm Hex
• OD (outer diameter): 14 mm
• OD of Flanged Size: 15 mm
• Width: 5 mm
• Thickness of Flange: 1 mm

The Motor Mount Plate is used with the Maverick 12V DC Gear Motor  (Part# 75001) to attach it inside the anyone of the U Channels 76010 to 76018. This is an example of a chassis with 4 motors mounted inside the U-Channel using a Motor Mounting Plate.

• Step File

This is the cable designed for the encoder that is pre-attached to the NeveRest Series of motors and gearmotors. It has a connector on the opposite end to directly interface with the REV Expansion Hub or the REV Control Hub.

2019 Update:

The 'a' version of this cable as the encoder channels swapped so that the encoder counts in the same direction as the output shaft spins. This simplifies the usage of the encoder with the various programming languages for FTC!

Specifications

• Length: 20 in.

Precision Hub for Hex-Shaft Couplings

The Studica Robotics 6 mm Low Profile Hex-Shaft Clamping Hub V2 is engineered to deliver a secure and compact coupling between your motor or drive shaft and wheels, sprockets, or other mechanical components. With its 6 mm hex-shaft ID and low profile form, it's ideal for tight-space and high-precision builds.  Made of aluminum, the Studica Robotics Clamping 6mm Hex-Shaft Hub-V2 is used with our wheels.

Step File
