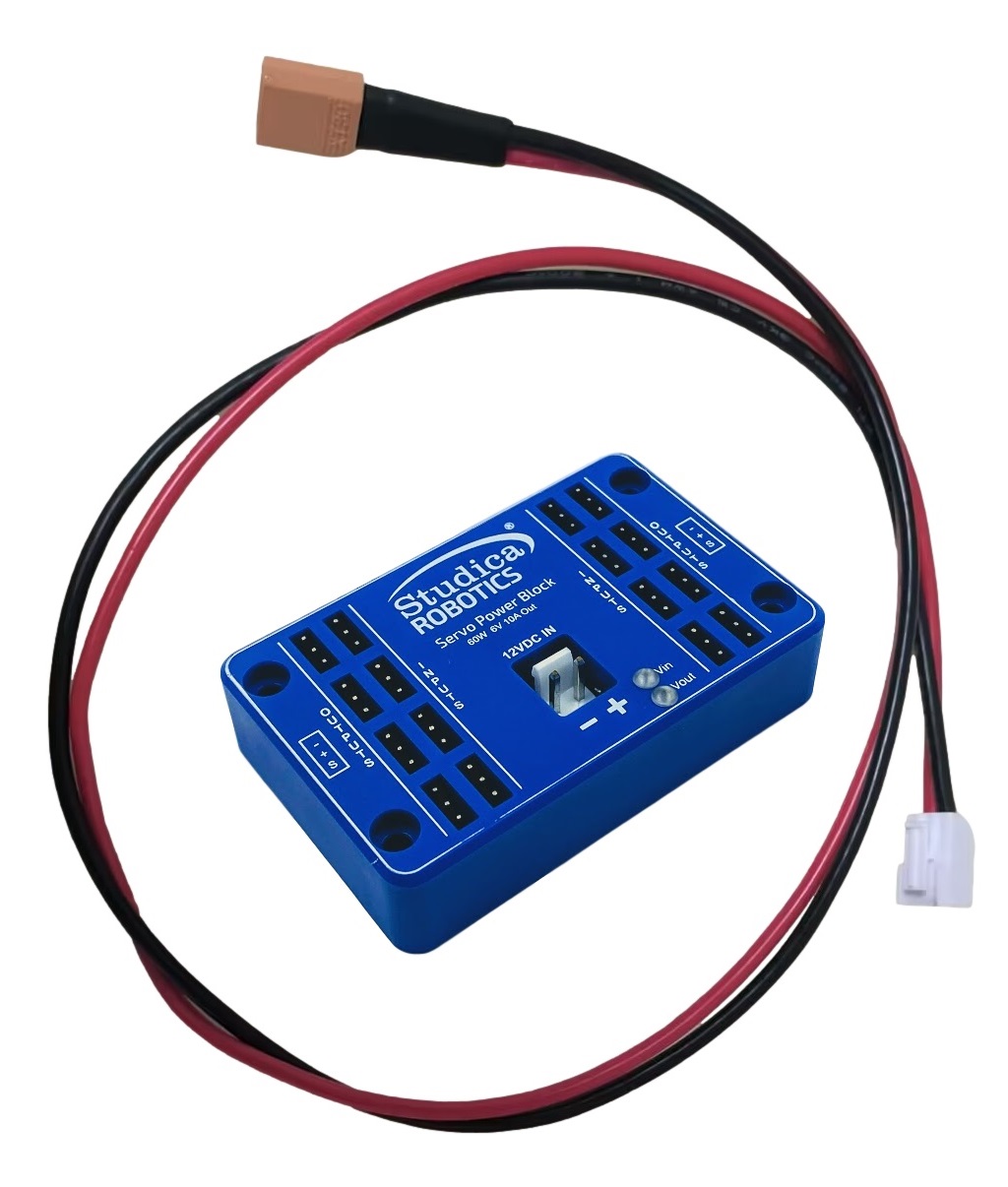

Servo Power Block with XT30 Male to JST-VH Cable Bundle

The Studica Robotics Servo Power Block (75006) with the XT30 Male to JST-VH Cable (70180) Bundle is made for FIRST FTC Teams. The Servo Power Block is a 6V, 60W power injector that provides proper power for RC Servos. It does not interfere with the signal, it will only replace the power to the servo with 6V. The XT30 Male to JST-VH Cable allows you to plug directly into the REV Control Hub.

MFR Part #: 75005

$39.99

Qty:

Specifications
Parts List

Features:

Built in DC-DC converter
Over-current shutdown
ESD protection

Specifications:

Nominal Input Voltage: 12V
Operational Voltage Range: 6.0V
Number of Channels: 8
Max Current for All Channels Combined: 10A
Total Continuous Power: 60W
Size: 70mm x 45mm x 16mm
XT30 Male to JST-VH Cable: 14 Guage, 50cm long
Step File

STEM BOT Pro Kit - Parts List

(Download to View STEM BOT Parts List as PDF)

Note: 3D CAD files for all parts are available at www.studica.com/studica-robotics-resources

Controllers included in the STEM BOT Pro Kit:

VMX Robotics Controller
- The Studica Robotics VMX Robotics Controller can be used an a Robot Control System or Vision/Motion processor, supporting Java and C++. The controller integrates the navX-IMU, Gigabit Ethernet, USB3.0 ports and built-in Wifi and Bluetooth.
- Highly-integrated, inexpensive, WiFi-enabled, multi-core Linux computing platform with lots of USB IO for expansion.
- 32-bit ARM Microcontroller incorporating sophisticated I/O and digital communications engines
- Low-cost MEMs Inertial Measurement Units (IMUs)
- Powerful software providing rich libraries and tools for developing robot control software in C++, Java
- CAN bus for high-speed, real-time communication between devices
Titan Quad Motor Controller
- The Studica Robotics Titan Quad Motor Controller is a powerful, 4-channel CAN-based motor controller with a built-in fuse-box (for DC motors up to 20A).

Features:

Built in DC-DC converter
Over-current shutdown
ESD protection

Specifications:

Nominal Input Voltage: 12V
Operational Voltage Range: 6.0V
Number of Channels: 8
Max Current for All Channels Combined: 10A
Total Continuous Power: 60W
Size: 70mm x 45mm x 16mm
XT30 Male to JST-VH Cable: 14 Guage, 50cm long
Step File
