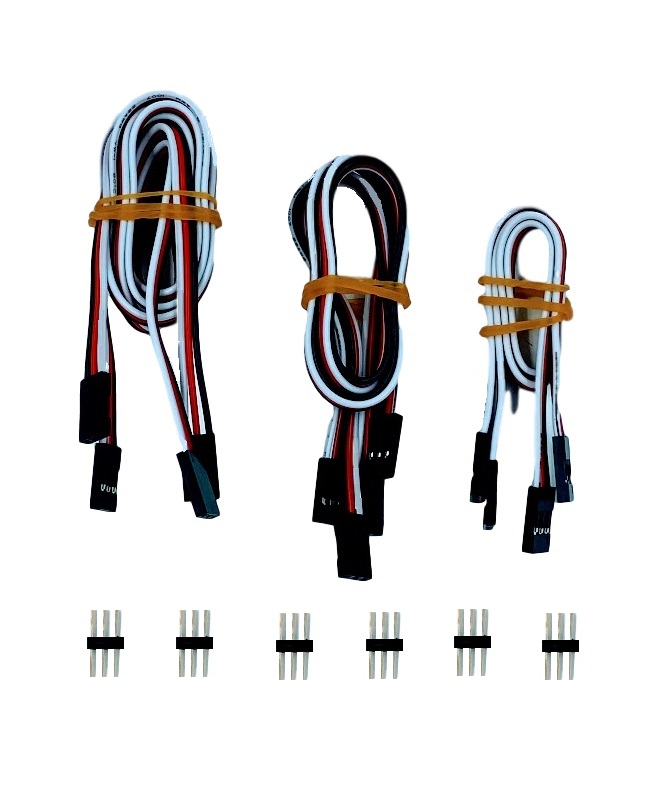

    PWM cable Set - TJC8 3 pin - 22AWG - F-F - 12 pcs

    $15.99

    This set of 12 pieces includes,

    • 2 x 20cm 22AWG Cables with Dupont TJC8 2.54mm 3 pin, female to female connectors
    • 2 x 40cm 22AWG Cables with Dupont TJC8 2.54mm 3 pin, female to female connectors
    • 2 x 60cm 22AWG Cables with Dupont TJC8 2.54mm 3 pin, female to female connectors
    • 6 x 3pin Dupont male to male connectors
    MFR Part #: 71011
    Availability: In stock
    Write your own review
    • Product can be reviewed only after purchasing it
    • Only registered users can write reviews
    • Bad
    • Excellent
