    Linear Servo RC Actuator 140S-190N

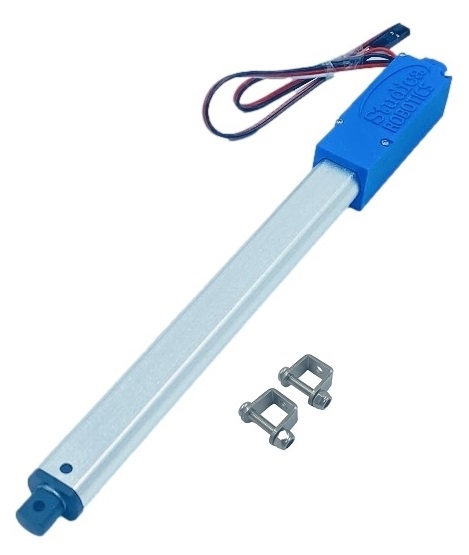

    The Studica Linear Servo RC Actuator 140S-190N is a new Servo motor which has a stroke of 140mm and a max force of 190N. It works the same way as the any standard rotary servo but in a linear movement. It uses the same 2.54mm Dupont 3-Pin Female wire connector and can be controlled with an RC receiver or any device that controls a servo. Includes mounting brackets.

    MFR Part #: 75014
    $59.99
    In stock

    Specifications:

    • Stroke: 140mm

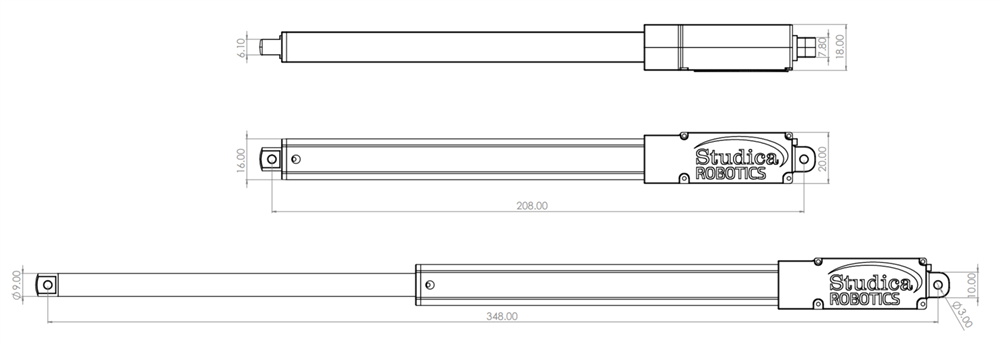

    • Length: 208mm
    • Weight: 96g
    • Extended length: 348mm
    • Gear Ratio: 150:1
    • Speed (no load): 6mm/s
    • Max Force: 190N
    • Stall Torque: 325N
    • Wire length: 340mm
    • Connector: 2.54mm Dupont 3-Pin Female
    • Control Signal: PWM
    • Frequency: 50 HZ
    • Voltage: 6V
    • Data Sheet
    • Step files

    Write your own review
    • Product can be reviewed only after purchase
    • Only registered users can write reviews
    *
    *
    • Bad
    • Excellent

    Specifications:

    • Stroke: 140mm
    • Length: 208mm
    • Weight: 96g
    • Extended length: 348mm
    • Gear Ratio: 150:1
    • Speed (no load): 6mm/s
    • Max Force: 190N
    • Stall Torque: 325N
    • Wire length: 340mm
    • Connector: 2.54mm Dupont 3-Pin Female
    • Control Signal: PWM
    • Frequency: 50 HZ
    • Voltage: 6V
    • Data Sheet
    • Step files
