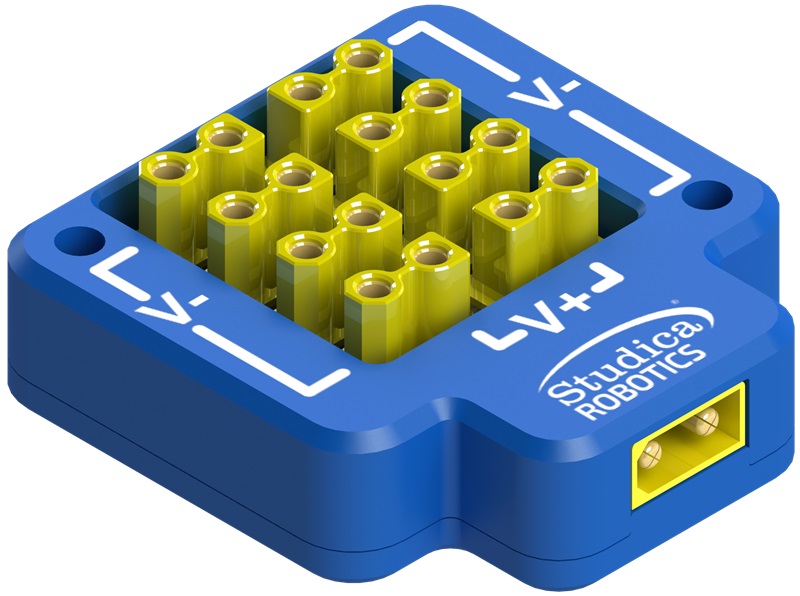

FTC Power Block

Rev up your robot's performance with the FTC Power Block, a game-changer in facilitating seamless power connections for various devices throughout your FTC robot. This powerhouse accessory ensures that your robot operates at its full potential, delivering unmatched reliability and efficiency. Say goodbye to power-related hiccups and hello to a smoother, more robust robot performance with the FTC Power Block.

Specifications:

Input: XT30 Male
Output: XT30 Female
Total Connections: 9
Max Current: 20A Shared

Step File

MFR Part #: 70407

$10.89

Qty:

Parts List

STEM BOT Pro Kit - Parts List

(Download to View STEM BOT Parts List as PDF)

Note: 3D CAD files for all parts are available at www.studica.com/studica-robotics-resources

Controllers included in the STEM BOT Pro Kit:

VMX Robotics Controller
- The Studica Robotics VMX Robotics Controller can be used an a Robot Control System or Vision/Motion processor, supporting Java and C++. The controller integrates the navX-IMU, Gigabit Ethernet, USB3.0 ports and built-in Wifi and Bluetooth.
- Highly-integrated, inexpensive, WiFi-enabled, multi-core Linux computing platform with lots of USB IO for expansion.
- 32-bit ARM Microcontroller incorporating sophisticated I/O and digital communications engines
- Low-cost MEMs Inertial Measurement Units (IMUs)
- Powerful software providing rich libraries and tools for developing robot control software in C++, Java
- CAN bus for high-speed, real-time communication between devices
Titan Quad Motor Controller
- The Studica Robotics Titan Quad Motor Controller is a powerful, 4-channel CAN-based motor controller with a built-in fuse-box (for DC motors up to 20A).

Customers who bought this item also bought

Servo Power Block

#75006

Request a Quote

(In stock)

The Servo Power Block is a 6V, 60W power injector that provides proper power for RC Servos. It does not interfere with the signal, it will only replace the power to the servo with 6V.

Features,

Built in DC-DC converter
Over-current shutdown
ESD protection

Specifications,

Nominal Input Voltage: 12V
Operational Voltage Range: 6.0V
Number of Channels: 8
Max Current for All Channels Combined: 10A
Total Continuous Power: 60W
Size: 70mm x 45mm x 16mm
Step File

Maverick 12V DC Gear Motor w/Encoder

#75001

$28.99

(In stock)

Our improved and stronger 12-volt DC motor with 100 rpm and 708 oz-in. of torque. The motor features a built-in, high-resolution Hall effect encoder for precise motor control and comes with an encoder cable.

A 61:1 gearbox comes standard.

Motor Specs
Function	Min	Nom	Max
Input Voltage	—	12VDC	—
Gear Ratio	—	1:61	—
No Load RPM	88	100	112
No Load Current	—	600mA	—
Rated Speed	68	80	92
Rated Current	—	—	2.2A
Rated Torque	—	139oz-in	—
Stall Current	—	—	11A
Stall Torque	708oz-in	—	—
Direction	—	CW	—
Encoder Voltage	4	—	5
Encoder Current	—	6mA	—
Encoder CPR	—	6	—
