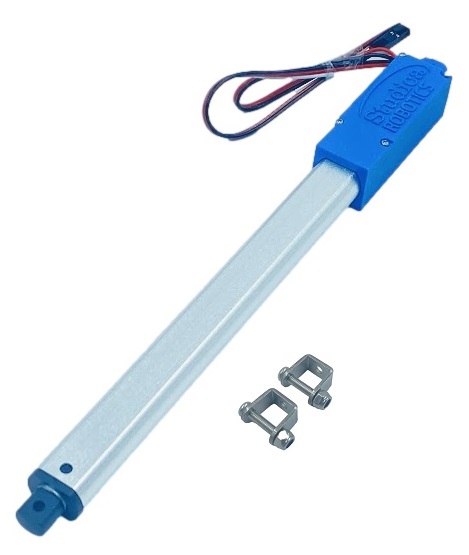

Linear Servo RC Actuator 140S-40N

The Studica Linear Servo RC Actuator 50S-40N is a new Servo motor which has a stroke of 50mm, Max Force load of 50N and stroke spead of 26mm/s. It works the same way as the any standard rotary servo but in a linear movement. It uses the same 2.54mm Dupont 3-Pin Female wire connector and can be controlled with an RC receiver or any device that controls a servo. Includes mounting brackets.

Made of aluminum, the Studica Clamping 6mm D-Shaft Hub - v2 is used with flex and drive wheels

Specifcation:

• Material: 6061-T6 Aluminum
• 6mm ID
• Hole pattern for connecting to structure
• Step File

May be used with 6mm D-Shape Shaft to secure wheels in their position.

Specifications:

• Φ20.0mm*8.0mm thick
• 1*M3 thread for M3 SHCS on the clamp side
• Φ6.0mm D hole
• AL6061-T6
• Step File

This is the cable designed for the encoder that is pre-attached to the NeveRest Series of motors and gearmotors. It has a connector on the opposite end to directly interface with the REV Expansion Hub or the REV Control Hub.

2019 Update:

The 'a' version of this cable as the encoder channels swapped so that the encoder counts in the same direction as the output shaft spins. This simplifies the usage of the encoder with the various programming languages for FTC!

Specifications

• Length: 20 in.

The Studica Linear Servo RC Actuator 50S-190N is a new Servo motor which has a stroke of 50mm and a max force of 190N. It works the same way as the any standard rotary servo but in a linear movement. It uses the same 2.54mm Dupont 3-Pin Female wire connector and can be controlled with an RC receiver or any device that controls a servo. Includes mounting brackets.

The Studica Linear Servo RC Actuator 140S-190N is a new Servo motor which has a stroke of 140mm and a max force of 190N. It works the same way as the any standard rotary servo but in a linear movement. It uses the same 2.54mm Dupont 3-Pin Female wire connector and can be controlled with an RC receiver or any device that controls a servo. Includes mounting brackets.

The 100mm (4") Drive Wheel can be used as a simple wheel providing good traction on carpet and tile flooring. They can also be used for intake systems.

Use with 1/2" hex shaft of use 6mm Shaft Hub to use connect 6mm D-Shaft Axles.

Specifications:

• Diameter:   100mm (4")
• Axial width:  25mm
• Hub:  1/2" Inner Hex
• Inner Material: Molded Plastic in Yellow
• Outer Material: TPU Polyurethane in Blue
• Outer Material Durometer: 50A
• Weight: 0.068kg
• Step File
