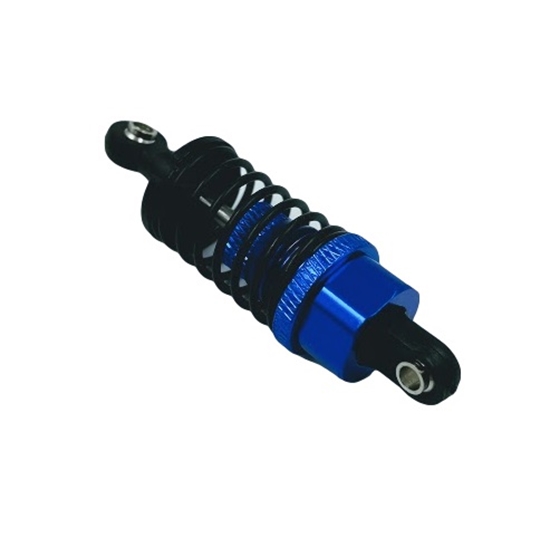

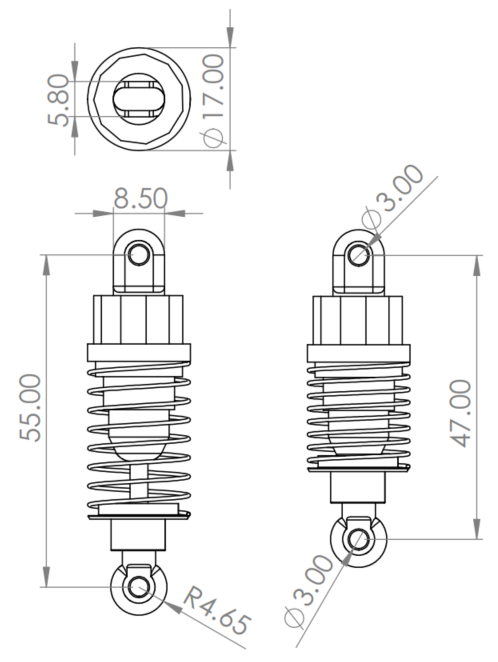

Shock Absorber - 1/10 Aluminum - 55mm (2 pack)

Includes 6 bits,

• Slotted 3.3
• Phillips: OHO
• Hex 1/16inch
• Hex 3/32inch
• Hex 7/64inch

The Studica Flat Bracket is a very strong  3mm x 40mm wide. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.

Specifications:

• Material: 6061-T6 Aluminum
• Thickness - 3mm
• Width - 40mm
• Length - 288mm
• Hole Pattern - 6
• Step File

Specifications:

• Material: 6061-T6 Aluminum
• Use with #25 Chain
• Number of teeth: 24
• Addendum - 52.04mm
• Dedendum - 45.25mm
• Pitch - 48.645
• Width - 2.5mm

The 100mm (4") Flex Wheel can be used for intake systems and conveyors.

Specifications:

• Diameter:   100mm (4")
• Axial width:  25mm
• Hub:  1/2" Inner Hex
• Inner Material: Molded Plastic in Yellow
• Outer Material: TPU Polyurethane in Black
• Outer Material Durometer: 60A
• Weight: 0.038kg
• Step File

The 110mm All-Terrain Wheel w/6mm Adapter has a foam core and therefore does not require air. They grip well on hard smooth surfaces and are perfect for travel on un-even surfaces where you may have mulch, sand, dirt, or gravel. They are designed and manufactured by Studica to work with the Studica Robotics Building platform and will also work with other building sets.

Specifications:

• Diameter: 110mm
• Width: 45mm
• Inner diameter of wheel frame: 75mm
• Hexagon connector: 12mm
• Unit weight: 128g
• 6mm axle adopter

The Studica Low Profile U Channel is 3mm thick and has a 48mm x 14mm profile. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.

Specifications:

• Material: 6061-T6 Aluminum
• Thickness - 3mm
• Height - 14mm
• Width - 48mm
• Length - 240mm
• Hole pattern - 5
• Step File

The Studica Low Profile U Channel is 3mm thick and has a 48mm x 14mm profile. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.

Specifications:

• Material: 6061-T6 Aluminum
• Thickness - 3mm
• Height - 14mm
• Width - 48mm
• Length - 384mm
• Hole pattern - 8
• Step File
