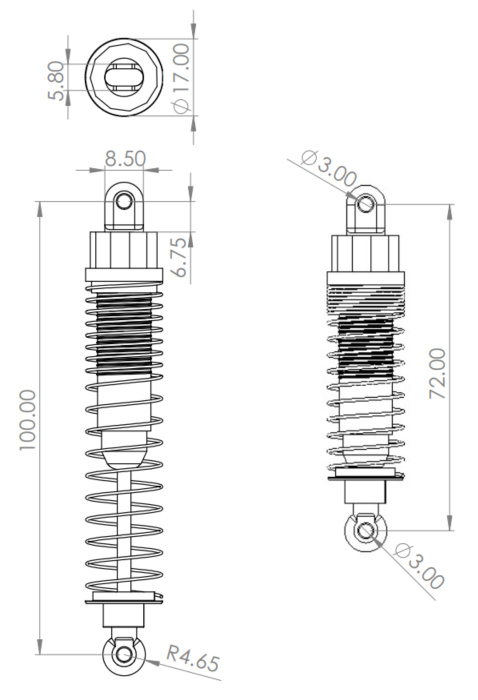

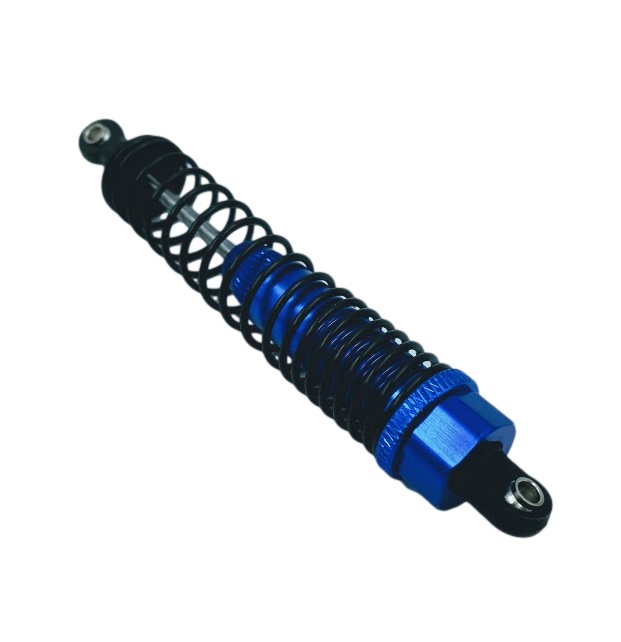

Shock Absorber - 1/10 Aluminum - 100mm (2 pack)

Includes 6 bits,

• Slotted 3.3
• Phillips: OHO
• Hex 1/16inch
• Hex 3/32inch
• Hex 7/64inch

• Diameter: 110mm
• Width: 45mm
• Inner diameter of wheel frame: 75mm
• Hexagon connector: 12mm
• Unit weight: 128g
• 6mm axle adopter

Made from 3mm thick heavy 6061-T6 Aluminum, the L Bracket is 48mm x 48mm and is used outside the U Channel or Low profile channel. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.

Specifications:

• Material - Anodized 6061-T6 Aluminum
• Thickness - 3mm
• Step File

The 6mm Shaft hub is used to connect any Studica wheel and the Studica motor or any motor with a 6mm shaft.

Specifcation:

• Material: 6061-T6 Aluminum
• 6mm ID
• Hole pattern for connecting to structure
• Step File

The 120 Degree Bracket is perfect for connecting two channel pieces at 120 degrees from each other. Each side is 48mm wide to fit perfectly on the channel. Use three brackets with 3 channel pieces to make 3 wheeled robots. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.

Specifications:

• Material - Anodized 6061-T6 Aluminum
• Thickness - 3mm
• Step File

The 6mm diameter D -Shaft is made of stainless steel and is used throughout our building system as drive components. The D-Shaft profile is used with pulleys, gears and hubs when tightening the set screws and creating a non-slip connection.

Specifcation:

• Stainless Steel
• 432mm length
• 6mm OD
• 5.5mm to flat
• Step File

The D-Shaft Collar is 6mm ID and 12mm OD. The inside diameter will fit any of the D-Shaft axels.

Specifcations:

• Material: 6061-T6 Aluminum

• Step File
