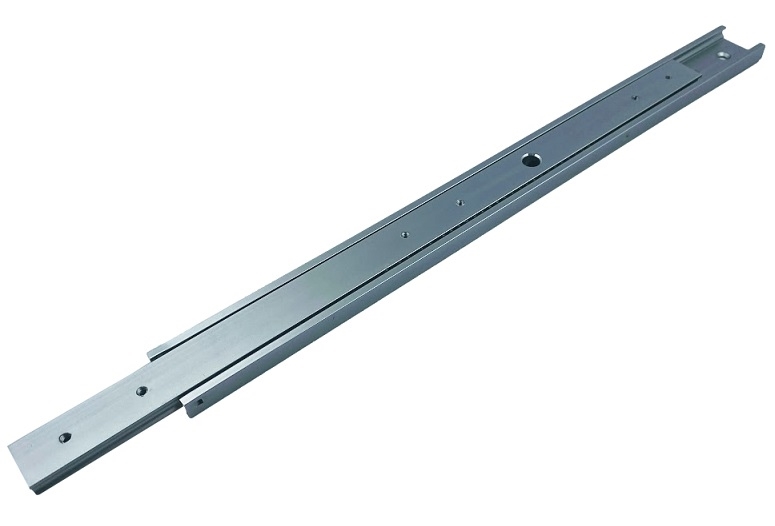

    Slide Rail, 288mm Length, 180mm Stroke

    The Studica Slide Rail is made of light weight aluminum, is 24mm wide, and is perfect for building a multi-stage slide system. Closed length is 288m, with a 180mm stroke, creating a 468mm extended length.

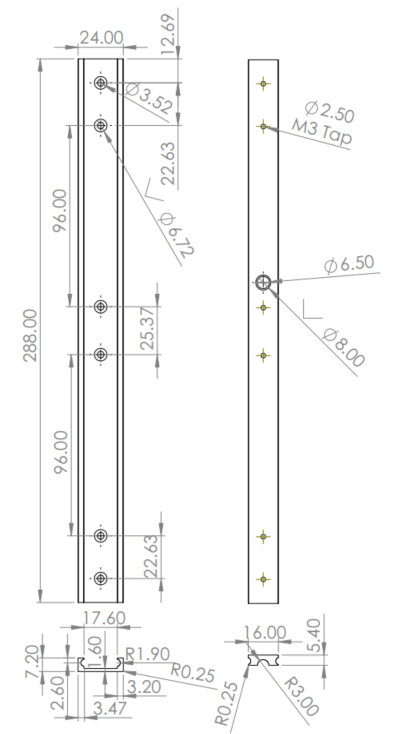

    Specifications:

    • Width: 24mm
    • Height: 7.2mm
    • Length: 288mm
    • Stroke: 180mm
    • Extendended length: 468mm
    • Material: 6061 Aluminum
    • Step files
    MFR Part #: 72066
    $14.99
    Availability: In stock

    Write your own review
    • Product can be reviewed only after purchase
    • Only registered users can write reviews
    *
    *
    • Bad
    • Excellent
