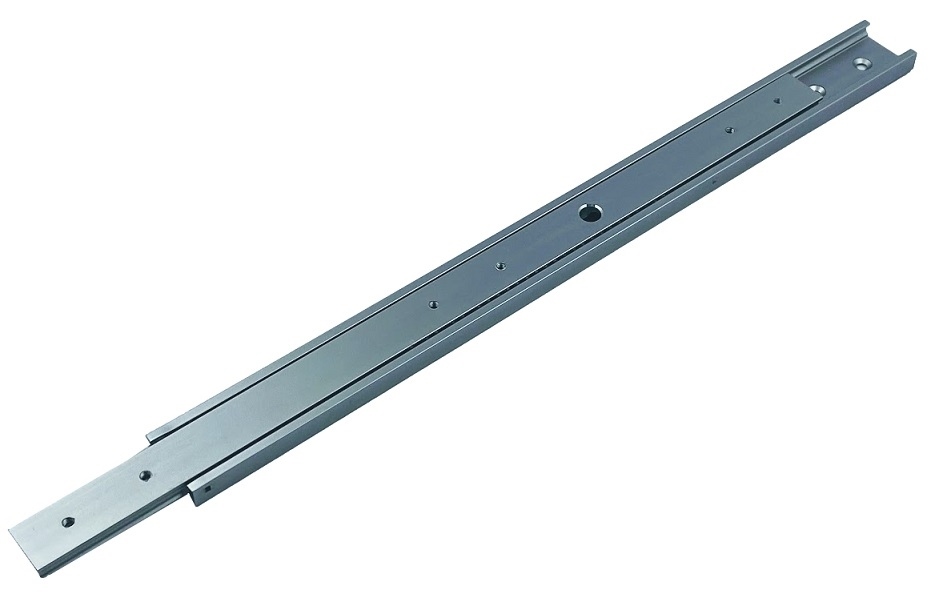

    Slide Rail, 384mm Length, 240mm Stroke

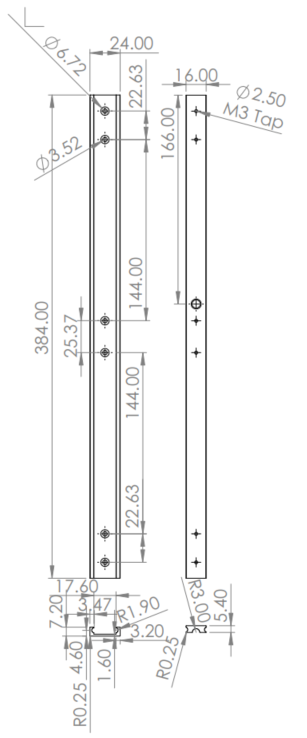

    The Studica Slide Rail is made of light weight aluminum, is 24mm wide, and is perfect for building a multi-stage slide system. Closed length is 384m, with a 240mm stroke, creating a 624mm extended length.

    • Width: 24mm
    • Height: 7.2mm
    • Length: 384mm
    • Stroke: 240mm
    • Extendended length: 624mm
    • Material: 6061 Aluminum
    • Step files
    MFR Part #: 72067
    $17.99
    In stock
