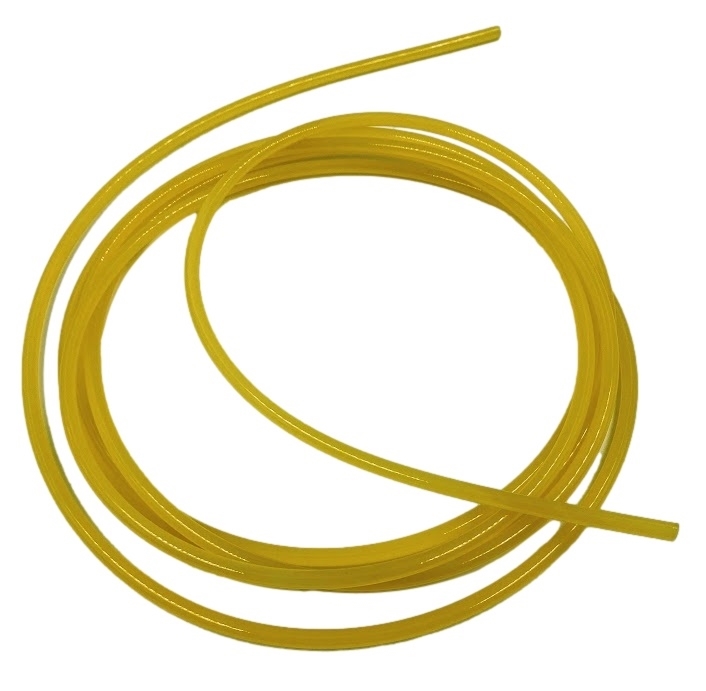

The 5mm Round Groove Belt is 3M long and has a 10% stretch. It is also referred to as a U Groove belt.
The Studica 6mm D Shaft Face Bearing Block can be mounted on any Studica channel and bracket providing which will allow for a 6mm ID through hole for 6mm shafts (axles). It has a permanently installed Standard Sealed Bearing. Has 8 x M3 tapped through holes for easy mounting.
The Motor Mount Plate is used with the Maverick 12V DC Gear Motor (Part# 75001) to attach it inside the anyone of the U Channels 76010 to 76018. This is an example of a chassis with 4 motors mounted inside the U-Channel using a Motor Mounting Plate.
Made of aluminum, the Studica Clamping 6mm D Shaft Hub - v2 is used with flex and drive wheels
Specifcation:
This 1mm Spacer is used to space gears, sprockets, wheels, and other parts along a 6mm D shaft. Mix and match various spacer lengths.
SPECIFICATIONS
The easy way to change the length of your #25 chain. (Chain not included)
- See Instructions for use
The 50mm (2") Drive Wheel can be used as a simple wheel providing good traction on carpet and tile flooring. They can also be used for intake systems.
Use with 1/2" hex shaft of use 6mm Shaft Hub to use connect 6mm D-Shaft Axles.
Specifications:
These round groove pulleys are also referred to as U groove pulleys. They are made of 6061-T6 Aluminum with a D Shaft hole through of 6mm, and 2 set screws for ultimate strength. Use it with the 5mm Round Belt and for gearing up or down combine them with the other round groove pulleys that range from 10mm to 60mm.
