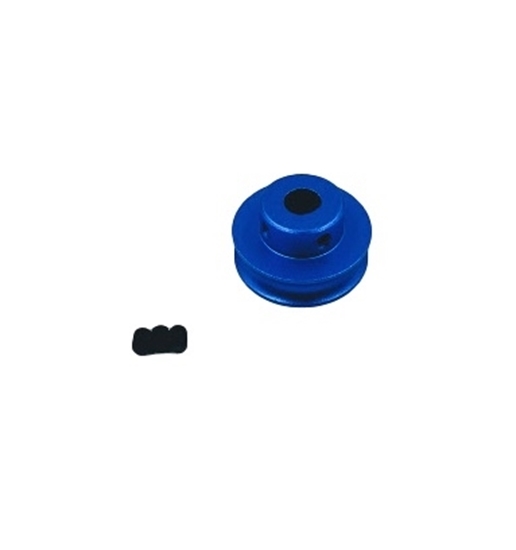

    20mm OD Round Groove Pulley

    These round groove pulleys are also referred to as U groove pulleys. They are made of 6061-T6 Aluminum with a D-Shaft hole through of 6mm, and 2 set screws for ultimate strength. Use it with the 5mm Round Belt and for gearing up or down combine them with the other round groove pulleys that range from 10mm to 60mm.

    Specifications:

    • Material: 6061-T6 Aluminum
    • Bore: 6mm
    • Belt Diameter: 20mm

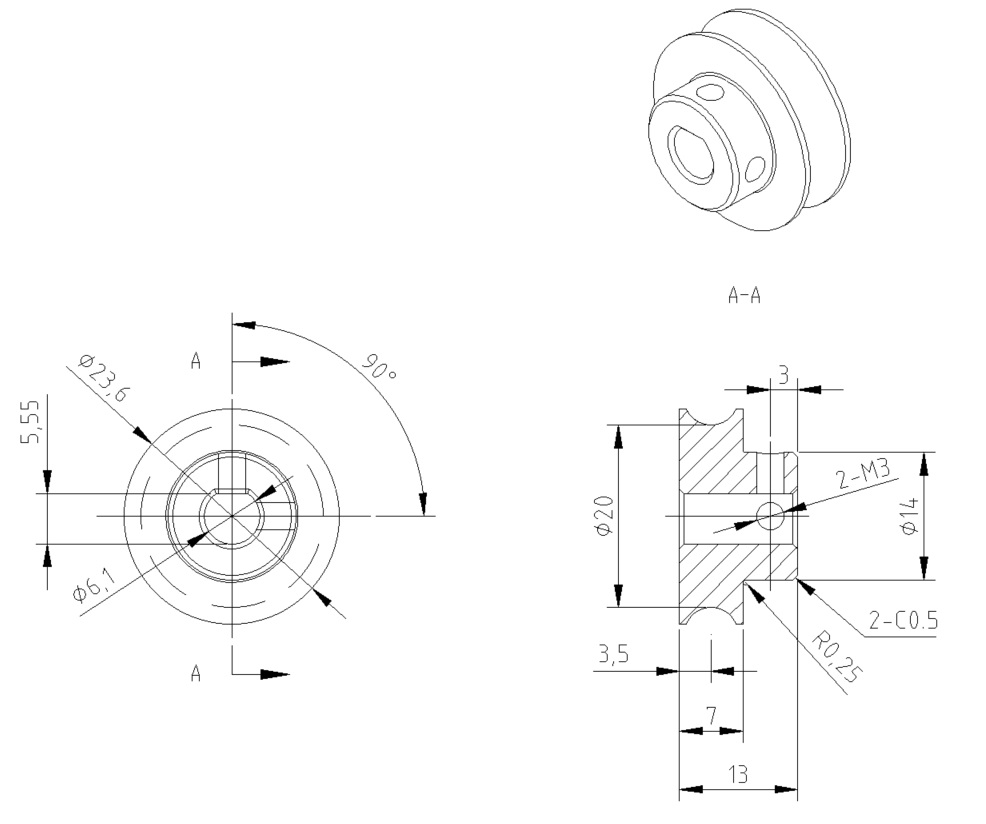

    • Step File
    MFR Part #: 76235
    $4.49
    Availability: 131 in stock

    Write your own review
    • Product can be reviewed only after purchase
    • Only registered users can write reviews
    *
    *
    • Bad
    • Excellent

    Customers who bought this item also bought

    100mm Flex Wheel - 60A - 25mm wide - 1/2" Inner Hex - Black

    #76266
    $7.99
    ( 584 In stock)

    The 100mm (4") Flex Wheel can be used for intake systems and conveyors.

    Specifications:

    • Diameter:   100mm (4")
    • Axial width:  25mm
    • Hub:  1/2" Inner Hex
    • Inner Material: Molded Plastic in Yellow
    • Outer Material: TPU Polyurethane in Black
    • Outer Material Durometer: 60A
    • Weight: 0.038kg
    • Step File

    5mm Urethane Round Belt x 3M long x 10% stretch

    #76400
    $5.99
    ( 482 In stock)

    The 5mm Round Groove Belt is 3M long and has a 10% stretch. It is also referred to as a U Groove belt.

    • Material - Polyurethane
    • Diameter - 5mm
    • Length - 3m
    • Color - Yellow
    • Stretch factor - 10%
    • Surface - smooth
    • Solid core
    • Open end



    24 Tooth - Sprocket (2 pack)

    #76226-2
    $10.99
    ( 1382 In stock)

    Specifications:

    • Material: 6061-T6 Aluminum
    • Use with #25 Chain
    • Number of teeth: 24
    • Addendum - 52.04mm
    • Dedendum - 45.25mm
    • Pitch - 48.645
    • Width - 2.5mm

    Step file



    30 Tooth Bevel Gear 1 to 1 Set

    #76219-2
    $29.99
    ( 484 In stock)

    Used to change motor to axle motion 90 degrees. This can be used in between the U-channel.

    Specifications:

    • Material: Steel
    • Number of teeth: 30
    • Set of 2 for 1-1 drives
    • Step File

    240mm Low Profile U-Channel

    #76029
    $7.99
    ( 452 In stock)

    The Studica Low Profile U Channel is 3mm thick and has a 48mm x 14mm profile. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.

    Specifications:

    • Material: 6061-T6 Aluminum
    • Thickness - 3mm
    • Height - 14mm
    • Width - 48mm
    • Length - 240mm
    • Hole pattern - 5
    • Step File



    384mm Low Profile U-Channel

    #76026
    $11.99
    ( 459 In stock)

    The Studica Low Profile U Channel is 3mm thick and has a 48mm x 14mm profile. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.

    Specifications:

    • Material: 6061-T6 Aluminum
    • Thickness - 3mm
    • Height - 14mm
    • Width - 48mm
    • Length - 384mm
    • Hole pattern - 8
    • Step File



    Linear Servo RC Actuator 140S-190N

    #75014
    $69.99
    (In stock)

    The Studica Linear Servo RC Actuator 140S-190N is a new Servo motor which has a stroke of 140mm and a max force of 190N. It works the same way as the any standard rotary servo but in a linear movement. It uses the same 2.54mm Dupont 3-Pin Female wire connector and can be controlled with an RC receiver or any device that controls a servo. Includes mounting brackets.
