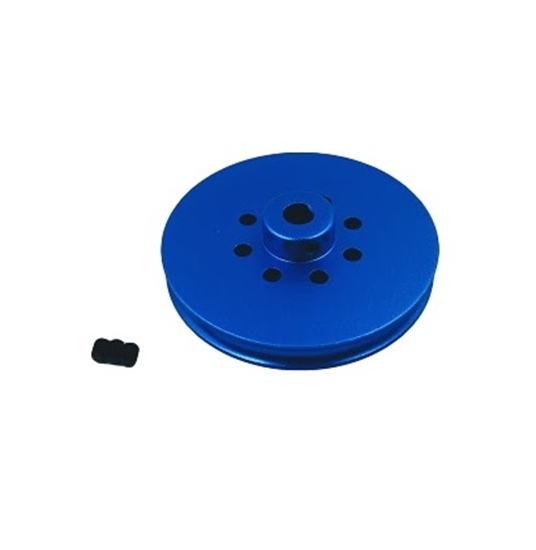

50mm OD Round Groove Pulley

These round groove pulleys are also referred to as U groove pulleys. They are made of 6061-T6 Aluminum with a D-Shaft hole through of 6mm, and 2 set screws for ultimate strength. Use it with the 5mm Round Belt and for gearing up or down combine them with the other round groove pulleys that range from 10mm to 60mm.

Specifications:

• Material: 6061-T6 Aluminum
• Bore: 6mm
• Belt Diameter: 40mm

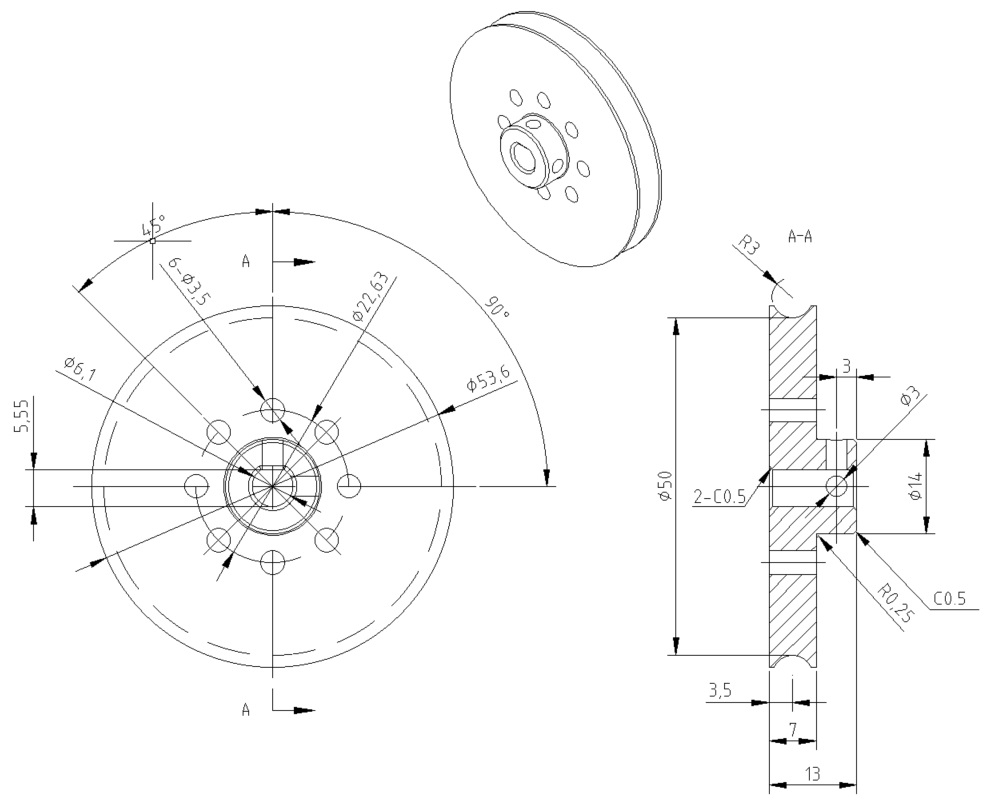

• Step File

These round groove pulleys are also referred to as U groove pulleys. They are made of 6061-T6 Aluminum with a D-Shaft hole through of 6mm, and 2 set screws for ultimate strength. Use it with the 5mm Round Belt and for gearing up or down combine them with the other round groove pulleys that range from 10mm to 60mm.

Specifications:

• Material: 6061-T6 Aluminum
• Bore: 6mm
• Belt Diameter: 30mm
• Step File

These round groove pulleys are also referred to as U groove pulleys. They are made of 6061-T6 Aluminum with a D-Shaft hole through of 6mm, and 2 set screws for ultimate strength. Use it with the 5mm Round Belt and for gearing up or down combine them with the other round groove pulleys that range from 10mm to 60mm.

Specifications:

• Material: 6061-T6 Aluminum
• Bore: 6mm
• Belt Diameter: 20mm
• Step File

The 5mm Round Groove Belt is 3M long and has a 10% stretch. It is also referred to as a U Groove belt.

• Material - Polyurethane
• Diameter - 5mm
• Length - 3m
• Color - Yellow
• Stretch factor - 10%
• Surface - smooth
• Solid core
• Open end

The Studica Flat Beam is 3mm thick and 8mm wide. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.

Specifications:

• Material: 6061-T6 Aluminum
• Thickness - 3mm
• Width - 8mm
• Length - 240mm
• Step File

The Studica Flat Beam is 3mm thick and 8mm wide. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.

Specifications:

• Material: 6061-T6 Aluminum
• Thickness - 3mm
• Width - 8mm
• Length - 432mm
• Step File

The Studica Servo Power Module is a 6V, 60W power injector that enables the use of high-power RC servos. The Servo Power Module passes through input signals unaltered while providing up to 60W of total output power across all eight channels.  The input and output channels accept standard 3-wire, 0.1” pitch, servo/PWM cables.

Features,

• Built in DC-DC converter
• Over-current shutdown
• ESD protection

Specifications,

• Nominal Input Voltage: 12V
• Operational Voltage Range: 6.0V
• Number of Channels: 8
• Max Current for All Channels Combined: 10A
• Total Continuous Power: 60W
• Size: 70mm x 45mm x 16mm
• Step File
