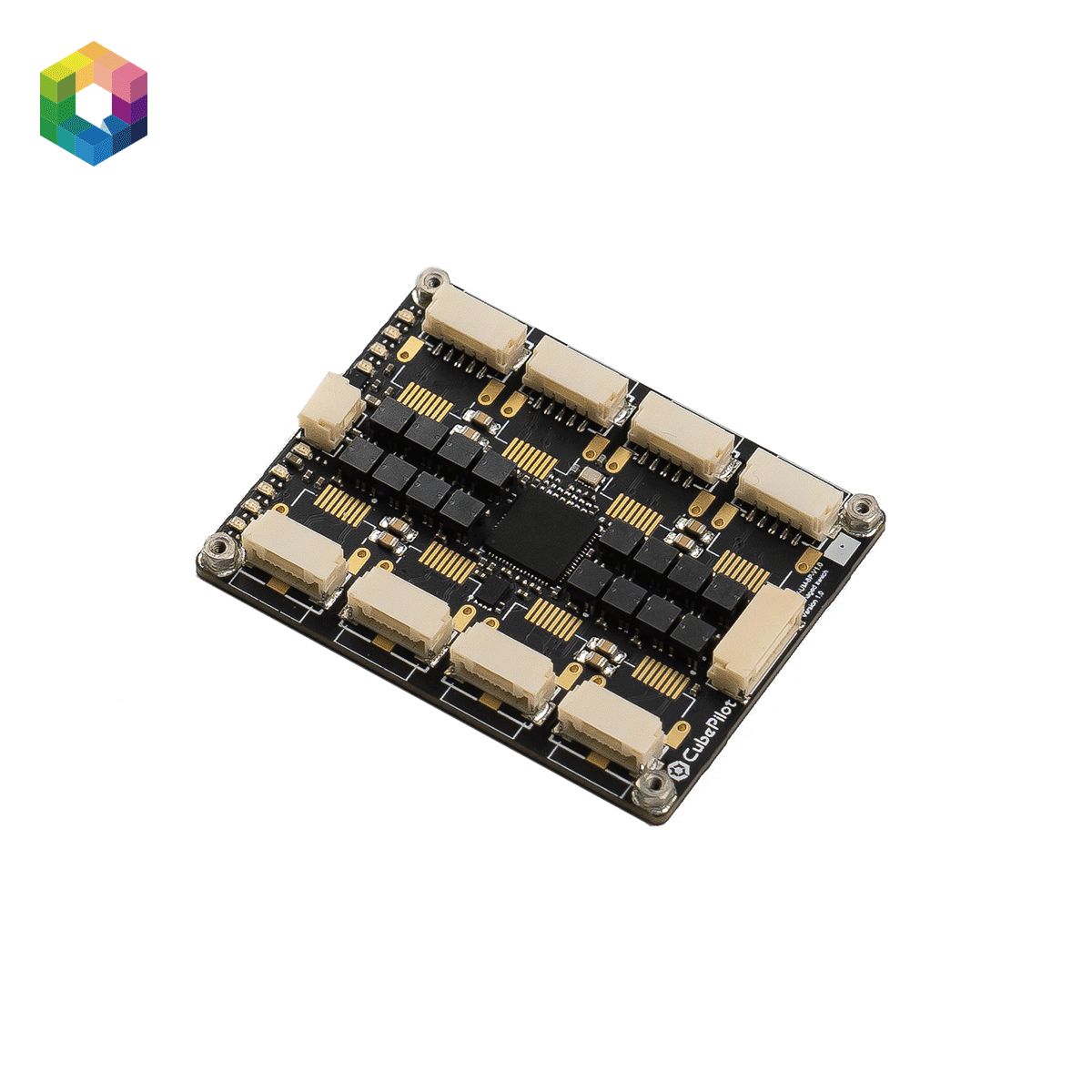

    CubeLAN 8-Port Switch

    The CubeLAN 8-port switch is a miniature Ethernet switch designed for use in space-conscious embedded systems, such as drones and robotics, to connect up to eight Ethernet devices. It is a product of the CubePilot brand.

    MFR Part #: CP-06342
    $60.01
    Key Features and Specifications
    • Port Capacity: Connects up to eight Ethernet devices; a ninth internal port connects to the autopilot (such as Cube Red or CubeNode).
    • Dimensions: Extremely compact, measuring approximately 41.15 x 52.58 mm (or 41 x 52 x 6 mm).
    • Weight: Very lightweight at around 13.5g.
    • Speed: Supports 10/100M Ethernet speeds.
    • Power Input: Operates efficiently on a low power input of 4V - 5.5V DC.
    • Functionality: Offers plug-and-play operation with an Auto MDI-MDIX function, eliminating the need for crossover cables.
    • Connectors: Uses JST SM05B-GHS / TE Connectivity 2294415-1 connectors for Ethernet and JST SM02B-GHS for power
    Target Applications
    This switch is specifically designed for applications where size and weight are critical factors:
    • Unmanned Aerial Vehicles (UAVs) and drones
    • Robotics
    • Industrial automation
    • IoT projects and other embedded systems

    STEM BOT Pro Kit - Parts List

    (Download to View STEM BOT Parts List as PDF)

    Note: 3D CAD files for all parts are available at www.studica.com/studica-robotics-resources

    Controllers included in the STEM BOT Pro Kit:

    • VMX Robotics Controller
      • The Studica Robotics VMX Robotics Controller can be used an a Robot Control System or Vision/Motion processor, supporting Java and C++.  The controller integrates the navX-IMU, Gigabit Ethernet, USB3.0 ports and built-in Wifi and Bluetooth.
      • Highly-integrated, inexpensive, WiFi-enabled, multi-core Linux computing platform with lots of USB IO for expansion.
      • 32-bit ARM Microcontroller incorporating sophisticated I/O and digital communications engines
      • Low-cost MEMs Inertial Measurement Units (IMUs)
      • Powerful software providing rich libraries and tools for developing robot control software in C++, Java
      • CAN bus for high-speed, real-time communication between devices
    • Titan Quad Motor Controller
      • The Studica Robotics Titan Quad Motor Controller is a powerful, 4-channel CAN-based motor controller with a built-in fuse-box (for DC motors up to 20A).
    Key Features and Specifications
    • Port Capacity: Connects up to eight Ethernet devices; a ninth internal port connects to the autopilot (such as Cube Red or CubeNode).
    • Dimensions: Extremely compact, measuring approximately 41.15 x 52.58 mm (or 41 x 52 x 6 mm).
    • Weight: Very lightweight at around 13.5g.
    • Speed: Supports 10/100M Ethernet speeds.
    • Power Input: Operates efficiently on a low power input of 4V - 5.5V DC.
    • Functionality: Offers plug-and-play operation with an Auto MDI-MDIX function, eliminating the need for crossover cables.
    • Connectors: Uses JST SM05B-GHS / TE Connectivity 2294415-1 connectors for Ethernet and JST SM02B-GHS for power
    Target Applications
    This switch is specifically designed for applications where size and weight are critical factors:
    • Unmanned Aerial Vehicles (UAVs) and drones
    • Robotics
    • Industrial automation
    • IoT projects and other embedded systems
