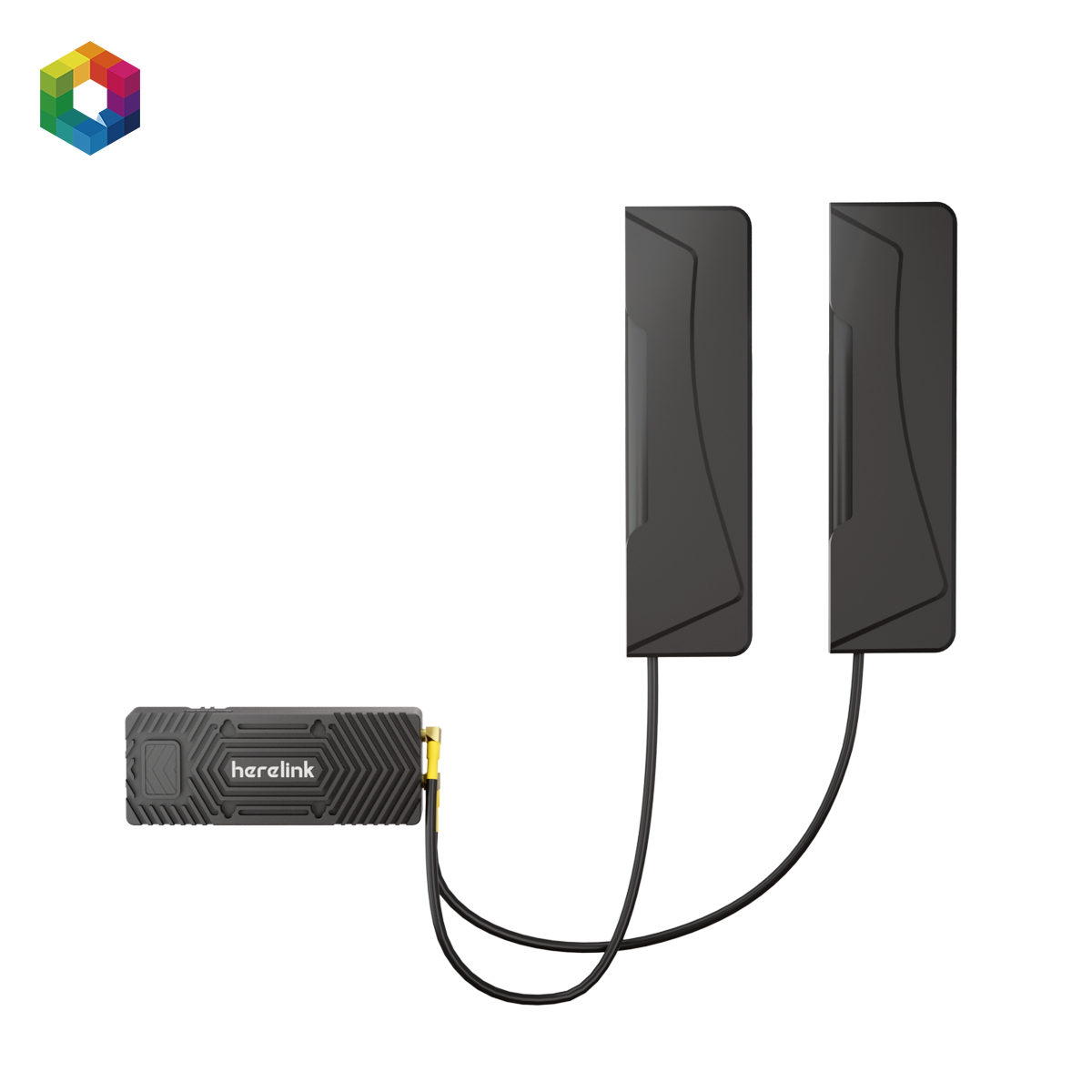

Herelink Air Unit

The Herelink Air Unit is the airborne component of the CubePilot Herelink system, an integrated HD video transmission, telemetry, and RC control system for drones and robotics. It is designed to work with Ardupilot and PX4 flight controllers, transmitting data and video to the Herelink ground controller unit over a 2.4 GHz link.

MFR Part #: HX4-06210

$681.26

Out of stock

Qty:

Specifications
Parts List

Key Features and Specifications (V1.1)

The Herelink Air Unit V1.1 is the latest version and includes several updates over the original.

Transmission Range: Up to 20 km (FCC) or 12 km (CE/SRRC).
Video Transmission: Supports 720p@30fps and 1080p@30/60fps video resolutions via dual micro HDMI inputs.
Latency: Minimum latency of approximately 110ms from input source to ground control screen display.
Connectivity: Features a new Ethernet port, a micro SD card slot, UART, and dual S.bus interfaces for connecting to flight controllers and other peripherals.
Processor: Integrated with an eight-core Pinecone S1 SoC processor (4x 2.2 GHz, 4x 1.4 GHz) and a Mali-T860 GPU.
Power Consumption: Average power consumption is less than 4W.
Compatibility: Supported by both ArduPilot and PX4 flight stacks.
Weight & Dimensions: The V1.1 air unit weighs approximately 98g (with antennas) and measures 78.5 x 30 x 15 mm.

What's in the Box

A standard Herelink Air Unit package typically includes the following items:

1x
Herelink Air Unit
1x Mounting Plate
1x Screw Set
1x Silicone Ring Set
2x Taoglas Antennas (MMCX connectors)
1x Fan
1x Cable Set
1x HDMI Cable
1x Set up tips card

STEM BOT Pro Kit - Parts List

(Download to View STEM BOT Parts List as PDF)

Note: 3D CAD files for all parts are available at www.studica.com/studica-robotics-resources

Controllers included in the STEM BOT Pro Kit:

VMX Robotics Controller
- The Studica Robotics VMX Robotics Controller can be used an a Robot Control System or Vision/Motion processor, supporting Java and C++. The controller integrates the navX-IMU, Gigabit Ethernet, USB3.0 ports and built-in Wifi and Bluetooth.
- Highly-integrated, inexpensive, WiFi-enabled, multi-core Linux computing platform with lots of USB IO for expansion.
- 32-bit ARM Microcontroller incorporating sophisticated I/O and digital communications engines
- Low-cost MEMs Inertial Measurement Units (IMUs)
- Powerful software providing rich libraries and tools for developing robot control software in C++, Java
- CAN bus for high-speed, real-time communication between devices
Titan Quad Motor Controller
- The Studica Robotics Titan Quad Motor Controller is a powerful, 4-channel CAN-based motor controller with a built-in fuse-box (for DC motors up to 20A).

Key Features and Specifications (V1.1)

The Herelink Air Unit V1.1 is the latest version and includes several updates over the original.

Transmission Range: Up to 20 km (FCC) or 12 km (CE/SRRC).
Video Transmission: Supports 720p@30fps and 1080p@30/60fps video resolutions via dual micro HDMI inputs.
Latency: Minimum latency of approximately 110ms from input source to ground control screen display.
Connectivity: Features a new Ethernet port, a micro SD card slot, UART, and dual S.bus interfaces for connecting to flight controllers and other peripherals.
Processor: Integrated with an eight-core Pinecone S1 SoC processor (4x 2.2 GHz, 4x 1.4 GHz) and a Mali-T860 GPU.
Power Consumption: Average power consumption is less than 4W.
Compatibility: Supported by both ArduPilot and PX4 flight stacks.
Weight & Dimensions: The V1.1 air unit weighs approximately 98g (with antennas) and measures 78.5 x 30 x 15 mm.

What's in the Box

A standard Herelink Air Unit package typically includes the following items:

1x
Herelink Air Unit
1x Mounting Plate
1x Screw Set
1x Silicone Ring Set
2x Taoglas Antennas (MMCX connectors)
1x Fan
1x Cable Set
1x HDMI Cable
1x Set up tips card
