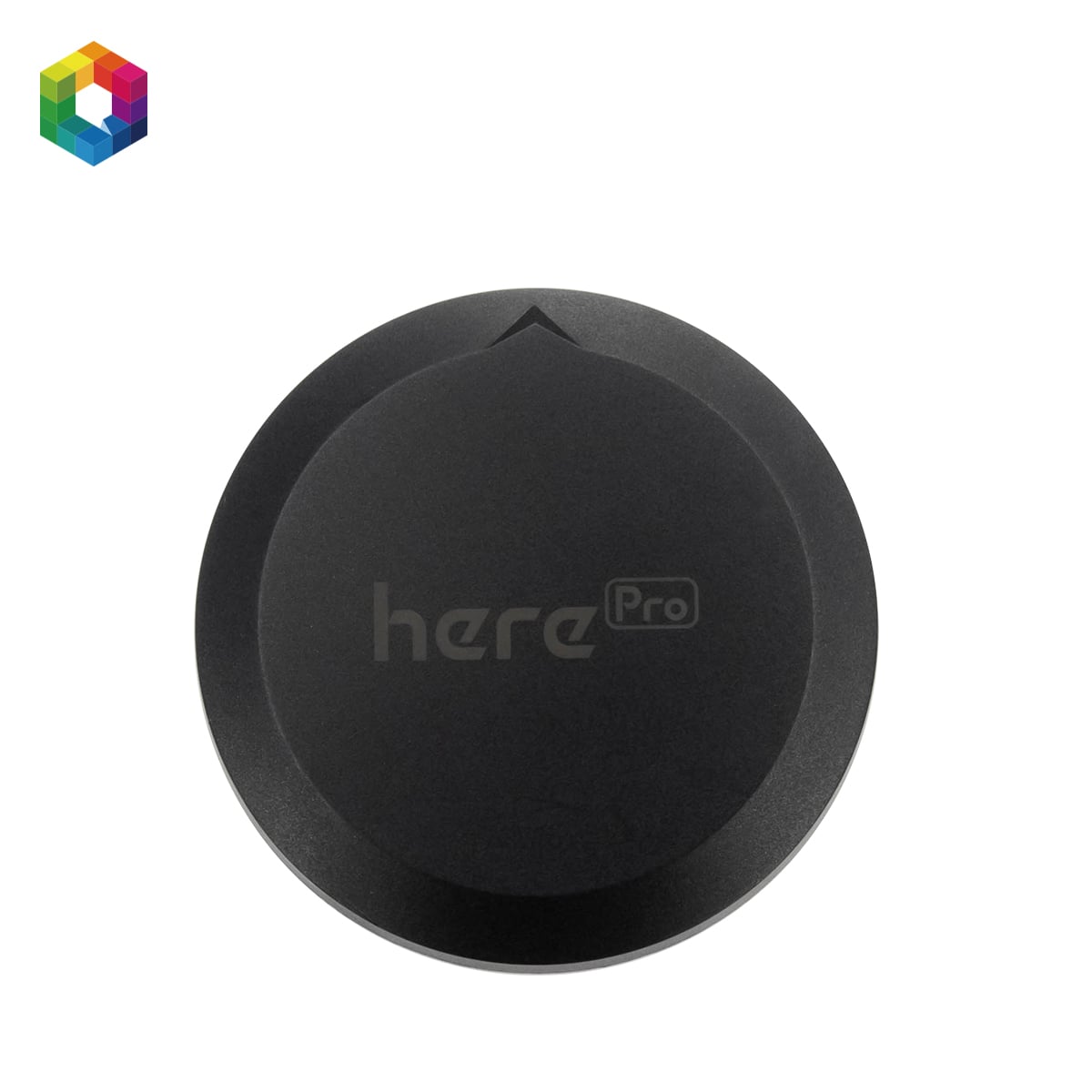

HerePro without iStand

HerePro (without iStand) is a professional-grade, multi-band RTK GNSS navigation module designed for high-precision UAV and robotics applications. This specific package includes the main GPS unit but excludes the iStand mounting hardware, making it suitable for custom integrations where the standard stand is not required.

MFR Part #: HX4-06216

$840.00

Qty:

Specifications
Parts List

Key Specifications and Features

High-Precision GNSS: Equipped with the u-blox F9P module, it supports multi-band RTK for centimeter-level positioning accuracy.
Multi-Constellation Support: Compatible with GPS, GLONASS, Galileo, BeiDou, and QZSS.
Dual-Core Processing: Features a built-in STM32H753 chip for powerful real-time data optimization and high transmission rates via CAN FD.
Dual Functionality: It can act as both an RTK Rover or an RTK Base Station (fixed or moving base modes).
Advanced Hardware: Includes a custom Taoglas multi-band antenna (L1, L2, E5) and a built-in 9-axis IMU for future DGNSS-INS fusing solutions.
Status Indicators: Features a circular LED ring with 50 ProfiLEDs that are programmable via Lua scripting for status and navigation signals.

Physical and Power Details

Weight & Size: The module is compact, weighing 101g and measuring 15 x 78mm.
Power Input: Supports a wide voltage range from 6V to 40V (redundant power input included for safety).
Connectivity: Uses CAN FD and USB Type-C for power and firmware updates.

STEM BOT Pro Kit - Parts List

(Download to View STEM BOT Parts List as PDF)

Note: 3D CAD files for all parts are available at www.studica.com/studica-robotics-resources

Controllers included in the STEM BOT Pro Kit:

VMX Robotics Controller
- The Studica Robotics VMX Robotics Controller can be used an a Robot Control System or Vision/Motion processor, supporting Java and C++. The controller integrates the navX-IMU, Gigabit Ethernet, USB3.0 ports and built-in Wifi and Bluetooth.
- Highly-integrated, inexpensive, WiFi-enabled, multi-core Linux computing platform with lots of USB IO for expansion.
- 32-bit ARM Microcontroller incorporating sophisticated I/O and digital communications engines
- Low-cost MEMs Inertial Measurement Units (IMUs)
- Powerful software providing rich libraries and tools for developing robot control software in C++, Java
- CAN bus for high-speed, real-time communication between devices
Titan Quad Motor Controller
- The Studica Robotics Titan Quad Motor Controller is a powerful, 4-channel CAN-based motor controller with a built-in fuse-box (for DC motors up to 20A).

Key Specifications and Features

High-Precision GNSS: Equipped with the u-blox F9P module, it supports multi-band RTK for centimeter-level positioning accuracy.
Multi-Constellation Support: Compatible with GPS, GLONASS, Galileo, BeiDou, and QZSS.
Dual-Core Processing: Features a built-in STM32H753 chip for powerful real-time data optimization and high transmission rates via CAN FD.
Dual Functionality: It can act as both an RTK Rover or an RTK Base Station (fixed or moving base modes).
Advanced Hardware: Includes a custom Taoglas multi-band antenna (L1, L2, E5) and a built-in 9-axis IMU for future DGNSS-INS fusing solutions.
Status Indicators: Features a circular LED ring with 50 ProfiLEDs that are programmable via Lua scripting for status and navigation signals.

Physical and Power Details

Weight & Size: The module is compact, weighing 101g and measuring 15 x 78mm.
Power Input: Supports a wide voltage range from 6V to 40V (redundant power input included for safety).
Connectivity: Uses CAN FD and USB Type-C for power and firmware updates.
